Chain hoists are indispensable lifting devices used across manufacturing, construction, mining, logistics, and energy sectors. They allow workers to lift, position, and lower heavy loads with precision while reducing human effort and improving workplace safety. However, chain hoists come in several types—manual, electric, and pneumatic—each designed with specific advantages and trade-offs. Choosing between them requires careful analysis of efficiency, reliability, and cost-effectiveness depending on the operating environment. This essay explores in depth how these three categories differ, and how industries weigh their options.

1. Overview of Chain Hoist Types

• Manual Chain Hoists (Hand Chain Blocks):
  Operated by pulling a hand chain to rotate gears and lift loads. They are simple, compact, and do not require an external power source.

• Electric Chain Hoists:
  Powered by electric motors, they automate lifting and lowering, making them faster and suitable for repetitive or high-volume operations.

• Pneumatic (Air) Chain Hoists:
  Powered by compressed air, these are often chosen in hazardous or explosive environments where electricity may be unsafe, or where continuous duty is required.

Each type has unique strengths and limitations, which manifest in efficiency, reliability, and cost-effectiveness across different industries.

2. Efficiency: Speed, Energy, and Workload

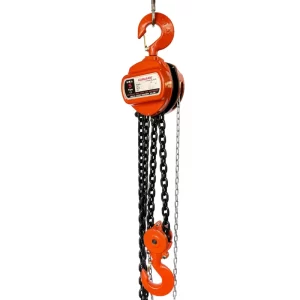

Manual Hoists

Efficiency in manual hoists is limited by human effort. They are best for:

• Low-frequency lifting tasks.

• Loads typically under 20 tons (although larger exist).

• Situations where precision rather than speed is prioritized.

Advantages:

• Minimal setup and no external power requirements.

• Suitable for remote areas without electricity or air supply.

Limitations:

• Slower lifting speeds compared to powered hoists.

• Operator fatigue becomes a factor during frequent or heavy lifting.

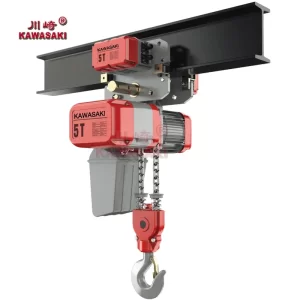

Electric Hoists

Electric hoists significantly improve efficiency:

• Lift speeds often 4–8 times faster than manual hoists.

• Continuous operation possible with minimal human intervention.

• Smooth and precise control with options for variable speed.

They excel in manufacturing assembly lines, logistics centers, and construction where time and productivity are crucial.

Energy Efficiency:

• Electricity is widely available and relatively low-cost.

• Modern hoists integrate regenerative braking and energy-saving motors.

Pneumatic Hoists

Pneumatic hoists offer unique efficiency benefits:

• Extremely high duty cycles—they can run continuously without overheating.

• Faster lifting than manual, and often comparable to electric.

• Smooth control in harsh environments (dusty, wet, or chemically aggressive).

However, compressed air systems are energy-intensive, often requiring more input power than electricity for the same lifting output. Efficiency depends heavily on the central air supply system’s design and maintenance.

3. Reliability: Durability and Operational Stability

Manual Hoists

Reliability is one of their strongest features:

• Simple mechanical design with minimal components prone to failure.

• Operate consistently in harsh environments (extreme cold, heat, or dusty conditions).

• Easy to maintain with routine lubrication and inspection.

Failure risks are low if proper load ratings are respected.

Electric Hoists

Reliability depends on electrical infrastructure and motor design:

• Vulnerable to power fluctuations, voltage drops, or unstable grids (common in developing regions).

• Require regular inspection of motors, wiring, and control systems.

• Modern designs include overload protection, limit switches, and electronic monitoring to enhance reliability.

In well-maintained industrial settings, they offer excellent reliability, but harsh outdoor conditions may expose weaknesses.

Pneumatic Hoists

Pneumatic hoists are highly reliable in extreme environments:

• No risk of sparking, making them safe in explosive atmospheres (oil & gas, chemical plants).

• Resistant to moisture and dust, with fewer electrical components to fail.

• Long operational life due to air-powered motors that resist overheating.

The main reliability challenge is the quality of compressed air—contaminants like water or oil can reduce performance and increase wear.

4. Cost-Effectiveness: Purchase, Operation, and Lifecycle Costs

Manual Hoists

• Initial Cost: Lowest among the three.

• Operating Cost: Essentially free aside from human labor.

• Maintenance Cost: Minimal, mainly lubrication and occasional chain inspection.

• Lifecycle Cost: Very favorable for light, occasional use.

Industries with low lifting frequency or tight budgets find them most cost-effective.

Electric Hoists

• Initial Cost: Higher than manual.

• Operating Cost: Electricity is relatively affordable, but costs accumulate with frequent use.

• Maintenance Cost: Moderate—motors, electrical systems, and gearboxes require periodic servicing.

• Lifecycle Cost: Attractive for industries where time savings and productivity offset higher upfront expenses.

Over the long term, electric hoists are cost-effective for high-frequency lifting applications.

Pneumatic Hoists

• Initial Cost: Comparable to or higher than electric hoists.

• Operating Cost: High due to energy losses in air compression (inefficient compared to electricity).

• Maintenance Cost: Moderate to high—compressed air systems need filters, lubrication, and regular servicing.

• Lifecycle Cost: Justifiable in environments where safety or continuous operation outweighs energy inefficiency.

Industries such as offshore drilling and chemical plants accept higher costs for the reliability and safety benefits.

5. Industry-Specific Comparisons

Manufacturing

• Electric hoists dominate due to speed, automation, and integration with conveyors and robotics.

• Manual hoists are limited to maintenance tasks.

• Pneumatic hoists are niche, used in areas requiring spark-free operation.

Construction

• Manual hoists are popular for short-term projects with limited budget or power access.

• Electric hoists are preferred for tower cranes and fixed installations where speed is needed.

• Pneumatic hoists are rarely used except in specialized high-risk construction zones.

Oil & Gas

• Pneumatic hoists are the standard due to explosion-proof requirements.

• Manual hoists are used for backup or infrequent maintenance.

• Electric hoists are avoided unless explosion-proof versions are available.

Mining

• Pneumatic and manual hoists dominate underground environments.

• Electric hoists face challenges due to dust and unreliable power supply.

Logistics & Warehousing

• Electric hoists excel, boosting efficiency in repetitive lifting.

• Manual hoists see occasional use for low-duty work.

• Pneumatic hoists are unnecessary in most warehouses.

6. Safety Implications

• Manual Hoists: Safety depends heavily on operator discipline; fatigue increases risk of mishandling.

• Electric Hoists: Offer built-in overload protection, emergency stop, and controlled lowering, enhancing safety.

• Pneumatic Hoists: Safest in explosive or hazardous areas, but compressed air leaks pose additional risks.

7. Environmental and Sustainability Considerations

• Manual hoists: Eco-friendly, no energy consumption.

• Electric hoists: Energy efficient but depend on electricity source (renewable vs fossil fuel).

• Pneumatic hoists: Least energy-efficient due to air compression losses, though reliable recycling of compressed air can mitigate waste.

8. Decision-Making Factors for Industry

When industries choose between manual, electric, and pneumatic hoists, they weigh:

1. Load capacity and lifting frequency.

2. Power availability and infrastructure.

3. Environmental conditions (explosive, dusty, wet, or remote).

4. Budget and lifecycle cost priorities.

5. Safety and compliance with regulations.

9. Future Trends

• Manual Hoists: Will remain relevant in budget-sensitive and remote projects. Lighter materials and ergonomic improvements are expected.

• Electric Hoists: Increasing adoption of smart controls, IoT sensors, and predictive maintenance will further improve efficiency and reliability.

• Pneumatic Hoists: Likely to remain niche but crucial for hazardous industries, with advances in air management reducing energy losses.

10. Conclusion

Manual, electric, and pneumatic chain hoists each serve distinct roles in global industries.

• Manual hoists are the simplest, most cost-effective for occasional or low-duty lifting.

• Electric hoists deliver the best efficiency and productivity, especially where power is stable and speed is essential.

• Pneumatic hoists, though costlier to operate, are indispensable in hazardous, continuous-duty environments where safety and durability override efficiency concerns.

No single hoist type is universally superior; the optimal choice depends on balancing efficiency, reliability, and cost-effectiveness within the operational context. As industries move toward automation and stricter safety standards, electric and pneumatic hoists will likely gain ground, but manual hoists will continue to provide indispensable value in niche and resource-constrained settings.
