Lifting operations are integral to industries such as construction, steel fabrication, shipbuilding, logistics, and warehousing. At the heart of these operations are lifting clamps—mechanical devices that grip, hold, and move loads of various shapes and sizes. Unlike ropes, slings, or chains that distribute force broadly, clamps exert localized gripping forces, making them uniquely suited for handling steel plates, beams, drums, and other heavy materials. However, the type of clamp selected—vertical, horizontal, beam, drum, or specialty designs—has profound implications on three critical aspects: load stability, operational efficiency, and operator safety. This essay explores how different clamp types influence these factors, highlighting their applications, advantages, and limitations in real-world lifting scenarios.

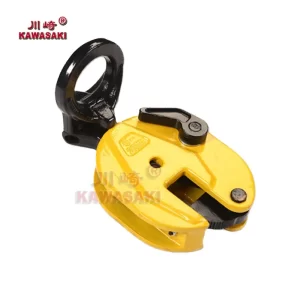

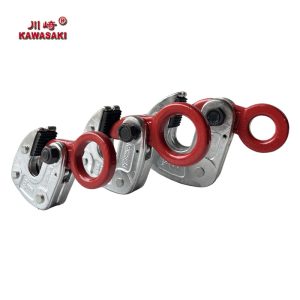

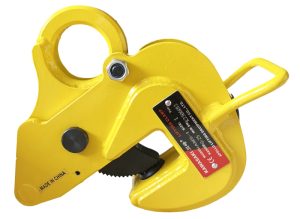

1. Vertical Lifting Clamps: Ensuring Upright Stability
Function and Use
Vertical clamps are designed to lift and move steel plates or similar flat loads in an upright orientation. They feature serrated jaws and locking mechanisms that grip the load securely when lifting force is applied.
Influence on Load Stability
-
Advantage: By holding plates vertically, these clamps reduce the footprint required for material handling, which is crucial in tight storage areas or fabrication shops.
-
Limitation: Plates with surface coatings, rust, or non-standard thicknesses may compromise the grip, raising the risk of slippage. Stability depends heavily on proper jaw engagement.
Efficiency Considerations
-
Pros: Plates can be lifted directly from stacks without repositioning, minimizing handling time.
-
Cons: Operators may need multiple clamps and a spreader bar for larger plates, slightly reducing efficiency compared to magnetic or vacuum lifters.
Operator Safety
-
Safety locks prevent accidental release, but misalignment during attachment can endanger workers.
-
Plates may sway during vertical lifting, requiring controlled crane operation to avoid collisions.
2. Horizontal Lifting Clamps: Spreading Stability Across Plates
Function and Use
Horizontal clamps are paired or used in multiples to lift plates laid flat. They grip at both edges and maintain the plate in a horizontal position throughout the lift.
Influence on Load Stability
-
Advantage: When used in sets with proper spacing, horizontal clamps offer excellent stability, minimizing bending stress on large plates.
-
Limitation: Unequal load distribution or using fewer clamps than required can cause tilting or deformation of thin plates.
Efficiency Considerations
-
Pros: Ideal for transporting large plates directly to cutting tables or processing lines.
-
Cons: Setup requires more planning, as operators must attach clamps symmetrically to maintain balance.
Operator Safety
-
Using multiple clamps increases redundancy, lowering the chance of catastrophic failure if one clamp slips.
-
However, attaching clamps to sharp-edged plates exposes operators to cuts, necessitating protective gloves and careful handling.
3. Beam Clamps: Anchoring and Lifting Long Members
Function and Use
Beam clamps are designed for lifting or suspending structural steel beams (I-beams, H-beams, or girders). They grip the flanges securely, often with screw-adjust mechanisms.
Influence on Load Stability
-
Advantage: Beam clamps maintain the load’s orientation during lifting, ensuring beams do not twist or roll, which is critical in structural assembly.
-
Limitation: Stability depends on the clamp’s proper adjustment to the beam’s flange width. Loose fitting can result in shifting during lifts.
Efficiency Considerations
-
Pros: Quick to attach and remove, making them efficient for construction sites where beams must be lifted repeatedly.
-
Cons: Limited flexibility—beam clamps work best only with standardized structural members.
Operator Safety
-
Beam clamps reduce the need for slings wrapped around beams, which can slip or shift dangerously.
-
Misuse—such as overloading or attaching to damaged flanges—can lead to sudden release, a significant hazard.
4. Drum Lifting Clamps: Stabilizing Cylindrical Loads
Function and Use
Drum clamps handle cylindrical loads such as oil drums, chemical barrels, or tanks. They grip either the rim or the body depending on the design.
Influence on Load Stability
-
Advantage: Specialized gripping ensures that cylindrical loads remain upright, preventing spillage or imbalance.
-
Limitation: Poorly sealed or deformed drums may not sit securely, risking leakage or load drop.
Efficiency Considerations
-
Pros: Drums can be lifted directly from pallets or floors without tilting, streamlining warehouse workflows.
-
Cons: Clamp adjustments may be required for non-standard drum sizes, slowing operations.
Operator Safety
-
Upright handling minimizes the risk of hazardous spills, particularly in chemical industries.
-
However, if not properly centered, drums may swing excessively, creating collision hazards.
5. Specialty Lifting Clamps: Tailoring Stability to Unique Loads
Beyond the common types, there are clamps designed for pipes, rails, stone slabs, and prefabricated concrete.
Influence on Load Stability
-
Customized designs (e.g., pipe clamps with padded jaws) ensure better stability than generic clamps for irregular shapes.
-
Improper clamp selection, however, can destabilize loads that are non-uniform or fragile.
Efficiency Considerations
-
Tailored clamps reduce the need for improvised solutions, increasing process speed.
-
The drawback is limited versatility—each specialty clamp serves a narrow purpose.
Operator Safety
-
Using the right clamp reduces risks associated with makeshift lifting methods, which often compromise safety.
-
Still, operators must be trained for each unique clamp type, adding to learning curves in multi-purpose facilities.
6. Load Stability as the Central Concern
Across all clamp types, stability is paramount. A stable load prevents oscillation, slippage, or sudden drops, which are leading causes of accidents.
-
Vertical clamps risk instability if plates are uneven.
-
Horizontal clamps distribute stability but depend on symmetrical attachment.
-
Beam clamps ensure orientation but require proper adjustment.
-
Drum clamps maintain upright balance but can struggle with damaged containers.
The common theme is that stability depends not only on clamp design but also on correct usage.
7. Efficiency Trade-offs Between Clamp Types
Efficiency in lifting operations is often measured by speed, reliability, and adaptability:
-
Vertical clamps excel in tight spaces.
-
Horizontal clamps are efficient for processing lines.
-
Beam clamps are fast in repetitive construction tasks.
-
Drum clamps streamline warehouse handling.
-
Specialty clamps eliminate the need for improvisation but at the expense of flexibility.
Thus, efficiency depends on matching clamp type to task environment rather than relying on a universal tool.
8. Operator Safety Considerations
Operator safety is deeply intertwined with both stability and efficiency:
-
Misapplication of clamps is a major risk factor—e.g., using a vertical clamp where a horizontal one is required.
-
Safety locks, redundant clamps, and training programs are essential to prevent accidents.
-
Human error, such as improper attachment, can negate even the best clamp designs.
Industries increasingly adopt smart clamps with load sensors and indicators that confirm secure attachment, thereby enhancing safety.
9. The Role of Standards and Best Practices
International standards (ASME B30.20, EN 13155, ISO 12100) govern clamp design, testing, and safe usage. Adhering to these ensures that:
-
Load stability is tested under dynamic conditions.
-
Safety factors are built into rated capacities.
-
Operators follow standardized attachment procedures.
Best practices, such as using spreader beams with multiple clamps for large plates, or inspecting jaws before each lift, further reinforce safe and efficient use.
10. Future Directions: Smart and Adaptive Clamps
The future of lifting clamps lies in:
-
Automation: Integration with robotic cranes for hands-free attachment.
-
Sensor technology: Real-time load monitoring, grip verification, and warning systems.
-
Adaptive designs: Clamps capable of handling multiple load geometries without manual adjustment.
These innovations aim to reduce operator risk, improve load stability, and streamline efficiency in increasingly complex lifting environments.
Conclusion
The type of lifting clamp—vertical, horizontal, beam, drum, or specialty—directly shapes the stability of the load, the efficiency of the process, and the safety of the operator. Vertical clamps excel in confined storage spaces but demand precise jaw engagement; horizontal clamps provide stability across large plates but require symmetry; beam clamps ensure orientation for structural members yet depend on correct adjustment; drum clamps stabilize cylindrical containers but face limitations with damaged loads. Specialty clamps address unique handling challenges but often at the cost of versatility.
Ultimately, there is no single “best” clamp—the optimal choice depends on the load’s geometry, the environment, and the safety requirements of the task. By aligning clamp type with scenario, enforcing standards, and embracing innovations, industries can ensure stable, efficient, and safe lifting operations.
