Introduction
In modern overhead lifting systems, Apollo beam trolleys play an important role in supporting and moving loads in a secure and efficient manner. These components act as the link between the hoist and the beam. They allow horizontal movement. And they keep the load stable. Proper setup and regular care of a beam trolley are more than basic steps. In fact, they are essential for safety, longer equipment life, and smooth operation in various work environments. A trolley that is out of line or not maintained can cause uneven weight spread. It can also lead to early wear. Or it might result in total breakdown.
What Is a Beam Trolley and How Does It Work
A beam trolley is a device designed to run along the edge of an I-beam or crane beam. It supports a hoist and the load below it. The trolley lets the hoist move sideways across the beam span without hand adjustments. Therefore, it is vital in places like factories, storage areas, shipyards, and building sites. There, materials need to be raised and carried easily. Beam trolleys work with both electric and manual hoists. The link between trolley and hoist means heavy loads can move sideways with little friction. In an overhead lifting setup, this pair boosts workflow. And it cuts risks from hand handling.
Types of Kawasaki Beam Trolleys by Apollo
Apollo offers a range of reliable Kawasaki beam trolleys suited for different job needs. Each type provides unique benefits based on weight limits, control accuracy, and work settings.
Plain / Push Type Beam Trolley (e.g., Kawasaki AP / AG series)
This is the basic model. It is pushed by hand along the beam by pulling the load or chain block. It works well for short distances or light tasks where powered movement is not required.
Geared Beam Trolley (e.g., Kawasaki GCL / VG series)
The geared version has a hand chain connected to gears that turn the trolley wheels. This setup gives workers better control over movement. It is useful when placing heavy loads with care. These units are frequently paired with manual hoists for precise positioning. Capacities usually span from 0.5t to 30t according to the specific model.
Adjustable / Clamp Beam Trolley (e.g., Kawasaki TBC / TBE series)
These trolleys have adjustable or clamp features to fit different beam sizes and shapes. They are often used in areas with various beam types or for jobs that need firm holding and flexibility. Each type fits certain goals. For example, plain types suit simple use. Geared ones help with exact control. And adjustable or clamp types offer wide use across beams.
Step-by-Step Guide to Installing a Beam Trolley
Setting up a beam trolley the right way is crucial for safe use. Here is a helpful step-by-step guide that workers can follow:
- Check Beam Width and Load Capacity: Confirm that the beam’s flange width matches the trolley’s adjustment range and that both meet the rated load capacity requirements.
- Adjust Trolley Side Plates: Adjust side plates or screw hangers symmetrically so they fit snugly on both sides of the beam flange without excessive clearance.
- Mount the Trolley onto the Beam: Carefully lift and position the trolley onto the beam using proper lifting tools—avoid hammering or forcing components into place.
- Secure Suspension Components: Ensure all bolts, nuts, and locking pins are tightened according to manufacturer specifications.

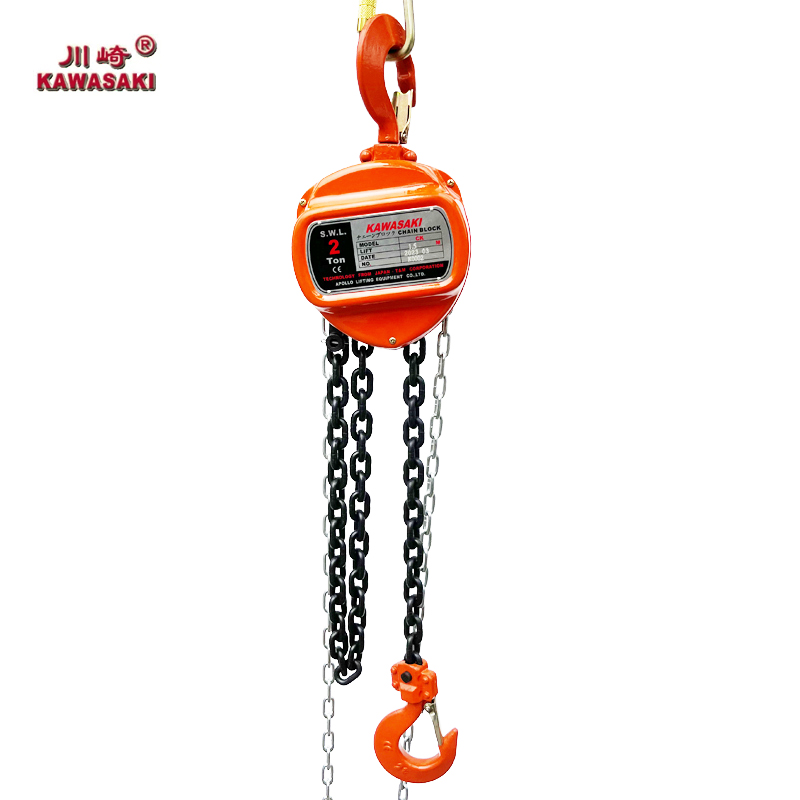

- Install the Hoist onto the Trolley: Attach either an electric or manual hoist securely using approved suspension hooks or shackles.
- Perform Load and Movement Tests: Conduct initial movement tests without load to check rolling smoothness; then perform a static load test at 125% of rated capacity as per standard industrial practice.
Safety Checks Before Operation
Before starting any overhead lifting system, doing full safety checks prevents possible accidents:
- Beam Alignment: Verify that beams are straight and level to prevent uneven wheel wear or derailment.
- Wheel Contact: Ensure all wheels make full contact with the flange surface.
- Bolt Tightness: Inspect every fastener; loose bolts can cause vibration or instability during operation.
- Load Test Procedures: Conduct controlled test lifts before actual use to confirm stability under weight.
These checks should be recorded as part of normal safety rules for work.
Beam Trolley Maintenance Tips
Regular care greatly extends equipment life. For Kawasaki beam trolleys by Apollo in tough spots like making plants or shipping centers, workers should use this list:
- Inspect wheels and bearings regularly for wear or damage.
- Lubricate moving parts using appropriate grease at intervals recommended by manufacturers.
- Examine suspension parts like pins or yokes for deformation.
- Check contact surfaces between wheel flanges and beams for scoring or corrosion.
Kawasaki brand lifting equipment undergoes strict testing before leaving the factory. This high standard applies equally to maintenance of our Kawasaki products. Steady checks ensure steady performance that matches what was tested in production.
Common Installation Mistakes to Avoid
Even skilled installers sometimes miss small points that affect long-term dependability:
- Incorrect adjustment for beam width leads to skewed travel paths.
- Overloading beyond rated capacity stresses bearings and axles prematurely.
- Poor alignment between hoist hook centerline and trolley axis causes side loading on wheels.
- Neglecting lubrication results in jerky motion or noise during travel.
Avoiding these errors saves time on later fixes. It also keeps work in line with safety rules.
Why Choose Kawasaki Beam Trolleys from Apollo
Kawasaki beam trolleys from Apollo are notable for strong design that focuses on toughness, flexibility, and fit with various hoists in pro settings. They are made from good steel parts treated against rust. This is needed in work areas with damp air or chemical fumes. Main gains include:
- Smooth rolling action minimizing operator effort
- Compatibility with both electric chain hoists and manual chain blocks
- Long service life under continuous duty cycles
Hangzhou Apollo Lifting Equipment Co., Ltd., a branch with technical support from Taiwan HSY International Group (established in 1986), has over 30 years of expertise in lifting equipment manufacturing. Our products have passed ISO9001 quality system certification and European CE/GS safety certification. These reflect stringent quality assurance across all Kawasaki lifting solutions. With rich experience in manufacturing and quality control, Apollo is committed to delivering reliable Kawasaki overhead lifting systems trusted by professionals worldwide.
Conclusion
When set up and cared for properly, Kawasaki beam trolleys by Apollo give top dependability in overhead lifting systems. They support tasks from storage lines to heavy making shops. For more technical specifications or a custom quote, please contact us today.
FAQs
Q1: What beam sizes are compatible with beam trolleys?
A: Most Kawasaki beam trolleys by Apollo feature adjustable side plates or screw mechanisms, allowing them to fit a wide range of I-beam widths commonly found in industrial settings.
Q2: How much weight can a beam trolley support?
A: The capacity depends on the model (e.g., from 0.5t to 30t in geared types); each unit is clearly rated according to international standards ensuring safe use within specified limits.
Q3: How often should a beam trolley be inspected?
A: Routine visual checks should occur weekly in active facilities while comprehensive maintenance including lubrication should be performed quarterly or after every 500 hours of operation.
Q4: Can beam trolleys be used with electric hoists?
A: Yes, Kawasaki designs its trolleys for seamless integration with both electric chain hoists and manual models depending on application requirements.
Q5: What are signs that a beam trolley needs maintenance?
A: Unusual noise during travel, difficulty moving loads smoothly, visible wear on wheels or bearings—all indicate it’s time for servicing before further use.
