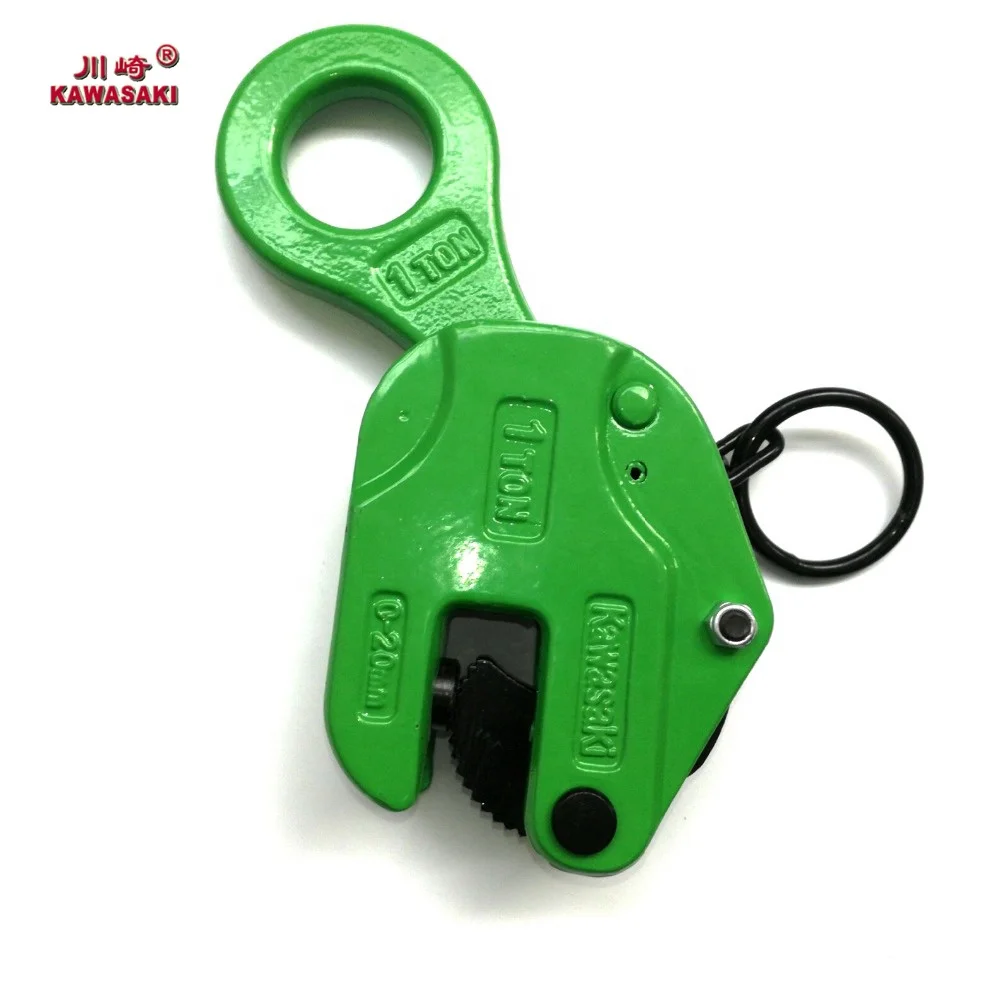

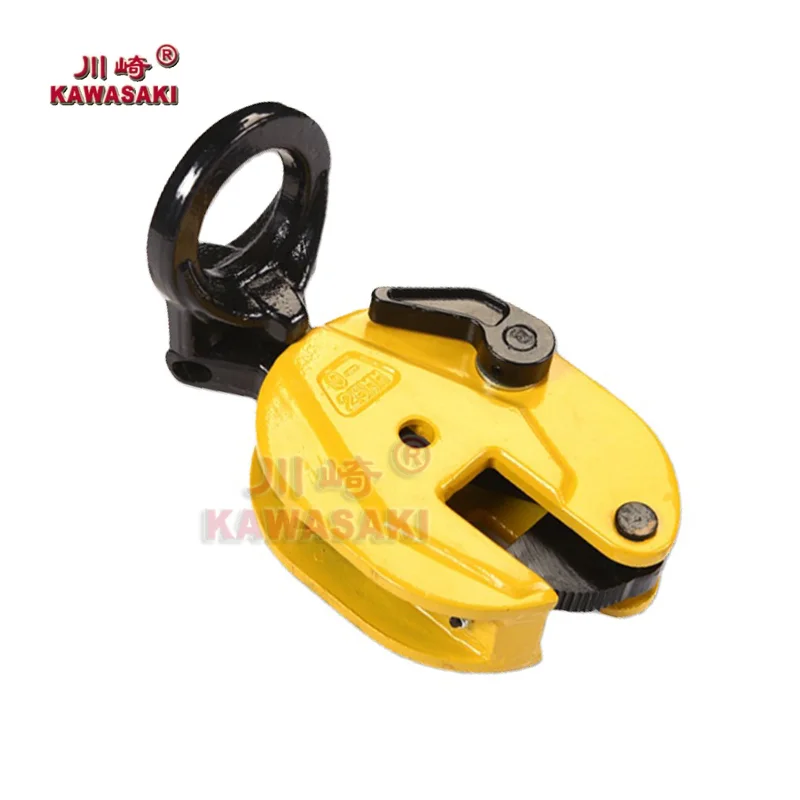

What Are the Main Functional Parts and Mechanisms of Vertical Lifting Clamps?
Vertical lifting clamps are made to pick up heavy steel plates and hold them straight up. They’ve got a few key parts: a tough frame, jaws or cams that grab the load, a shackle that hooks to a crane, and a lock to keep everything safe. The jaws act like strong hands, squeezing harder when the load gets heavier, just like you’d hold a heavy bag tighter so it doesn’t slip.
When you start lifting, a spring inside makes the jaws dig into the plate. This keeps the clamp stuck tight, even with super heavy stuff. The heavier the load, the stronger it holds, which is perfect for lifting straight up where stuff could fall if it slips.
Cool clamps have auto-locks that snap on when you lift or lower. These locks stop oops moments and keep things safe in busy spots, like shipyards where big plates get moved all day long.
Where Are Vertical Lifting Clamps Typically Used?
You’ll spot vertical lifting clamps in neat places like shipyards, construction zones, or factories that build huge machines. Their big job is to lift flat steel plates from piles or racks onto tables or trucks.
On construction sites, they help set up giant steel beams or panels for buildings. In shipyards, they move massive steel sheets to make ships. They’re also super handy for loading plates onto machines like CNC cutters, keeping everything nice and straight.
These clamps are great for tricky or big plates, keeping them upright so work goes faster and stays safe, like a trusty helper on the job.
What Safety Measures Should You Follow While Using Vertical Lifting Clamps?
Safety is a huge deal when lifting heavy stuff. Always pick a clamp that can handle way more weight than your load. Before you use it, check the jaws and cams for scratches or wear to make sure they grab super tight.
Make sure the clamp locks onto the plate completely before you lift. Don’t try to lift anything heavier than the clamp’s limit, or it might break and cause trouble. Also, don’t tug the load sideways—most clamps are only built for straight-up lifts.
Check the lock every time to make sure it’s working right. Lots of clamps have auto-locks that kick in when you lift, but it’s smart to peek at them yourself to be extra safe.
How Do Load Characteristics Influence Clamp Selection?
Choosing the right clamp means knowing all about your load. This makes sure the clamp fits the job like a glove and keeps everyone safe.
Why Is It Important to Evaluate Load Weight and Center of Gravity?
The weight of your load picks which clamp you need. If you overload it, the clamp might break, and that’s super risky for workers. Also, think about the load’s balance spot, called the center of gravity. If it’s off, the load could tip or slip, like a wobbly stack of books.
Line up the clamp with the balance spot to keep things steady. For odd-shaped loads, use two clamps with a bar to spread the weight, like two kids keeping a seesaw level.
How Do Surface Conditions and Material Types Affect Clamp Performance?
The surface of your load is a big deal. Smooth or greasy plates are super slippery, so you need clamps with toothy jaws that grip like a dog with a bone. If the plate’s dirty, clean it first so the clamp holds tight.
The material’s toughness matters too. Some clamps are great for soft steel, while others can handle hard metals without scratching them. Picking the right clamp keeps your load safe and looking good.
What Role Does Load Geometry Play in Grip Reliability?
The shape and thickness of your load change how well the clamp holds. Flat, even plates are easy to grab, but weird shapes or super thin sheets need special jaws. Thin plates might bend if the jaws are too small, so use wide ones instead.
If your plate has curvy edges or holes, you might need extra stuff, like slings, to keep it steady, like tying a kite string to keep it from wobbling.
How Do You Determine Clamp Capacity and Working Load Limit (WLL)?
The Working Load Limit (WLL) shows how much weight a clamp can lift safely. It’s one of the biggest things to check when picking a clamp.
Why Is Rated Capacity Critical in Heavy-Duty Lifting Operations?
The rated capacity keeps lifting safe and sound. If you go over the WLL, the clamp might snap, dropping the load and causing a big mess. Always pick a clamp with a WLL higher than your heaviest load, just to be sure.
APOLLO’s clamps get tested like crazy before they leave the factory. They check the weight limits and safety so you can trust their WLL numbers when you choose a clamp.
What Are Common Safety Factor Standards in Vertical Applications?
Safety rules say clamps should hold 4 to 5 times their WLL in tests. So, a clamp with a 2-ton WLL should handle 8–10 tons before breaking. This makes things super safe on the job, following rules like ISO or ASME.
How Does Jaw Design Affect Material Compatibility?
The jaws decide if a clamp can grab your load without slipping or messing it up.
Which Jaw Types Work Best With Different Surface Finishes?
For rough steel plates, like ones straight from a mill, toothy jaws hold on tight without slipping. But for shiny or coated plates, like stainless steel, use jaws with soft pads to avoid scratches, like wrapping a fragile toy in a soft blanket.
When Should You Choose Between Hardened Steel Versus Soft Gripping Jaws?
Hard steel jaws are tough and last forever but might mark up soft metals. Soft jaws, made of stuff like plastic or rubber, are gentler but wear out quicker. Use hard jaws for rough jobs and soft ones for delicate plates.
What Locking Features Enhance Operator Safety During Use?
Locks are like safety belts for clamps—they keep the load from falling if something goes wrong.
How Do Automatic Locking Systems Improve Security During Lifts?
Auto-locks snap on as soon as you start lifting. You don’t need to flip a switch, so there’s less chance of a mistake. This makes lifting safer, especially when workers are super busy or just learning the ropes.
Why Are Fail-Safe Designs Essential in Industrial Settings?
Fail-safe locks have backup parts, so if one bit breaks, the clamp still holds tight. This is a big deal in places where heavy loads hang over people or fancy machines, keeping everyone safe and sound.
Can Vertical Lifting Clamps Perform Reliably Under Harsh Conditions?
Clamps gotta work in tough spots like wet shipyards or hot factories without quitting.
How Do Temperature Extremes Influence Clamp Functionality?
Really cold weather can make metal parts brittle, and super hot weather can mess up springs or rubber bits. Check the clamp’s temperature limits to make sure it’s good for your job, like picking the right coat for snowy or sunny days.
How Does Exposure to Chemicals Or Moisture Affect Clamp Durability?
Wet or chemical-heavy places, like shipyards, can make clamps rusty. APOLLO makes clamps with special coatings, like galvanized finishes, to fight rust and keep them strong, like giving your clamp a raincoat.
What Regulatory Standards Must Your Equipment Meet?
Following rules makes sure your clamps are safe and okay to use.
Which ISO/ASME/EN Standards Govern Vertical Clamp Usage?
ISO 12100 is about machine safety, while ASME B30 sets rules for lifting tools like clamps. EN13155 checks if clamps are strong enough for crane jobs. These rules keep your clamps safe and awesome.
How Should You Maintain Your Clamps Over Time?
Taking care of clamps keeps them working great and safe for a long time.
What Are Ideal Inspection Intervals For Regular Use Cases?
Check clamps every day before work for worn jaws or loose locks. Every month, do a bigger check on pins and springs to make sure they’re tight. APOLLO’s clamps are built strong, but checking them often keeps them in great shape.
Whole machine assembly inspection: Always make sure the clamp’s parts fit together right, just like APOLLO does before their clamps leave the factory.
Why Choose APOLLO’s Vertical Lifting Clamps?
If you need clamps for tough jobs, APOLLO has many solutions for places like shipyards or factories. Their clamps use strong alloy frames and tough locks for long-lasting power. They’re made to handle rough stuff, like salty air or heavy loads, without giving up.
APOLLO’s years of know-how in Taiwan and strict quality checks make their clamps really trusty. They team up with folks worldwide to make clamps that fit all kinds of lifting jobs, from giant steel plates to delicate sheets.
FAQs
Q1: Can I use one vertical lifting clamp on all types of metal sheets?
A: No. You gotta match the jaw type to the sheet’s surface, like toothy jaws for rough steel or soft ones for shiny stuff. Thickness matters too for a safe hold.
Q2: What happens if I exceed my clamp’s rated WLL during operation?
A: Going over the WLL can break the clamp, dropping the load. That’s really dangerous for workers and machines, so always stay under the limit with extra room.
Q3: How do I know when my clamp needs replacement?
A: Look for worn jaws, weak locks, or rust on moving parts. If the clamp doesn’t grab tight or looks beat up, it’s time to fix or swap it out to stay safe.
