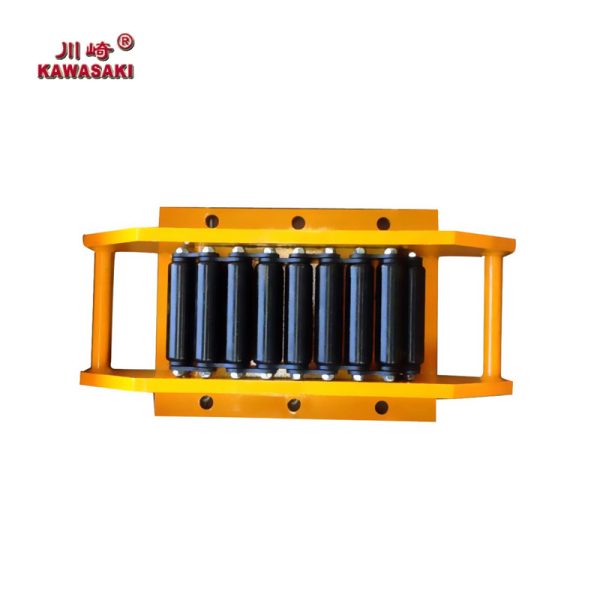

※ Features: generally applicable to steel and steel plate, straight, strong, stable and durable.Steel l-beam, straight line traction on the use of, Can be customized according to customer requirements and size of various types of crawler trucks.
※ Note: do not turn on the small tank.
| Gauge | Maximum load bearing TON | Long MM(A) | Wide MM (B) | High MM(C) | Total weight KG(D) | The distance MM |
| CRM8 | 8 | 370 | 230 | 90 | 17 | 152 |
| CRM10 | 10 | 400 | 230 | 90 | 20 | 152 |
| CRM15 | 15 | 415 | 240 | 110 | 28 | 160 |
| CRM20 | 20 | 450 | 240 | 110 | 30 | 160 |
| CRM25 | 25 | 490 | 240 | 110 | 35 | 160 |
| CRM30 | 30 | 530 | 300 | 140 | 60 | 205 |
| CRM40 | 40 | 580 | 300 | 145 | 70 | 205 |
| CRM50 | 50 | 625 | 300 | 150 | 80 | 230 |
| CRM60 | 60 | 660 | 340 | 165 | 105 | 230 |
| CRM80 | 80 | 710 | 340 | 170 | 120 | 250 |
| CRM100 | 100 | 760 | 340 | 175 | 135 | 250 |
| CRM120 | 120 | 870 | 365 | 190 | 180 | 250 |
| CRM150 | 150 | 930 | 365 | 195 | 200 | 278 |
| CRM200 | 200 | 920 | 393 | 220 | 230 | 278 |
| CRM250 | 250 | 990 | 393 | 225 | 260 | 288 |
| CRM300 | 300 | 1060 | 393 | 230 | 290 | 288 |
| CRM350 | 350 | 1190 | 423 | 255 | 400 | 300 |
| CRM400 | 400 | 1270 | 423 | 260 | 440 | 300 |
| CRM450 | 450 | 1355 | 423 | 265 | 490 | 320 |
| CRM500 | 500 | 1440 | 423 | 270 | 530 | 320 |
