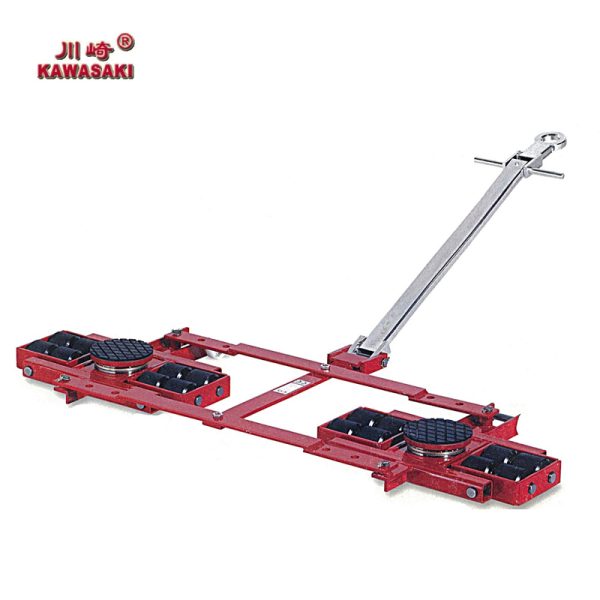

KL series is especially suitable for the need of four points.Contact load, such as the contact surface is the boxA machine with a structure.
Special friction bearing high strength roller is installed in the free guide frame,Can be customized according to user needs of steel roller.
| Model | KL8 | KL16 | KL64 | KL64 can be used with the BK series | |
| T (ton） | 8 | 16 | 64 | ||
| Working height（mm） | 110 | 110 | 140 | ||
| Roller size（mm） | 80×80 | 80×80 | 115×60 | ||
| Roller number | 8 | 16 | 32 | ||
| Pad comtact area（mm） | 160 | 160 | 200 | ||
| Connecting rod length（mm） | 550-1150 | 660-1000 | 1800-2100 | ||
| Operating lever length（mm） | 950 | 1080 | 1620 | ||
| Operating lever adjustable angle | ±50 | ±40 | ±40 | ||
| Weight KG | 45 | 105 | 258 | ||
