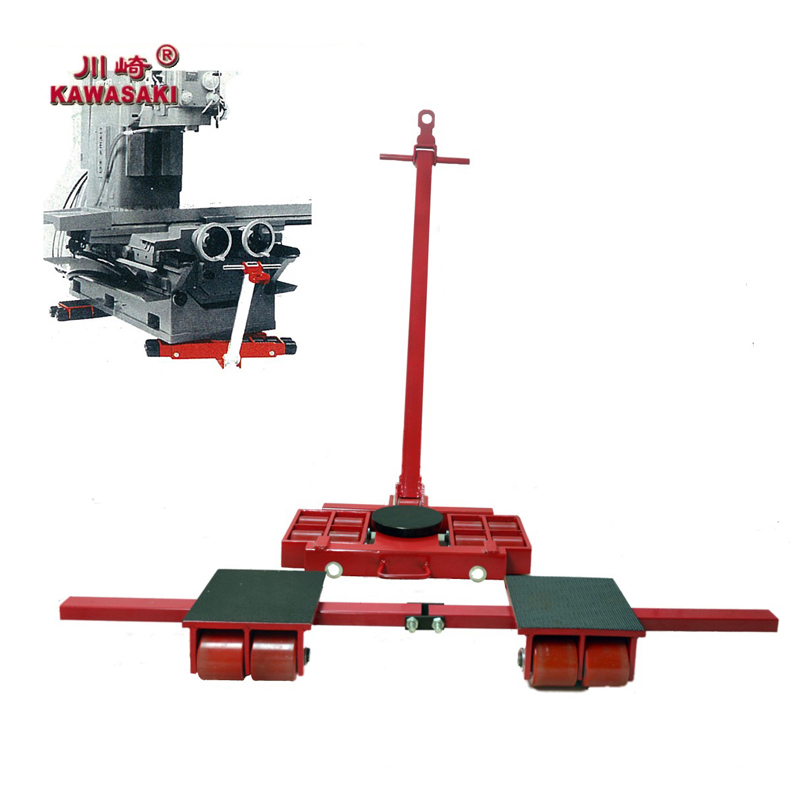

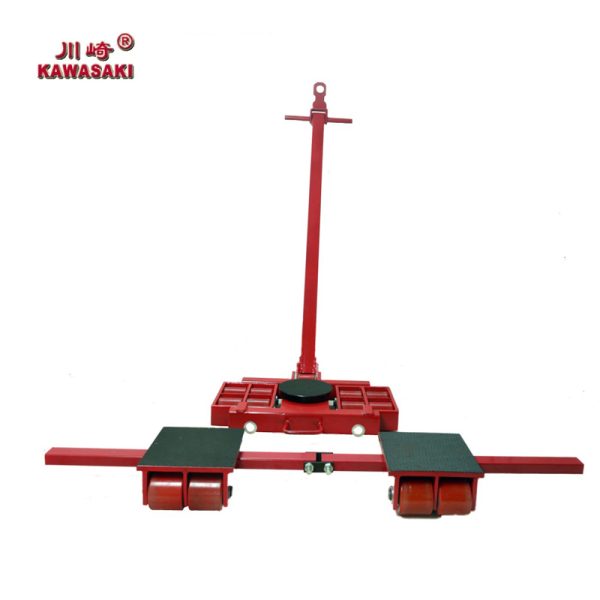

※This series of products for the X type front moving tool, with automatic adjustment of balance function, in the uneven ground can go smoothly.And the design of the handle lever, simple and flexible.
※Type Y is a rear movement, which can be adjusted according to the size of the animal.
※This series of products are made of special materials, pressure, wear, not easy to damage the work site, etc.
| Model | Wheel size | Number of wheels | Contact surface size | Length of handle | Dimensions | Nominal load | Net weight | |
| X4+Y4 | X4 | Φ80×70 | 4 | D:Φ160 | F:800 | 230×230×110 | 4 | 13 |
| Y4 | Φ80×70 | 4 | E:180×140 | J:300-1000 | 180x140x110 | 4 | 15 | |
| X8+Y8 | ×8 | Φ80×70 | 8 | D:Φ160 | F:1400 | 560×420×110 | 8 | 46 |
| Y8 | Φ80×70 | 8 | E:200×160 | J:400-1500 | 200x200x110 | 8 | 28 | |
| X12+Y12 | ×12 | Φ80×70 | 12 | D:Φ160 | F:1400 | 750x450x110 | 12 | 72 |
| Y12 | Φ80×70 | 12 | E:220×180 | J:400-1500 | 260*200×110 | 12 | 36 | |
| X16+Y16 | ×16 | Φ80×70 | 16 | D:Φ200 | F:1300 | 936×500×110 | 16 | 88 |
| Y16 | Φ80×70 | 16 | E:240×180 | J:400-1500 | 310*230*110 | 16 | 46 | |
| X18+Y18 | X18 | Φ80×70 | 18 | D:Φ200 | F:1400 | 780×550×110 | 18 | 96 |
| Y18 | Φ80×70 | 18 | E:280×200 | J:400-1500 | 320*220*110 | 18 | 52 | |
| X24+Y24 | ×24 | Φ80×70 | 24 | D:Φ200 | F:1400 | 1000×580×120 | 24 | 118 |
| Y24 | Φ80×70 | 24 | E:350×220 | J:400-1500 | 340*320*120 | 24 | 70 | |
| X32+Y32 | X32 | Φ80×70 | 32 | D:Φ200 | F:1400 | 1080x720x140 | 32 | 175 |
| Y32 | Φ80×70 | 32 | E:440×220 | J:400-1500 | 430×320×140 | 32 | 118 | |
