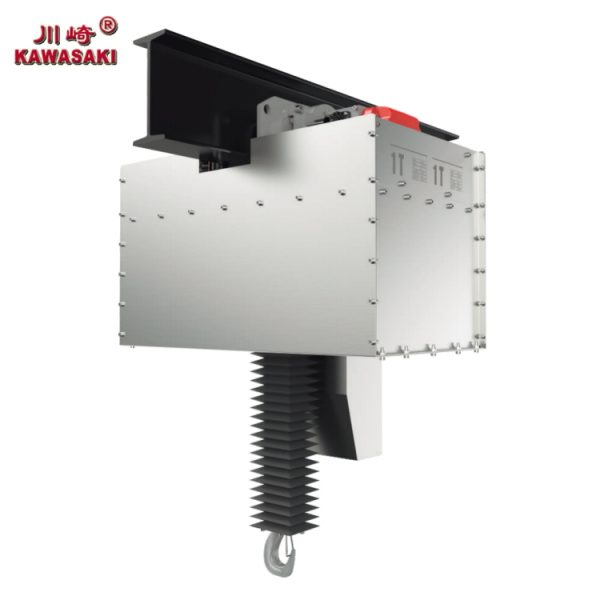

Electric hoist
Brand customization: OEM
Function customization: such as explosion-proof, dust-proof, rain-proof, frequency conversion, two-speed, etc.
Appearance customization: Customize the appearance color, logo, etc. of the electric hoist according to the customer’s preferences.
Material customization: customized chain T80 T100
Voltage customization: single phase three phase 110V-575V
Surface treatment customization: According to customer needs, the surface of the electric hoist is treated differently, such as spray painting, electroplating, oxidation, etc. The chain can be customized with galvanized, nickel plated, and blackened.
Packaging customization: Customize the packaging method of electric hoist according to customer needs
Customized minimum order quantity: 50
Supply capacity: 5,000 units of chain hoists a month
500 electric hoists per month
Electric hoist
Brand customization: OEM
Function customization: such as explosion-proof, dust-proof, rain-proof, frequency conversion, two-speed, etc.
Appearance customization: Customize the appearance color, logo, etc. of the electric hoist according to the customer’s preferences.
Material customization: customized chain T80 T100
Voltage customization: single phase three phase 110V-575V
Surface treatment customization: According to customer needs, the surface of the electric hoist is treated differently, such as spray painting, electroplating, oxidation, etc. The chain can be customized with galvanized, nickel plated, and blackened.
Packaging customization: Customize the packaging method of electric hoist according to customer needs
Customized minimum order quantity: 50
Supply capacity: 5,000 units of chain hoists a month
500 electric hoists per month
• The built-in load-bearing steel plate solves the problem of transmission stress damage caused by the deformation of the casing.And the hidden safety hazards are caused by the fission of the shell
• The high-strength aluminum alloy cover and wall thickness are balanced, effectively solving the problems of pores and stress, and providing better performance
• When the workpiece rises to the dual protection of the limit, the limit:
1 disconnects the rising contactor, and the limit
2 disconnects the main contactor, which solves the hidden safety hazard at the top of the collision effectively
• The motor has a built -in clutch, which has overload protection, can adjust the wind leaf nut, and the maintenance is convenient
• The PA66 alloy plastic is more abrasion -resistant and is convenient for replacement as a damaged accessory
• Adopt a level 4-14 dual winding, the motor is 1440 r/min, the noise is low, and the gearbox has a long life. Due to 1: 3.5 times the slow switching of the joint, it improves the fatigue life of the brake effectively
• The transmission of the medium -speed needle wheel is flexible and smooth, the precision is higher, and the life of low noise is long
• Open 485 signal, built -in micro -control processing, positioning can be located, and open communication protocols
• Small size, adjustable left and right balance
• Three -axis any selection
• Popular appearance
| MODEL | DCEK03-03 | |
| 1 Speed | 2 Speed | |
| Maximum load | 1.15t | |
| Rated load(Ton) | 1t | |
| Lifting speed(m/min) | 6.7 | 2.2/6.7 |
| Lifting motor power(kw) | 1.5 | 0.6/1.5 |
| Lifting motor speed(r/min) | 1440 | 470/1440 |
| Running speed(m/min) | 11 | 3.6/11 |
| Running motor speed(r/min) | 1440 | 470/1440 |
| Running motor power(kw) | 0.4 | 0.2/0.5 |
| Motor insulation class | F | |
| Power Supply | AC380V L1 L2 L3 L | |
| Control Voltage | AC36V | |
| NO.ofLoad Chain | 1 | |
| Spec.ofLoad Chain | 7.1×21 | |
| Working level | M5 | |
| I-Beam(mm) | 52-153 | |
| Dimensions | H | Length（mm) |
| A | 413 | |
| B | 222 | |
| D | 720 | |
| E | 347 | |
| I | 150 | |
| M | 422 | |
| N | 25 | |
| K | 42 | |
| L | 32 | |
