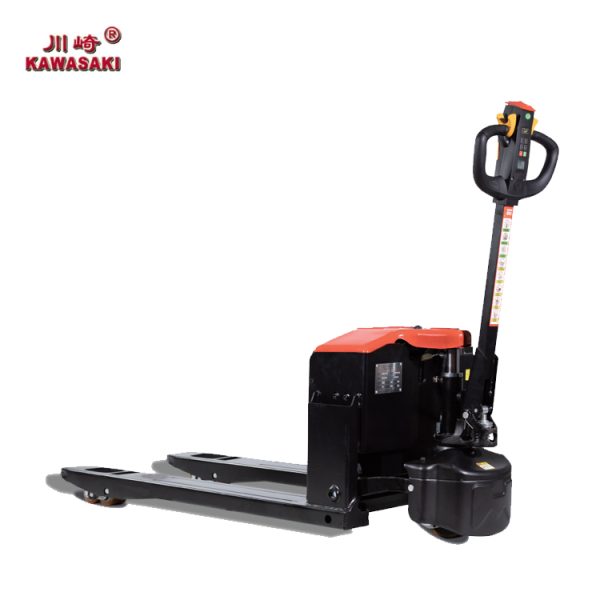

With a net weight of only 190/192kg, plus a compact turning radius (1640/1690mm) and moderate overall length (1680/1750mm)/width (550/680mm), it’s highly suitable for narrow aisles or small-scale work sites.
It supports 2000kg load capacity (matching light-to-medium handling needs) and offers adjustable lifting height (195/165mm) + lowered height (85/65mm); the 1200mm tiller height ensures comfortable long-term operation.
Its travel speed (4/4.2km/h), lift speed (0.02m/s), and lowering speed (0.06/0.03m/s) align with daily material handling efficiency; the max gradeability (5/20%) adapts to slight inclines.
Equipped with a 0.85kW drive motor and 0.65kW lift motor for reliable power; the 48V/32Ah lead-acid battery (36.8kg weight) provides sufficient runtime, and FOC drive control enables precise, smooth operation.
With a net weight of only 190/192kg, plus a compact turning radius (1640/1690mm) and moderate overall length (1680/1750mm)/width (550/680mm), it’s highly suitable for narrow aisles or small-scale work sites.
It supports 2000kg load capacity (matching light-to-medium handling needs) and offers adjustable lifting height (195/165mm) + lowered height (85/65mm); the 1200mm tiller height ensures comfortable long-term operation.
Its travel speed (4/4.2km/h), lift speed (0.02m/s), and lowering speed (0.06/0.03m/s) align with daily material handling efficiency; the max gradeability (5/20%) adapts to slight inclines.
Equipped with a 0.85kW drive motor and 0.65kW lift motor for reliable power; the 48V/32Ah lead-acid battery (36.8kg weight) provides sufficient runtime, and FOC drive control enables precise, smooth operation.
| Fork Length (mm) |
| 1150/1220/1500 |
| 1600/1800/2000 |
| Identification | 1.1 | Manufacturer(abbreviation) | Machinery | ||
| 1.2 | Model | CBD | |||
| 1.3 | Drive | Electric | |||
| 1.5 | Load capacity | O kg | 2000 | ||
| 1.6 | Load centre distance | C mm | 600 | ||
| 1.9 | Wheelbase | y mm | 1254 | 1304 | |
| Weights | 2.1 | Net Weight | kg | 190 | 192 |
| Wheels/Frame | 3.2 | Tyre size front | mm | ø190*70 | |
| 3.3 | Tyre size rear | mm | ø80*70 (ø63*76) | ||
| 3.5 | Wheels,number front/rear | 1/4 | |||
| 3.6 | Tread width,front | mm | n/a | ||
| 3.7 | Tread width,rear | b11 mm | 390 | 520 | |
| Basic dimensions | 4.4 | Lift | h3 mm | 110(100) | |
| 4.9 | Height of tiller in drive position | h1 mm | 1280 | ||
| 4.14 | Height raesed | mm | 195(165) | ||
| 4.15 | Height lowered | h13 mm | 85 (65) | ||
| 4.19 | Overall length | l1 mm | 1680 | 1750 | |
| 4.2 | Length to face of forks | l2 mm | 525 | ||
| 4.21 | Overall width | b5 | 550 | 680 | |
| 4.22 | Fork dimensions | s/e/l mm | 73 (59)/160/1150 | 73 (59)/160/1220 | |
| 4.25 | Width across forks | b5 | 550 | 680 | |
| 4.35 | Turning radius | Wa mm | 1640 | 1690 | |
| Performance Data | 5.1 | Travel speed, laden/unladen | km/h | 4/4.2 | |
| 5.2 | Lift speed, laden/unladen | m/s | 0.02 | ||
| 5.3 | Lowering speed, laden/unladen | m/s | 0.06/0.03 | ||
| 5.8 | Max. gradeability, laden/unladen | % | 5/20 | ||
| 5.1 | Brake | Eectric | |||
| Electrics | 6.1 | Drive motor, output | kW | 0.85 | |
| 6.2 | Lift motor output | kW | 0.65 | ||
| 6.3 | Battery | Lead-Acid Battery | |||
| 6.4 | Battery voltage/nominal capacity | V/Ah | 48/32 | ||
| 6.5 | Battery weight | kg | 36.8 | ||
| Misc. | 8.1 | Type of drive contorl | FOC | ||
