It supports 2000/2500/3000kg load capacity, covering light to heavy material handling demands in warehouses, logistics stations, and small workshops.
With a net weight of only 50-60kg and a compact turning radius (1312/1362mm), plus moderate overall dimensions (length 1510/1560mm, width 550/685mm), it maneuvers flexibly even in narrow workspaces.
It offers 190mm lifting height and 75mm lowered height for flexible stacking/retrieval; the 1178mm tiller height ensures comfortable long-term operation.
Equipped with a φ18050 steer wheel and φ7470 load wheel, paired with a stable wheelbase (1197/1247mm) and tread width (400/535mm), it maintains reliable stability when bearing loads.
It supports 2000/2500/3000kg load capacity, covering light to heavy material handling demands in warehouses, logistics stations, and small workshops.
With a net weight of only 50-60kg and a compact turning radius (1312/1362mm), plus moderate overall dimensions (length 1510/1560mm, width 550/685mm), it maneuvers flexibly even in narrow workspaces.
It offers 190mm lifting height and 75mm lowered height for flexible stacking/retrieval; the 1178mm tiller height ensures comfortable long-term operation.
Equipped with a φ18050 steer wheel and φ7470 load wheel, paired with a stable wheelbase (1197/1247mm) and tread width (400/535mm), it maintains reliable stability when bearing loads.

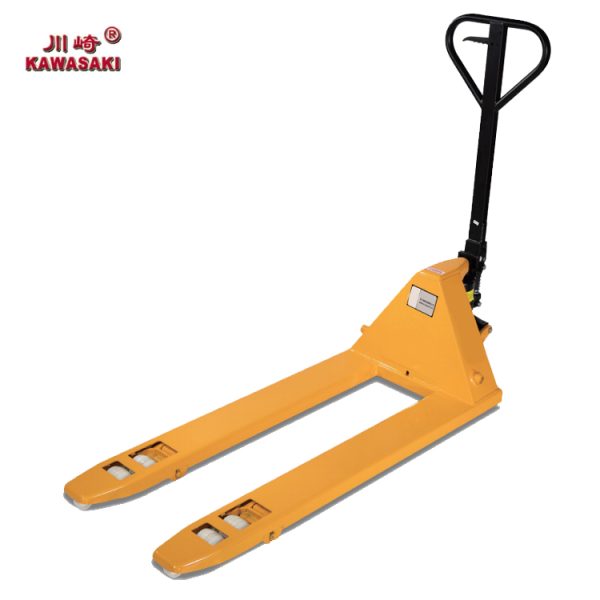

The HM hand pallet truck is the ideal solution for light-duty manual transportation over short distances in stores, warehouses and factories.
The quick lift pump works much faster means less effort and much more efficient, good solution for fast paced work.
Available with
Heami self designed pump with quick lift funtion. Pump valve tested to over one million cycles.
The HM6/HM7 is available with either polyurethane or nylon steer and load wheels.Both are non-marking but offer characteristics that may be better suited for certain environments.Nylon is a harder compund and provides a lower rolling resistance to allow for easier load maneuvering and reduced pull effort. Polyurethane offers more traction, specifically in wet environments. Polyurethane may also be preferred in a noise sensitive areas.
3000kg with triangle steel plate reinforcement.
Forks with L channel formed steel provide added strength.
30*30*3 adjustable rectangular steel tube.
Pallet entry/exit is enhanced with rollers,an exit ramp and a tapered fork tip design.
As Hangzhou Apollo Lifting Equipment Co., Ltd, a leading hoist manufacturer and supplier with over 30 years of expertise, we provide comprehensive heavy lifting solutions. Our Kawasaki-branded products include electric chain hoists, wire rope hoists, manual hoists, and hand winches, serving as reliable electric hoist suppliers and chain hoist suppliers for mining, construction, and warehouse applications. We also supply industrial lifting clamps and are recognized among top crane manufacturers, offering overhead cranes, warehouse cranes, and port cranes. Committed to quality and innovation, we are your trusted partner for all industrial lifting needs. ISO9001 & CE certified.
| Identfication | 1,1 | Manufacturer | Machinery | |||
| 1.2 | Model | HM | ||||
| 1.3 | Drive | Manual | ||||
| 1.5 | Load capacity | Q kg | 2000/2500/3000 | |||
| 1.6 | Load centre distance | C mm | 475 | 510 | ||
| 1.9 | Wheelbase | LO mm | 1197 | 1247 | ||
| Weights | 2.1 | Net weight | kg | 50-60 | ||
| Wheels/Frame | 3.2 | Steer wheel | mm | ø180*50 | ||
| 3.3 | Load wheel | mm | ø74*70 | |||
| 3.5 | Wheels, number steer/load | 2/4 | ||||
| 3.6 | Tread width, steer | L1 mm | 128 | |||
| 3.7 | Tread width, load | L2 mm | 400 | 535 | ||
| Basic dimensions | 4.4 | Lift | h mm | 110 | ||
| 4.9 | Height of tiller in drive position | h14 mm | 1178 | |||
| 4.14 | Height raised | h3 mm | 190 | |||
| 4.15 | Height lowered | h13 | mm | 75 | ||
| 4.19 | Overall length | L3 | mm | 1510 | 1560 | |
| 4.21 | Width across forks | b5 | mm | 550 | 685 | |
| 4.22 | Fork dimensions | s/e/l | mm | 47/150/1150 | 47/150/1200 | |
| 4.35 | Turning radius | Wa | mm | 1312 | 1362 | |
