KAWASAKI EXPLOSION-PROOF HOIST HBSQ 1T

Electric hoist
Brand customization: OEM
Function customization: such as explosion-proof, dust-proof, rain-proof, frequency conversion, two-speed, etc.
Appearance customization: Customize the appearance color, logo, etc. of the electric hoist according to the customer’s preferences.
Material customization: customized chain T80 T100
Voltage customization: single phase three phase 110V-575V
Surface treatment customization: According to customer needs, the surface of the electric hoist is treated differently, such as spray painting, electroplating, oxidation, etc. The chain can be customized with galvanized, nickel plated, and blackened.
Packaging customization: Customize the packaging method of electric hoist according to customer needs
Customized minimum order quantity: 50

Supply capacity: 5,000 units of chain hoists a month
500 electric hoists per month

KAWASAKI EXPLOSION-PROOF HOIST HBSQ 1T

Electric hoist
Brand customization: OEM
Function customization: such as explosion-proof, dust-proof, rain-proof, frequency conversion, two-speed, etc.
Appearance customization: Customize the appearance color, logo, etc. of the electric hoist according to the customer’s preferences.
Material customization: customized chain T80 T100
Voltage customization: single phase three phase 110V-575V
Surface treatment customization: According to customer needs, the surface of the electric hoist is treated differently, such as spray painting, electroplating, oxidation, etc. The chain can be customized with galvanized, nickel plated, and blackened.
Packaging customization: Customize the packaging method of electric hoist according to customer needs
Customized minimum order quantity: 50

Supply capacity: 5,000 units of chain hoists a month
500 electric hoists per month

Product details

Product details

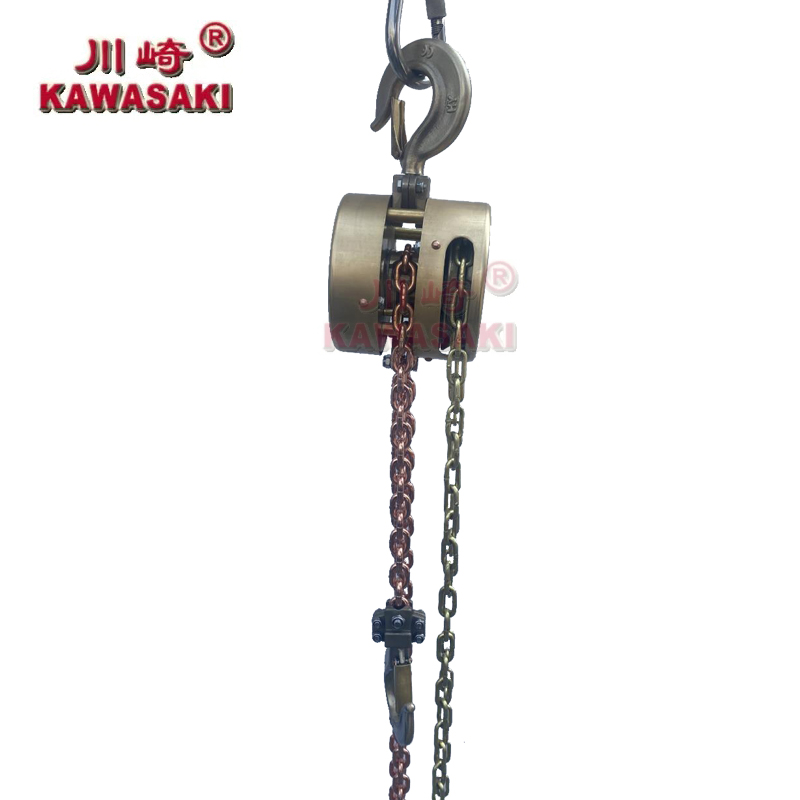

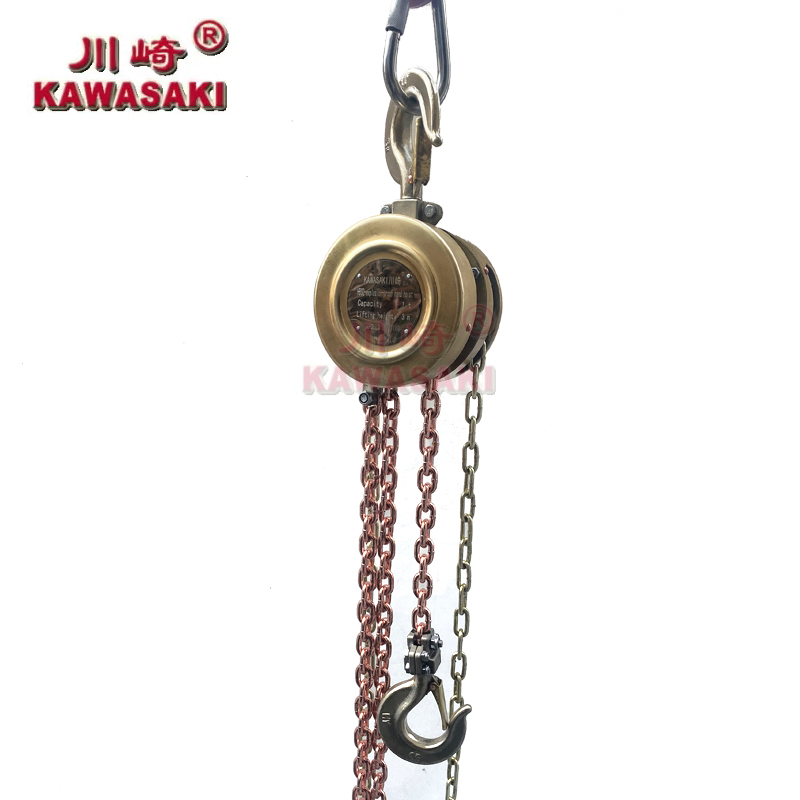

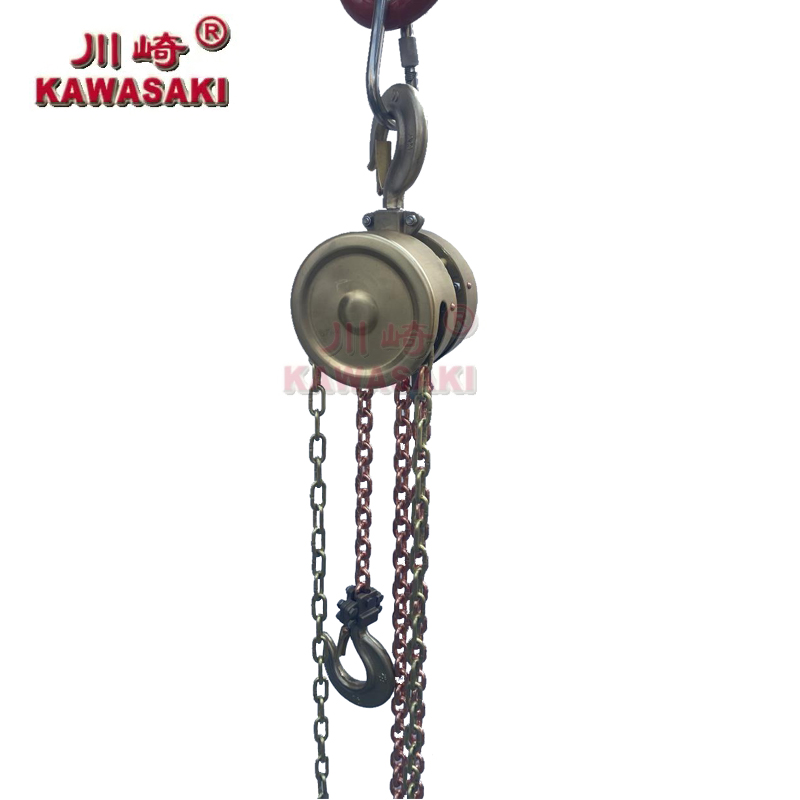

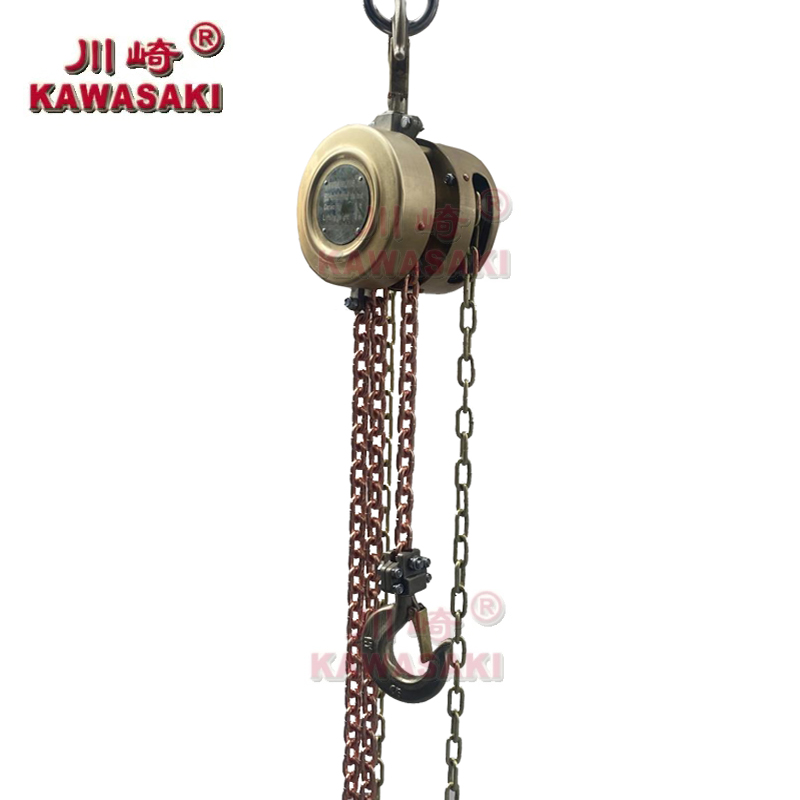

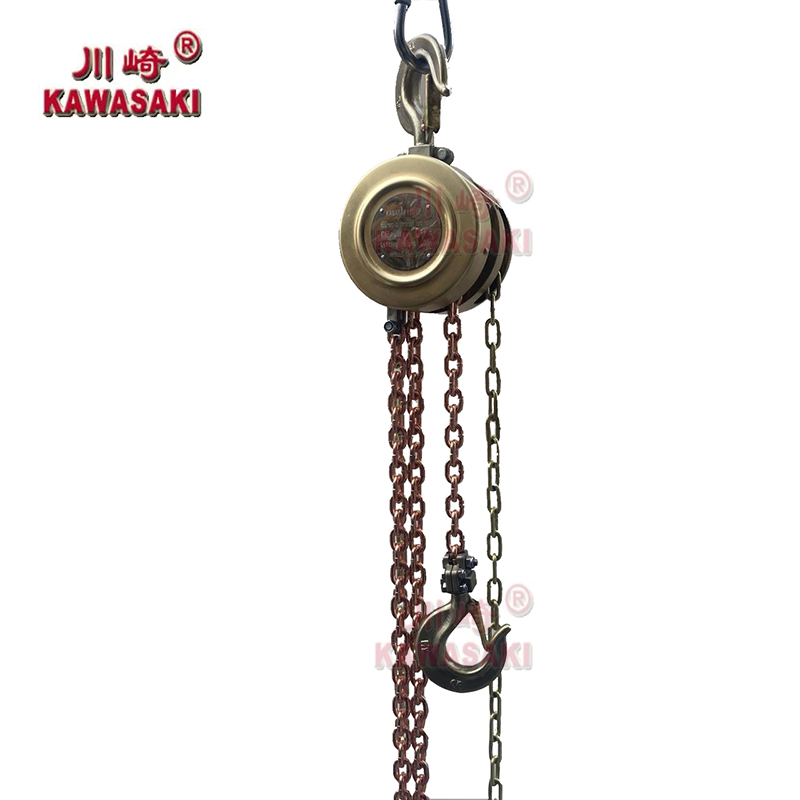

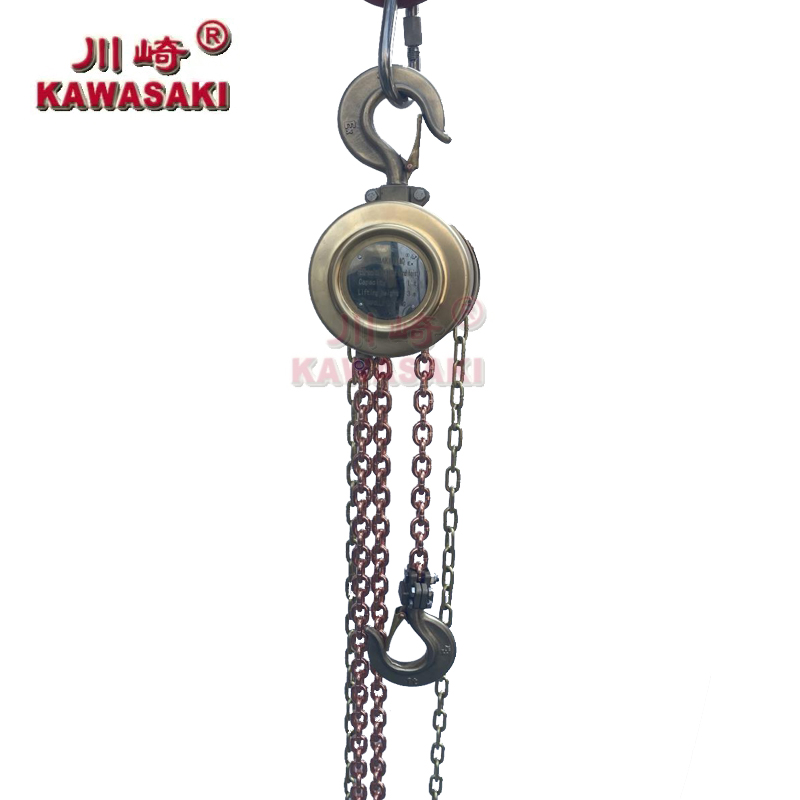

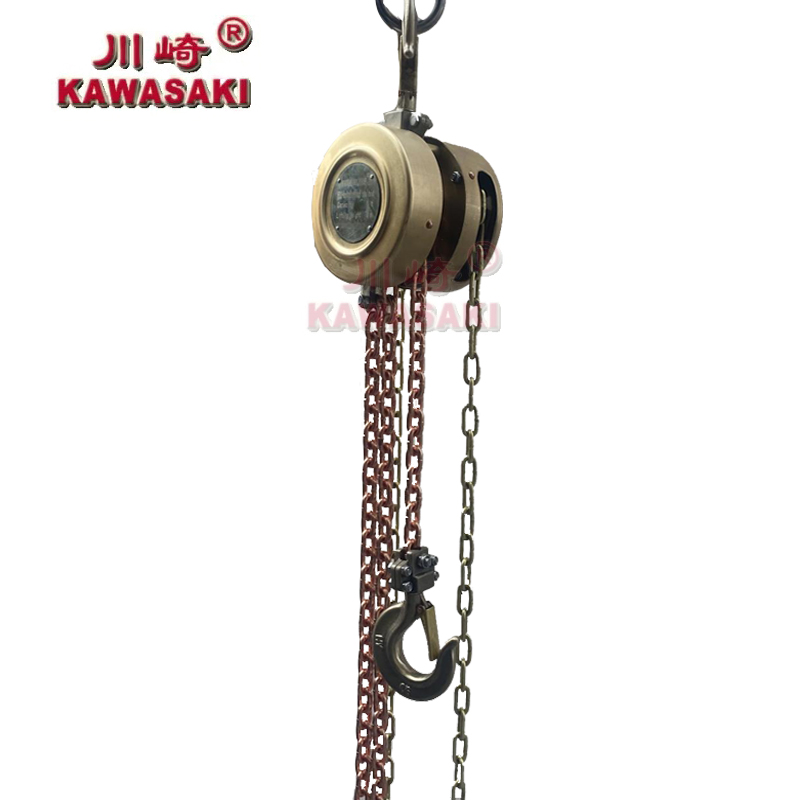

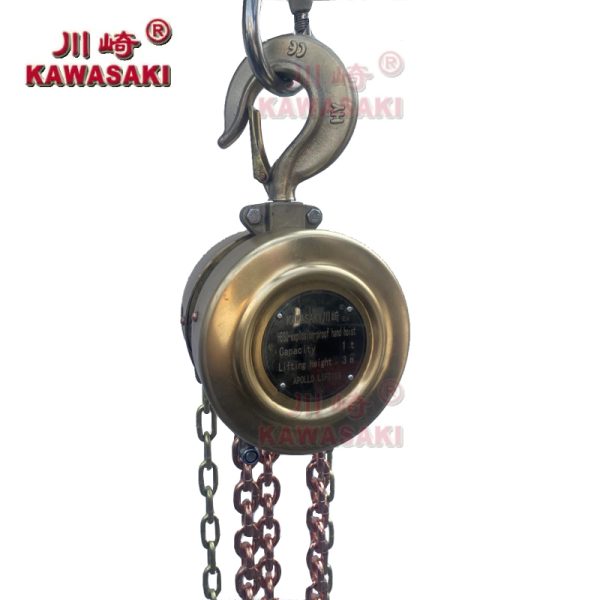

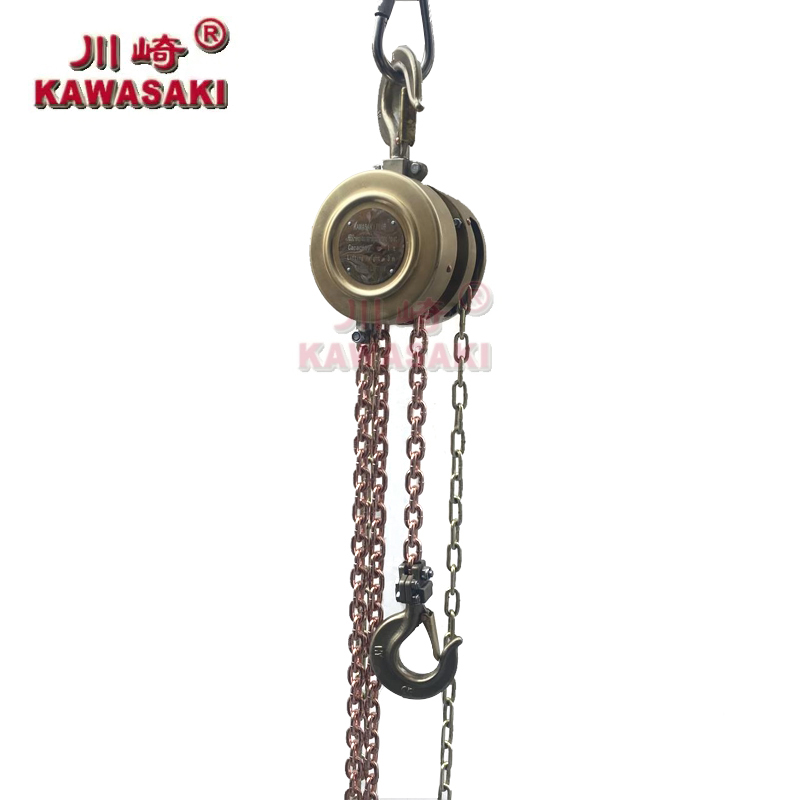

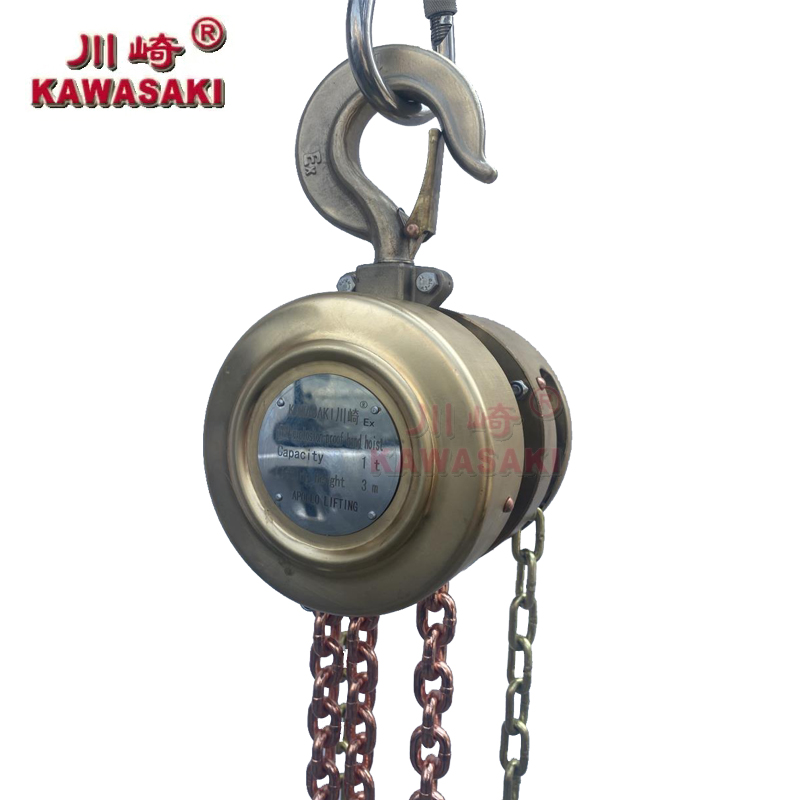

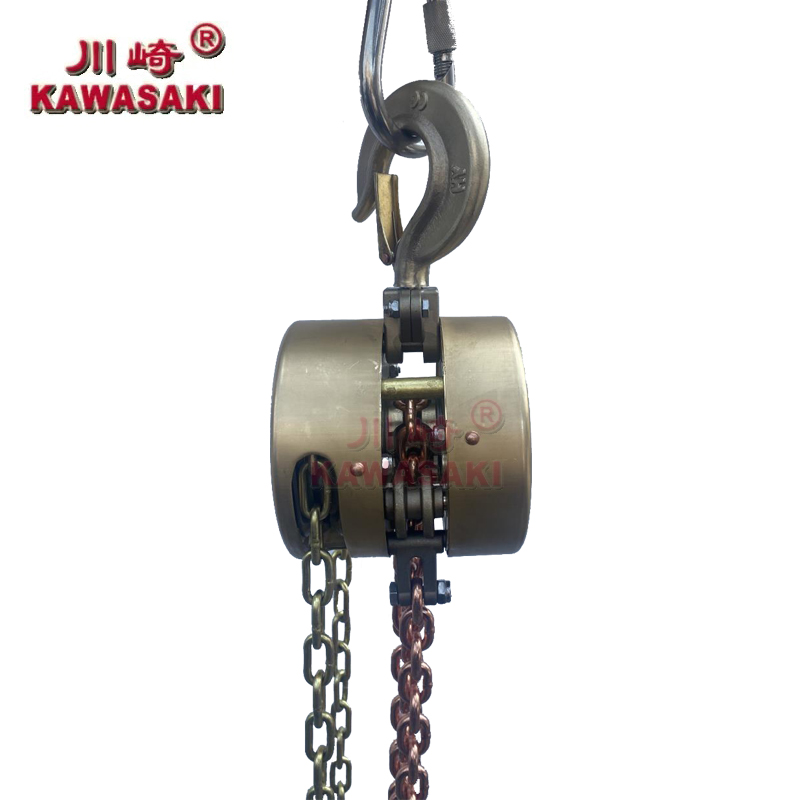

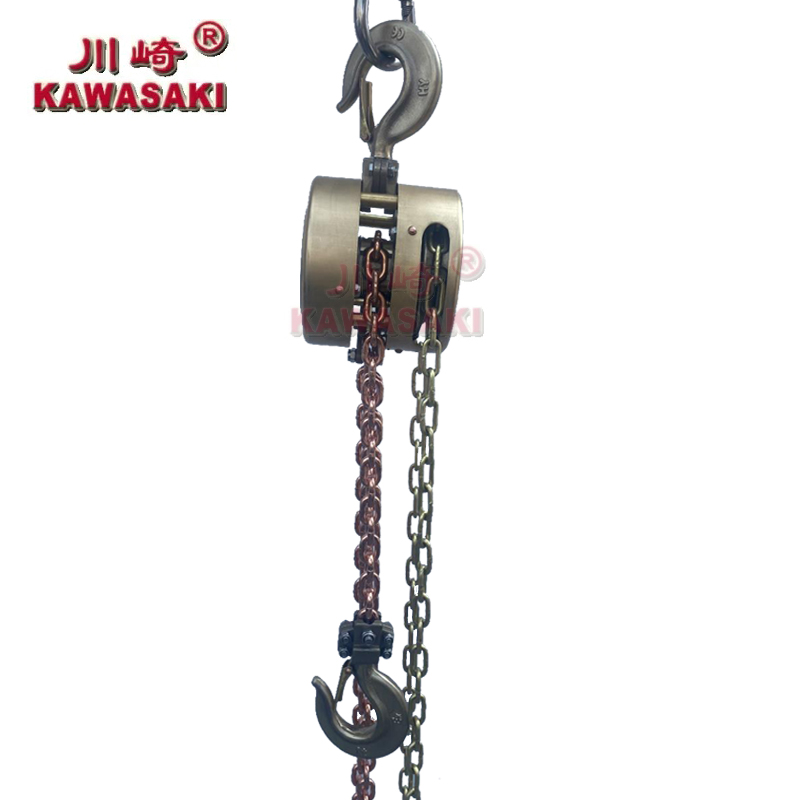

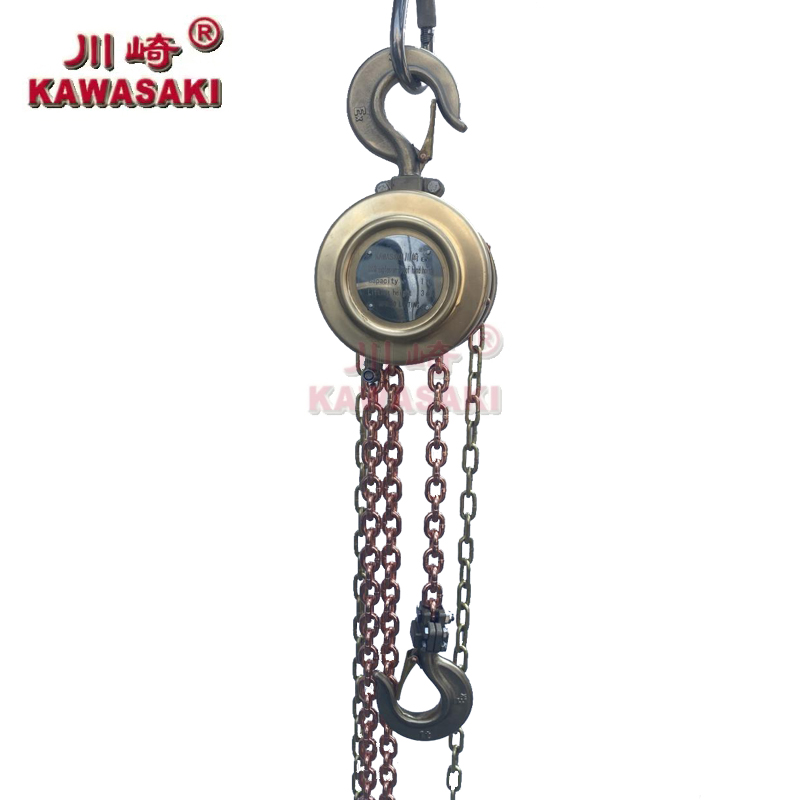

The HBSQ Series Chain Hoist is a portable lifting device operated by hand chain. It is suitable for use in factories, mines, farms,construction sites, wharves,docks and warehouses for installation of equipment, as well as for loading and unloading goods. It is specially advantageous for lifting work in the open air and places where no power supply is available. The chain hoist can be attached to a trolly of any type as a traveling chain houst. It is suitable to monorail overhead conveying system,hand travelling crane and jib crane.
• Safe,reliable in operation with minimum maintenance
• High efficiency and small handpull
•Light weight and easy handling
•Fine appearance with small size
•Durability in service

Model HBSQ0.5 HBSQI HBSQ2 HBSQ3 HBSQ5 HBSQ7.5 HBSQI0 HBSQ20
Capacity(t) 0.5 2 3 5 7.5 10 20
lfting height (m) 2.5 2.5 2.5 3 3 3 3 3
Test load (t) 0.75 1.5 3 4.5 7.5 11.2 12.5 25
No.of load chain fall lines 1 1 2 2 2 3 4 8
Dimensions (mm) A 142 142 142 178 266 350 360 580
B 130 130 130 150 170 170 170 170
Hmin 300 326 440 600 650 880 900 1000
D 30 43 50 63 65 72 77 106
Net weight (kg) 12 13 16 26 38 66 83 180
