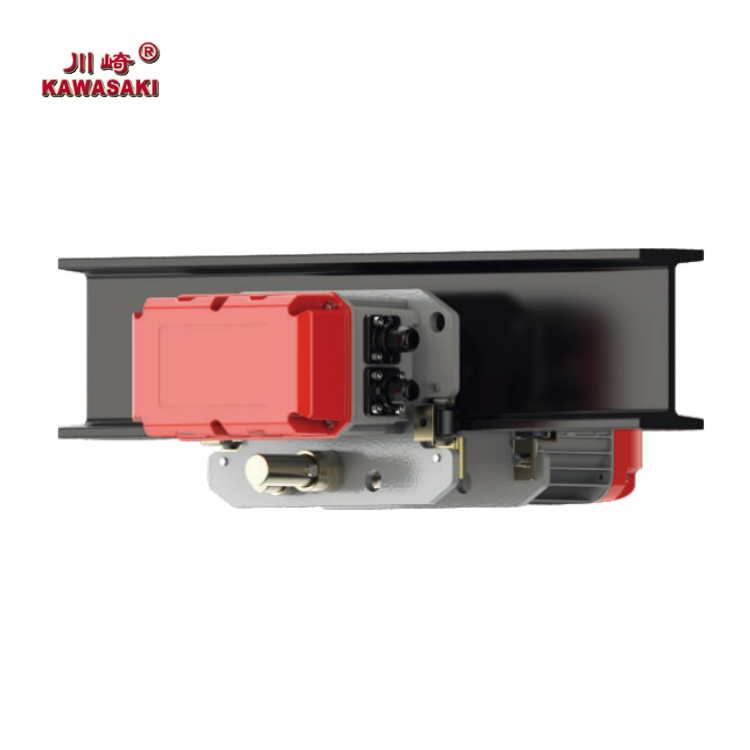

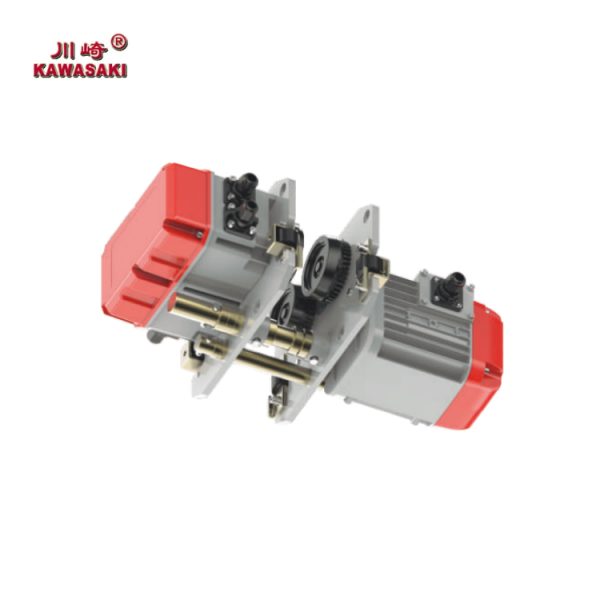

KAWASAKI ELECTRIC TROLLEY ET USED WITH DCEK/DCER

KAWASAKI ELECTRIC TROLLEY ET USED WITH DCEK/DCER

Product details

Product details

This product is used in conjunction with the DCEK series electric hoist

Type ET-DD5 DCET-005 DCET-010 DCET-020 DCET-030 DCET-050 DCET-075
Capacity(Ton) 0.5 1 2 3 5 7.5
Uuit(mm) A 300 315 325 340 400 400
B 195 206 222 248 290 290
R 167 167 167 167 167 167
T 242 242 242 242 242 242
1 Φ28 Φ31 Φ36 Φ43 Φ54 Φ54
1 Speed 50Hz(m/min) 11 11 11 11 11 11
21 21 21
2 Speed 50Hz(m/min) 3.6/11 3.6/11 3.6/11 3.6/11 3.6/11 3.6/11
6.5/21 6.5/21
 1 Speed Motor(kw) 0.5 0.5 0.5 0.5 0.75 0.75
2 Speed Motor(kw) 0.2/0.5 0.2/0.5 0.2/0.5 0.2/0.5 0.3/0.75 0.3/0.75
Minimum Turing Radius(m) 1 1.3 1.5 1.6 1.8 1.8
l-Beam(mm) 52-153 52-153 82-178 100-178 100-178 100-178
