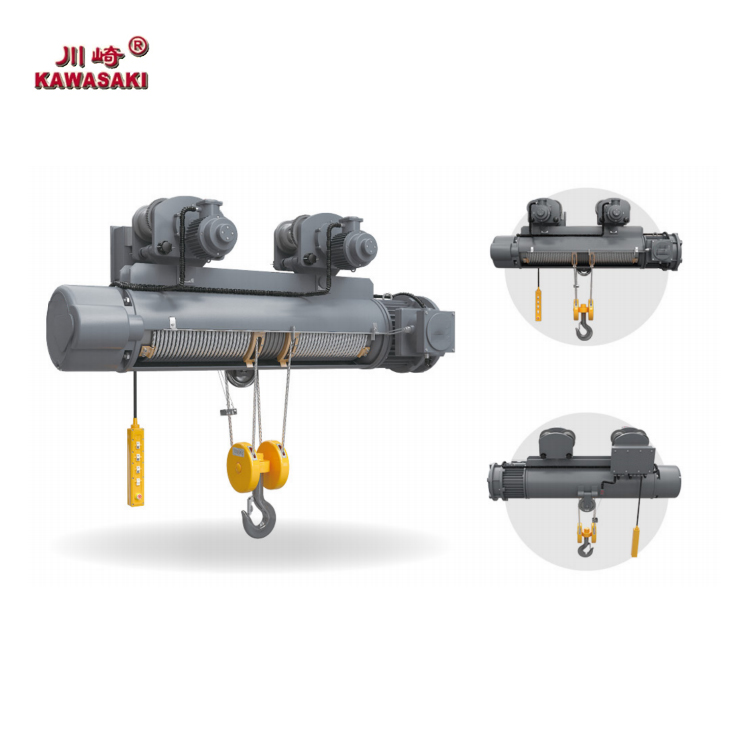

KAWASAKI FOR MARINE/COASTAL WIRE ROPE ELECTRIC HOIST M3(CD/MD) M4(FMCD/FMMD)

KAWASAKI FOR MARINE/COASTAL WIRE ROPE ELECTRIC HOIST M3(CD/MD) M4(FMCD/FMMD)

Product details

Product details

1. Marine hoist is suitable for oil mist, salt spray, and bacteria. The motor is specially treated, and the insulation grade is F.
2. Power-off manual release device. It can safely release heavy objects in the state of power failure.
3. Use marine ship inspection galvanized steel wire rope, hook pulley block, electric control box and other accessories
4. with upper limit double limit function
5. Lifting limit protection function
6. Running trolley it adopts rack drive to adapt to sea and ship vibration and tilting environment.
7. With overload, over current, voltage loss, fault phase, limit alarm and other protection functions.
Application range:suitable for marine applications, providing single or double speed machine type.
Mainly applicable occasions include:
  • Cabin driving: mainly used for maintenance of ship mainframes, replacement of important parts such as pistons during sea trials, etc.
  • Deck cranes: mainly used for lifting goods and materials on board.

8.The operating mechanism of the marine hoist is anti swing rack type,and both types of hoists have special anti-corrosion / acid and alkali resistance.

Lifting capacity t 1 2 3 5 10 16
Lifting height m 6-30 6-30 6-30 6-30 6-30 9-24
Rope winding mode 1/2 1/2 1/2 1/2 2/4 1/4
Lifting speed m/min 8(0.8/8) 8(0.8/8) 8(0.8/8) 8(0.8/8) 7(0.7/7) 3.5(0.35/3.5)
Lifting power kw 1.5 3.0 4.5 7.5 13 13
Running speed m/min 10/20 10/20 10/20 10/20 10/20 10/20
Operating power kw 0.2 0.4 0.4 0.8 0.8*2 0.8*2
Degree of protection IP54/55 IP54/55 IP54/55 IP54/55 IP54/55 IP54/55
Control mode Electric+Manual Electric+Manual Electric+Manual Electric+Manual Electric+Manual Electric+Manual
Working level M3/M4 M3/M4 M3/M4 M3/M4 M3/M4 M3/M4
Power supply 3P 380V 50Hz 3P 380V 50Hz 3P 380V 50Hz 3P 380V 50Hz 3P 380V 50Hz 3P 380V 50Hz
