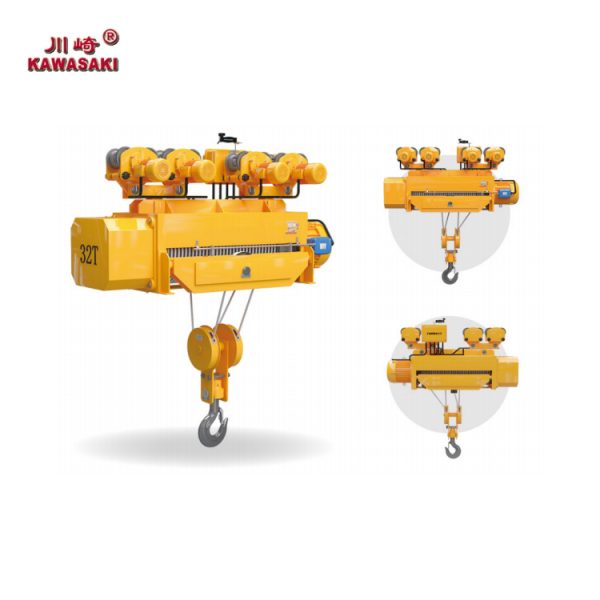

KAWASAKI HEAVY DUTY WIRE ROPE ELECTRIC HOIST M3(HC/HM) M4(FMHC/FMHM)

KAWASAKI HEAVY DUTY WIRE ROPE ELECTRIC HOIST M3(HC/HM) M4(FMHC/FMHM)

Product details

Product details

  • Efficiency: Electric hoists provide efficient lifting solutions with minimal manual effort, increasing productivity and reducing labor costs.
  • Precision: Electric hoists offer precise control over the lifting process, allowing for accurate positioning of heavy loads.
  • Safety: Electric hoists are equipped with safety features such as overload protection, emergency stop buttons, and limit switches to prevent accidents and ensure operator safety.
  • Versatility: Electric hoists come in various capacities and configurations to suit different lifting requirements, making them suitable for a wide range of applications across industries.
  • Easy Operation: Electric hoists are relatively easy to operate, requiring minimal training for operators to use them effectively. Overall, electric hoists provide a reliable and efficient solution for lifting heavy loads in diverse industrial and commercial settings, contributing to increased productivity and safety standards.
Lifting capacity t 16 20 25 32 40 50 100
Lifting height m 9-30 9-30 9-30 9-30 9-24 9-24 9-24
Pulley magnification 1-4
1/2
1/4 1/4 1/4 1/6 1/6 1/6
Lifting speed m/min 3.5(0.35/3.5)
6/0.6
4(0.4/4) 3(0.3/3) 3(0.3/3) 2(0.2/2) 2(0.2/2) 2(0.2/2)
Lifting power kw 4-pole 18.5
6-pole 18.5
4-pole 18.5 6-pole 18.5 6-pole 18.5 6-pole 18.5 6-pole 18.5 6-pole 18.5*2
Running speed m/min 20 20 20 20 20 Fixed type Fixed type
Operating power kw 0.8*2
1.5*2
0.8*4 0.8*4 1.5*4 1.5*4
Control mode Handle / remote control Handle / remote control Handle / remote control Handle / remote control Handle / remote control Handle / remote control Handle / remote control
Working level M3/M4 M3/M4 M3/M4 M3/M4 M3/M4 M3/M4 M3/M4
Power supply 3P 380V 50Hz 3P 380V 50Hz 3P 380V 50Hz 3P 380V 50Hz 3P 380V 50Hz 3P 380V 50Hz 3P 380V 50Hz
