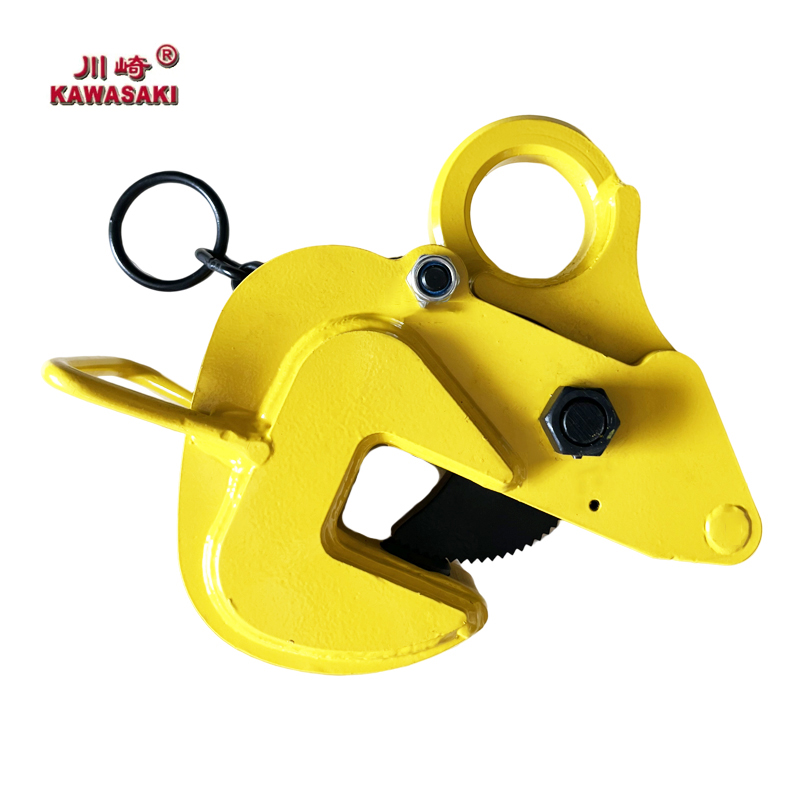

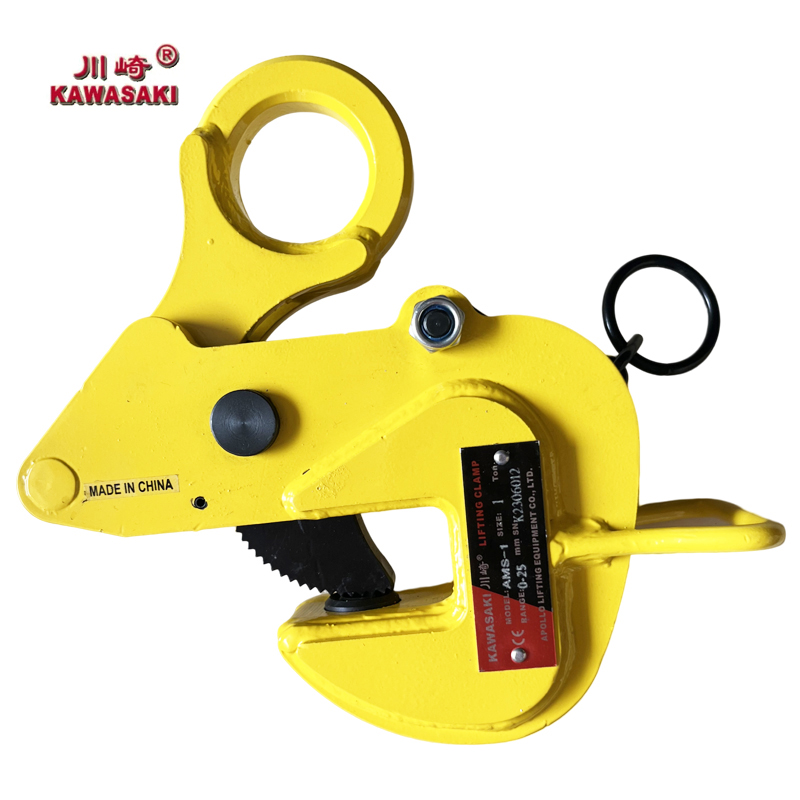

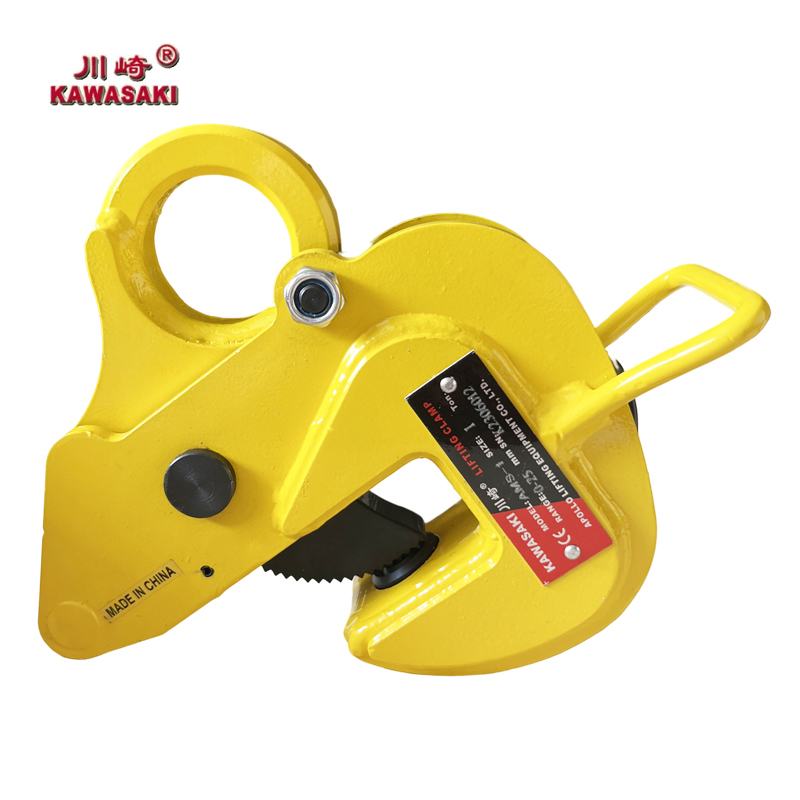

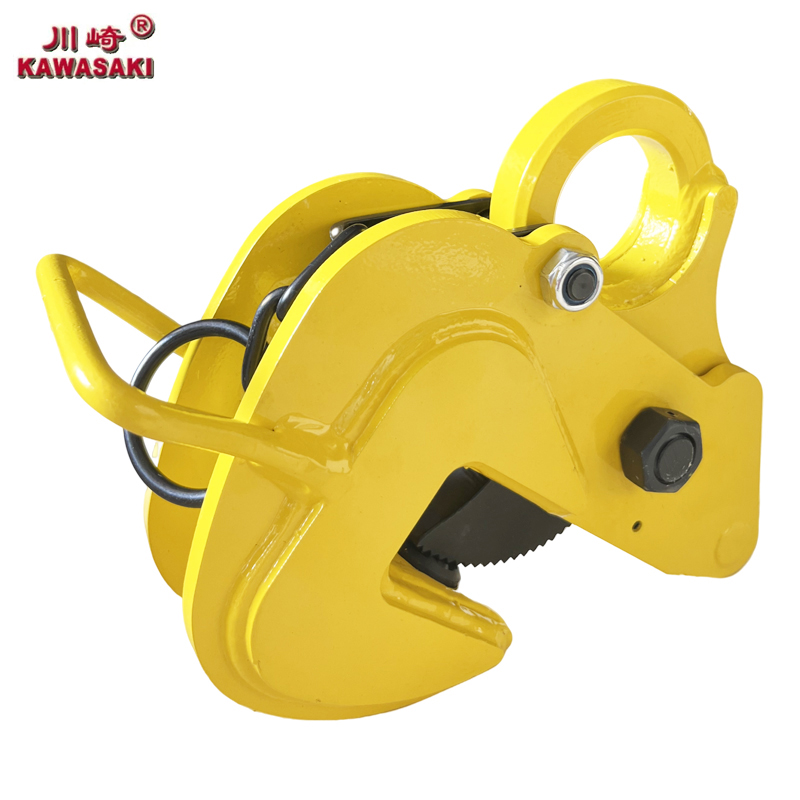

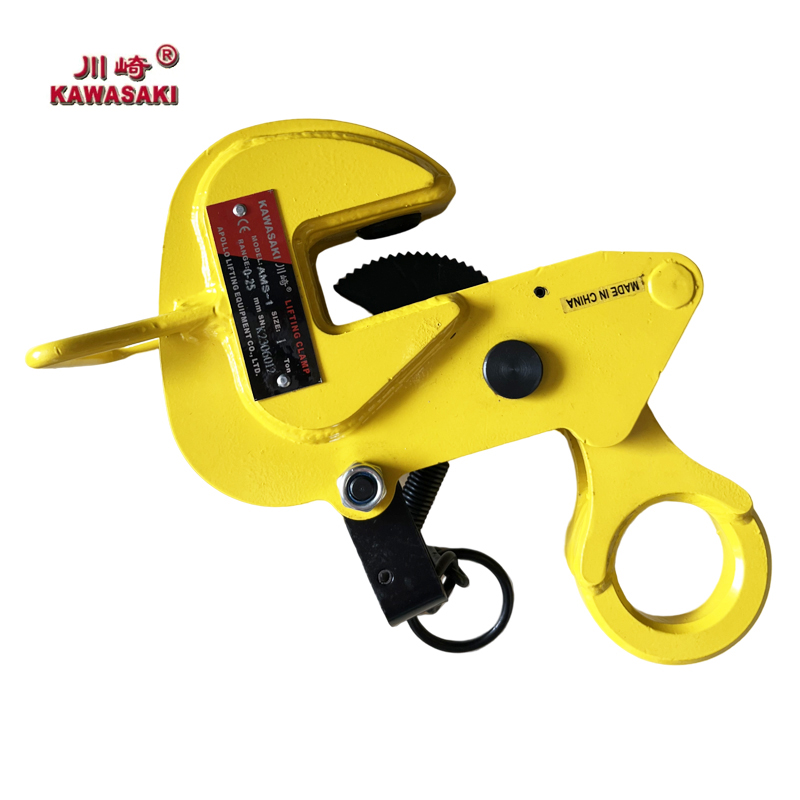

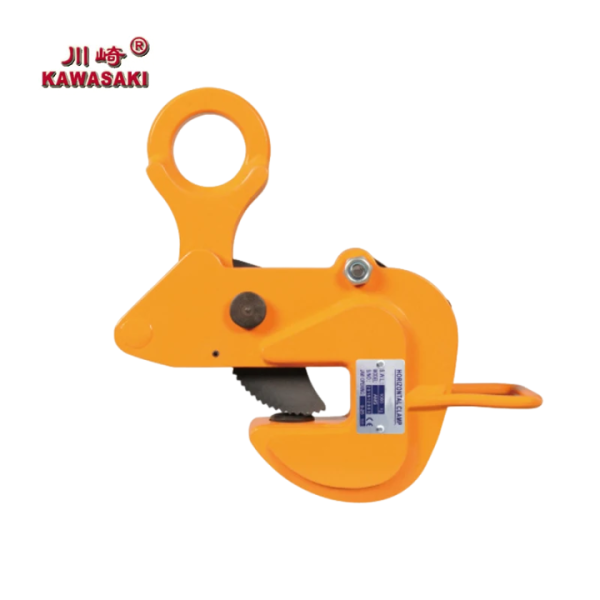

KAWASAKI HORIZONTAL LIFTING CLAMP AMS 1T

KAWASAKI HORIZONTAL LIFTING CLAMP AMS 1T

Product details

Product details

1:Small Size And Light Weight
2:Thickened Rings
3:Refined Spring Fastener
4:Alloy Steel Gear
5:Alloy Steel Forging
· Wear-resistant Hook
The hook is made of thickened wear-resistant material, which is sturdy and not broken
· Exquisite Spring
Fasteners The spring component timely locks the steel plate, greatly improving safety
· Alloy Steel Gear
High temperature forged compressed steel plate, non-skid and safer

Model 1T 2T 3T 5T 10T
Capacity(t) 1 2 3 5 10
Test load(t) 1.5 3 4.5 7.5 15
Jaw Opening(mm) 0-25 0-30 0-40 0-50 20-70
Dimensions(mm) A 28 33 41 45 75
B 36 40 45 45 70
C 129 146 165 205 250
D 50 56 56 60 60
E 27 35 35 45 50
F 221-260 246-290 267-315 362-403 430-490
G 46 60 70 75 92
H 155 175 200 238 303
I 18 20 20 30 36
J 114 114 114 152 178
K 259 273 306 368 454
S 60 74 88 117 135
R 40 45 48 55 55
W1 67 72 76 95 108
W2 35 40 40 55 70
Net Weight(kg) 5.3 7.9 9.7 20 50
