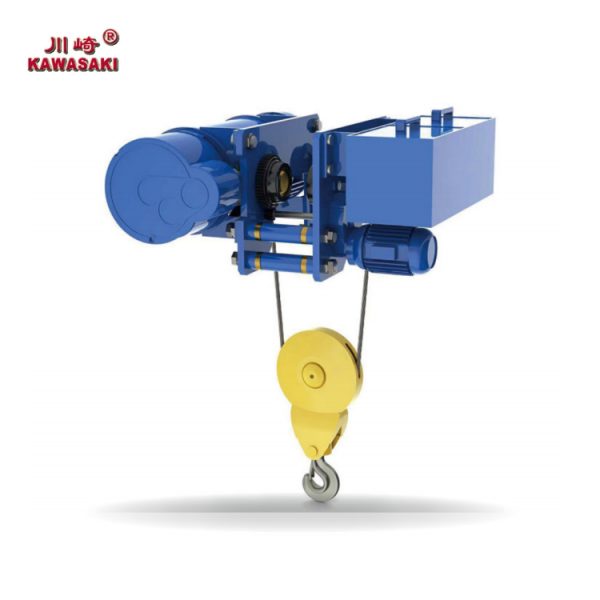

KAWASAKI LOW STATIC AIR TYPE WIRE ROPE ELECTRIC HOIST M3(DJCD/DJMD) M4(FMDJCD/FMDJMD)

KAWASAKI LOW STATIC AIR TYPE WIRE ROPE ELECTRIC HOIST M3(DJCD/DJMD) M4(FMDJCD/FMDJMD)

Product details

Product details

  • High efficiency due to 20% longer service life
  • Optimum utilisation of space thanks to its compact design
  • High availability thanks to low maintenance requirement
  • Fast handling thanks to high hoist speeds
  • Good value for money thanks to comprehensive series features
  • Low-vibration motor for quiet operation
  • Fast-acting brake
  • Gearbox lubricated for life
  • User-friendly bottom block: guard for improved safety
  • Precision geared limit switch
  • Overload protection
lifting capacity t 2 3 5 10 16
Lifting height m 6-12 6-12 6-12 6-12 9-12
Pulley magnification 1/2 1/2 1/2 2/2 1/4
Lifting speed m/min 8(0.8/8) 8(0.8/8) 8(0.8/8) 7(0.7/7) 3.5(0.35/3.5)
Lifting power kw 3.0 4.5 7.5 13 13
Running speed m/min 20 20 20 20 20
Operating power kw 0.4 0.4 0.8 0.8*2 0.8*2
Clearance height 650 650 750 850 1000
Control mode Handle / remote control Handle / remote control Handle / remote control Handle / remote control Handle / remote control
Working level M3/M4 M3/M4 M3/M4 M3/M4 M3/M4
Power supply 3P 380V 50Hz 3P 380V 50Hz 3P 380V 50Hz 3P 380V 50Hz 3P 380V 50Hz
