KAWASAKI MANUAL HOIST CHAIN HOIST CK 10T

Brand customization: OEM, appearance color, logo, etc.
Material customization: chain T80 T100, copper alloy, stainless steel, aluminum alloy
Function customization: 360° operation, stage upside down hoist, load limiting function, with electronic scale, riot-proof, rust-proof
Chain customization: polished and oiled, electro-galvanized, nickel-plated, blackened, Dacromet
Packaging customization: Customized according to customer needs such as: yellow board cartons, color boxes, wooden boxes
Customized minimum order quantity: 100

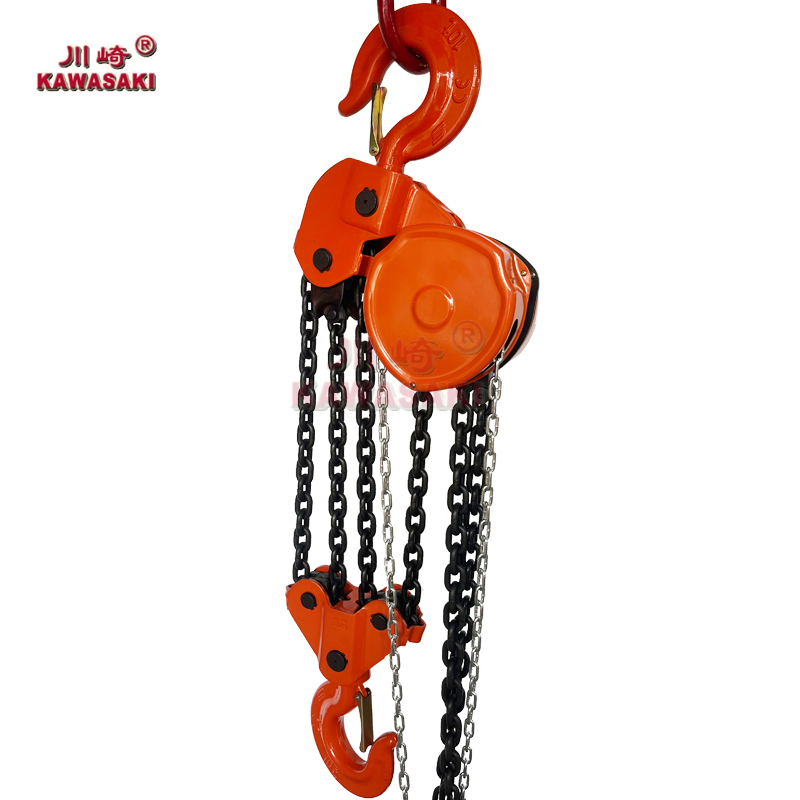

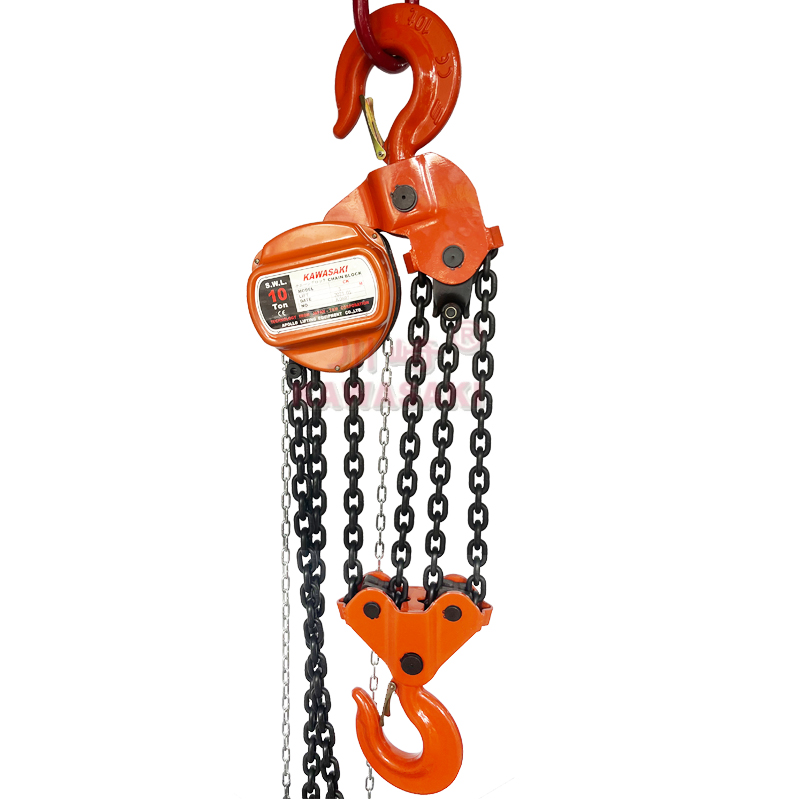

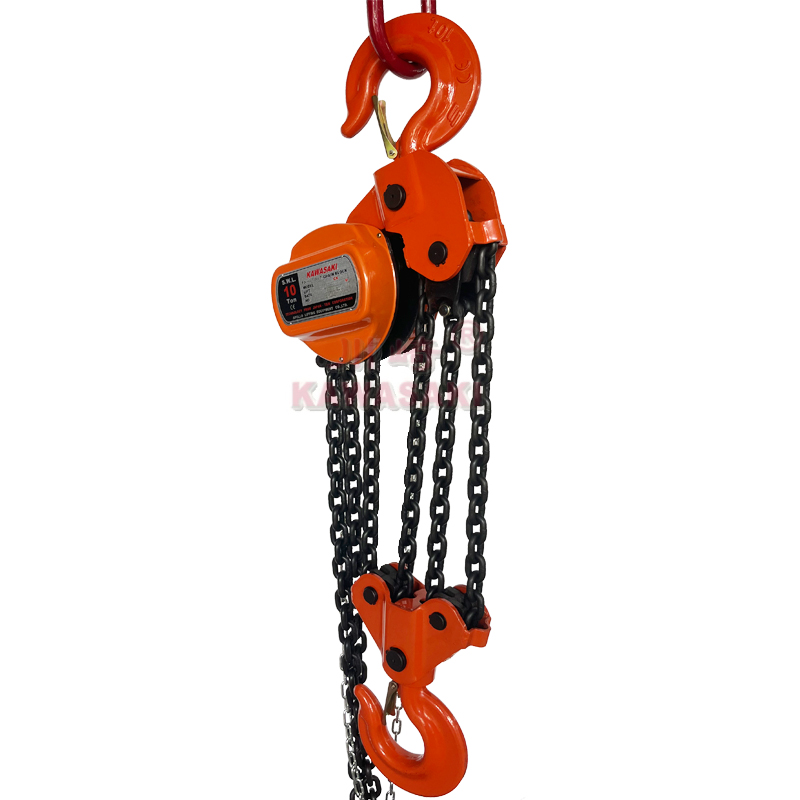

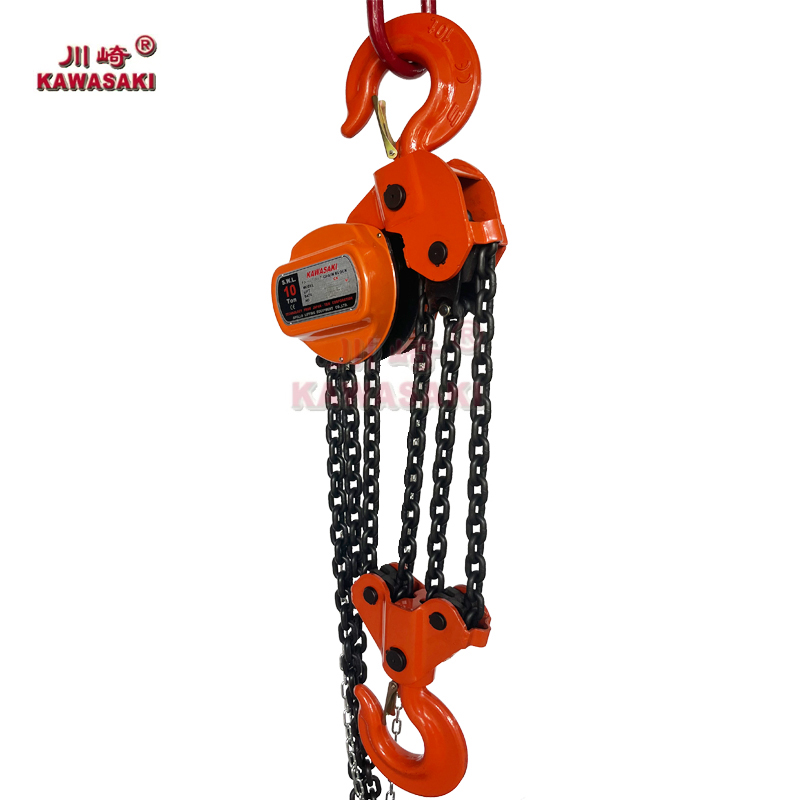

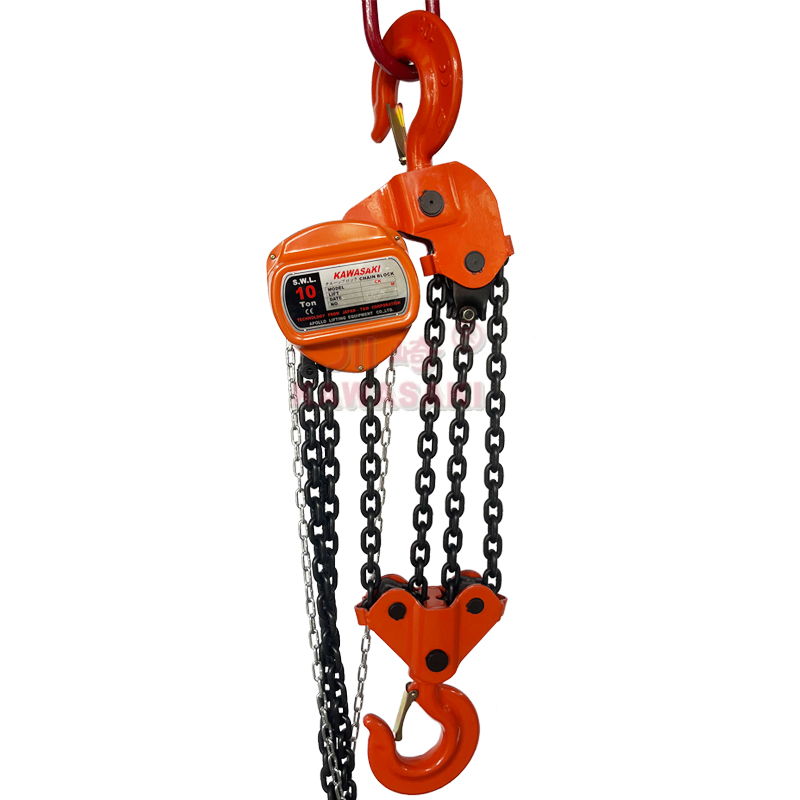

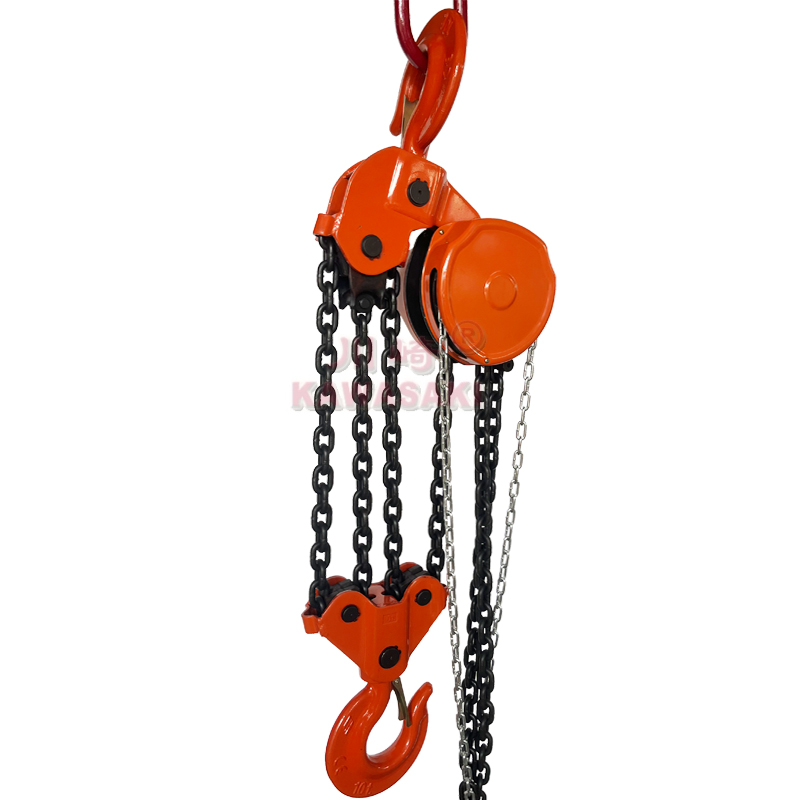

KAWASAKI MANUAL HOIST CHAIN HOIST CK 10T

Brand customization: OEM, appearance color, logo, etc.
Material customization: chain T80 T100, copper alloy, stainless steel, aluminum alloy
Function customization: 360° operation, stage upside down hoist, load limiting function, with electronic scale, riot-proof, rust-proof
Chain customization: polished and oiled, electro-galvanized, nickel-plated, blackened, Dacromet
Packaging customization: Customized according to customer needs such as: yellow board cartons, color boxes, wooden boxes
Customized minimum order quantity: 100

Product details

Product details

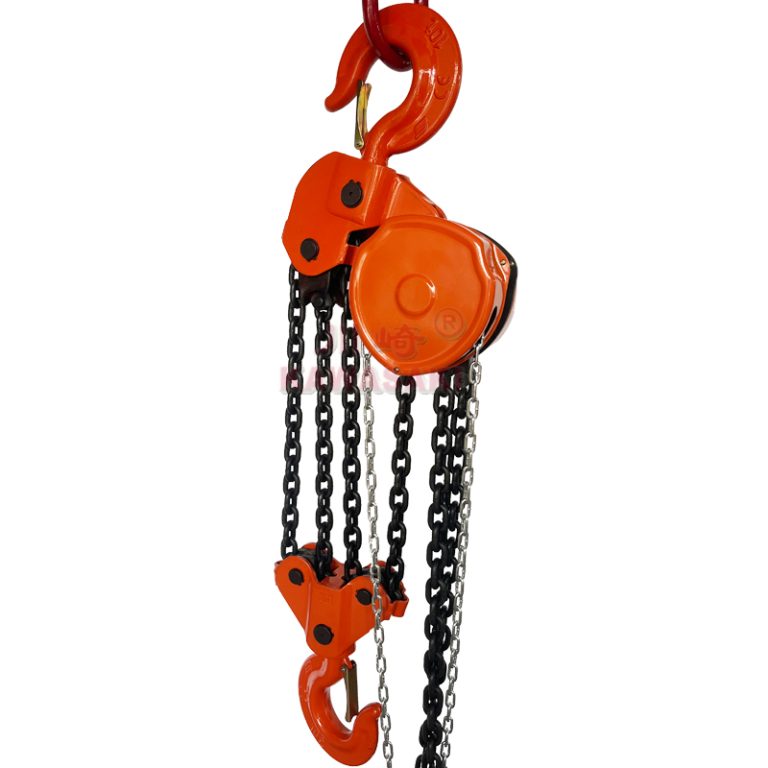

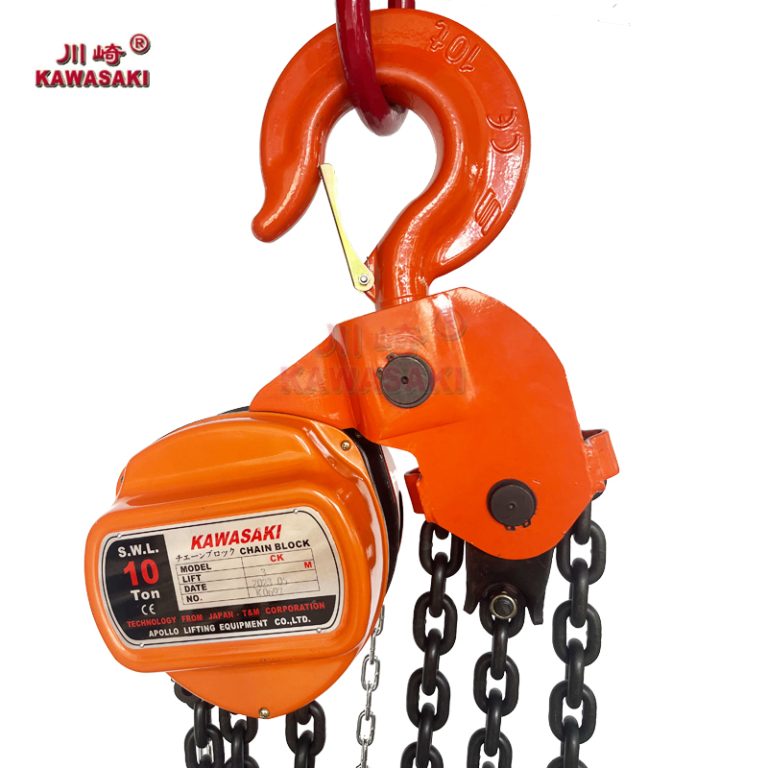

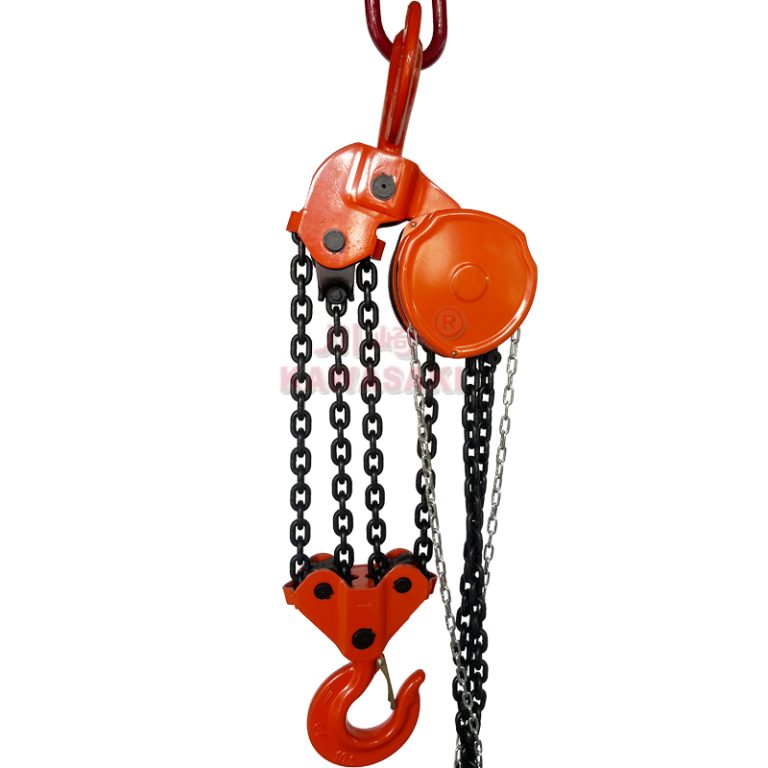

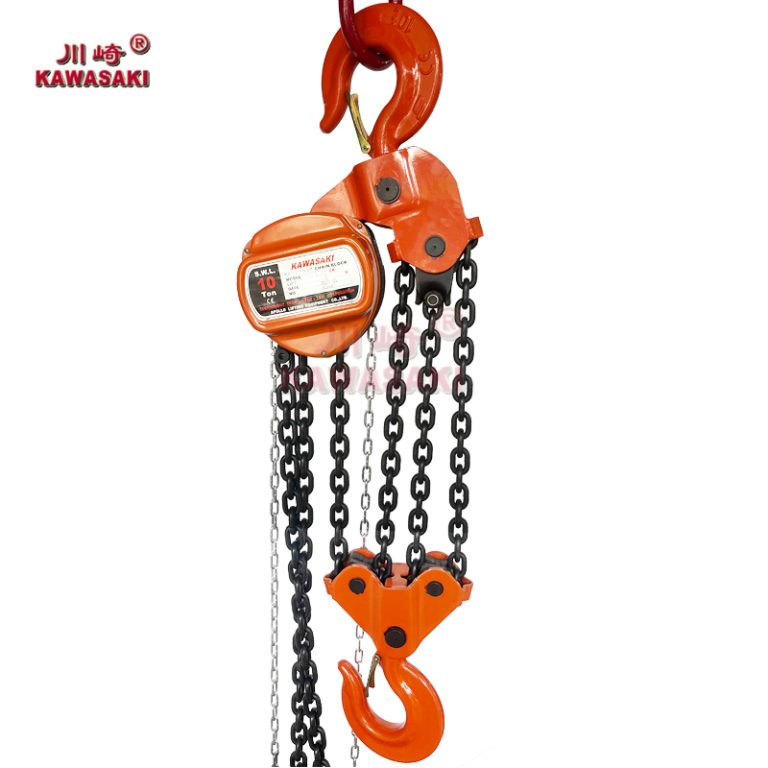

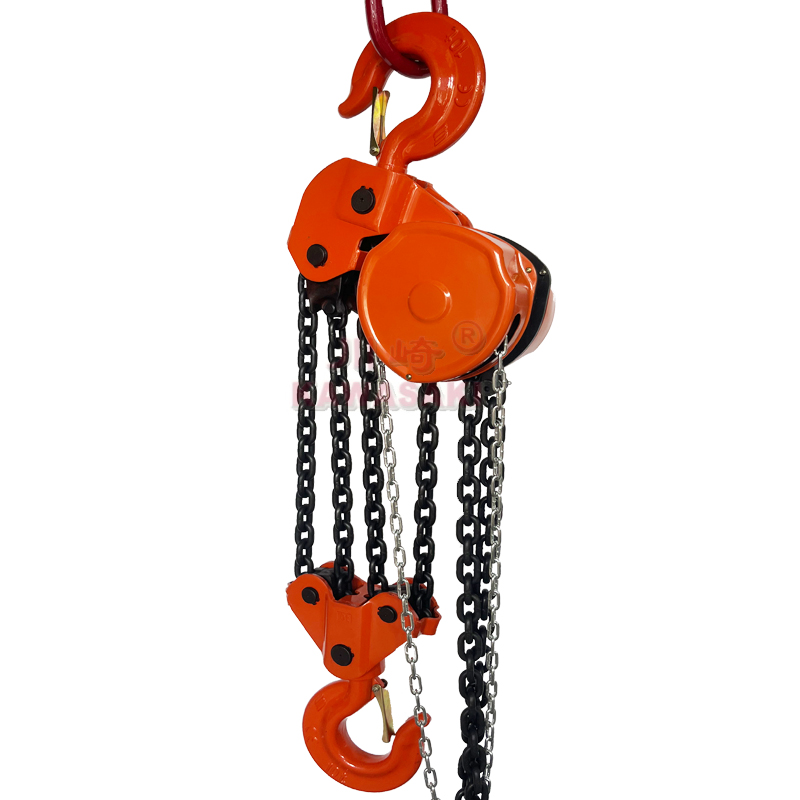

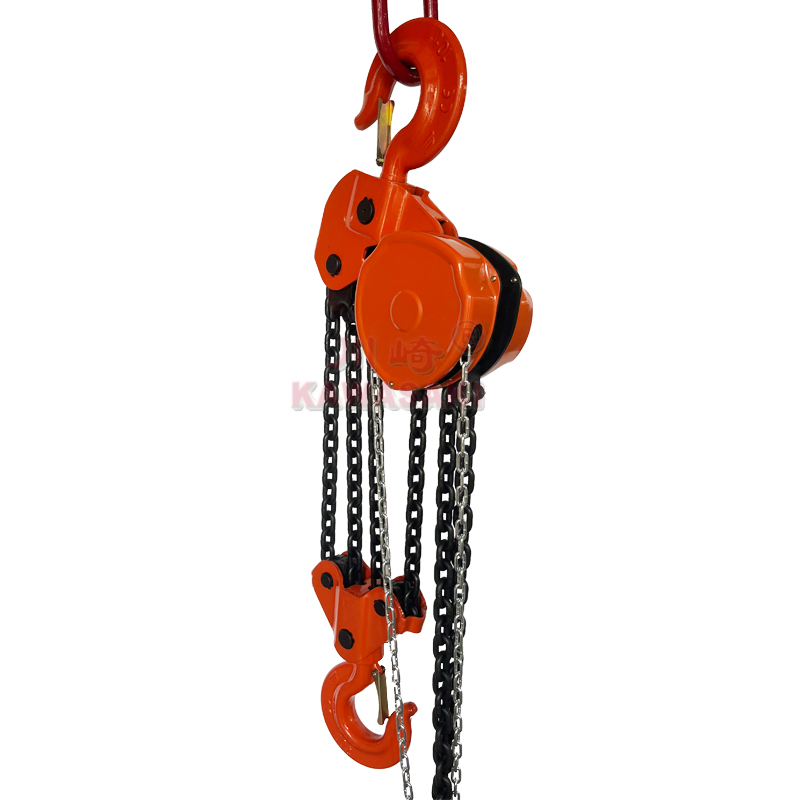

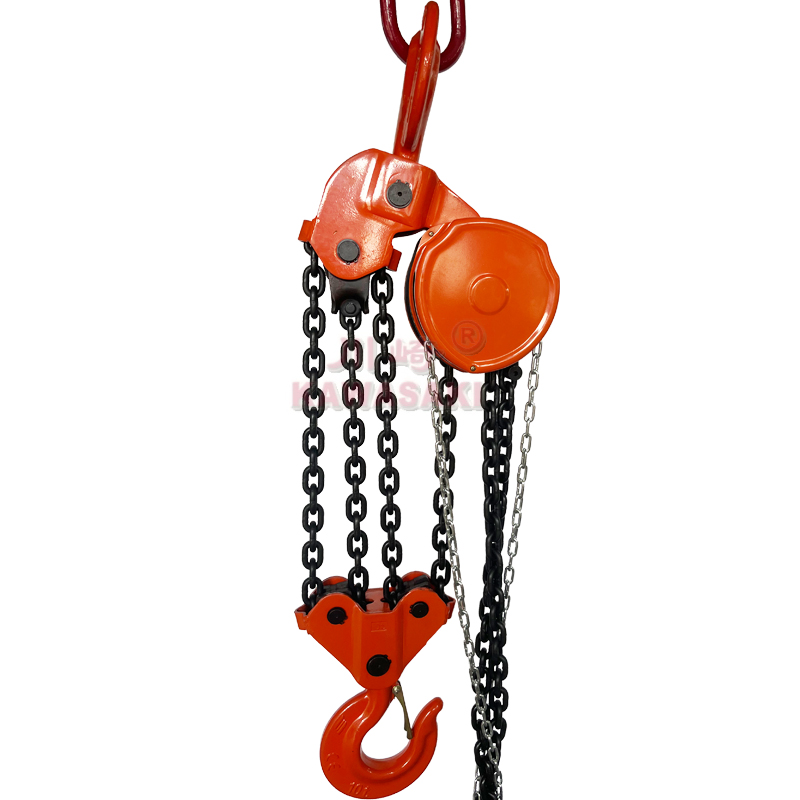

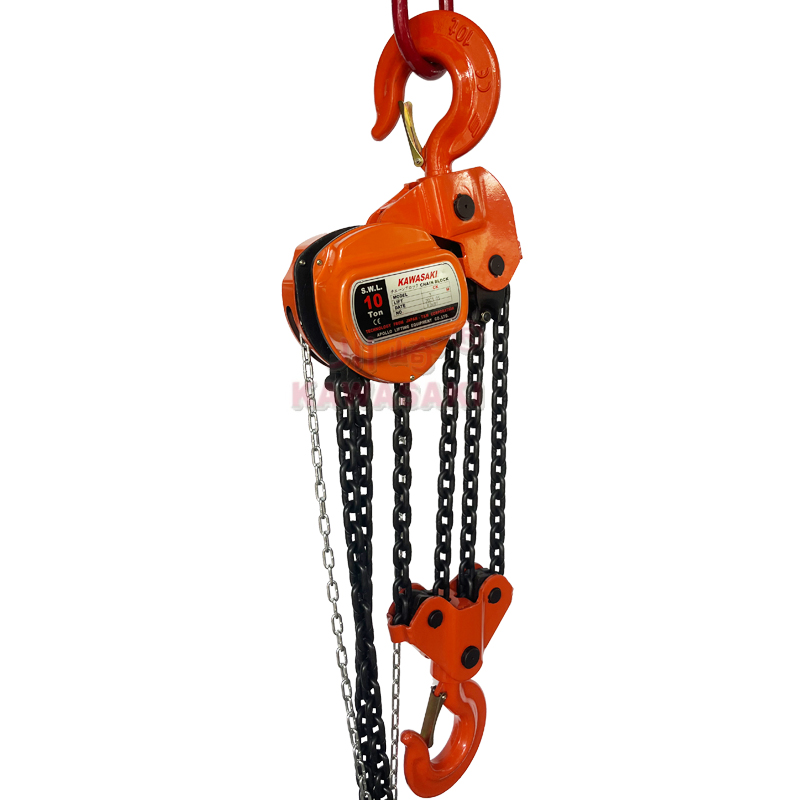

The CK Series Chain Hoist is a portable lifting device operated by hand chain. It is suitable for use in factories, mines, farms,construction sites, wharves,docks and warehouses for installation of equipment, as well as for loading and unloading goods. It is specially advantageous for lifting work in the open air and places where no power supply is available. The chain hoist can be attached to a trolly of any type as a traveling chain houst. It is suitable to monorail overhead conveying system,hand travelling crane and jib crane.
• Safe,reliable in operation with minimum maintenance
• High efficiency and small handpull
• Light weight and easy handling
•Safety factor:4 to 1
• Fatigue tested at 1.5 times of working load limit to 2000 cycles
•Safety factor:4 to 1
• Standard: EN 13157

Mode CK-0.5 CK-1 CK-1.5 CK-2 CK-3 CK-5 CK-10 CK-20
Capacity(t) 0.5 1 1.5 2 5 5 16 20
Standard lift(m) 3 3 3 3 3 3 3 3
Running test load(t) 0.75 1.5 2.25 3 4.5 6.25 12.5 25
Headroom(drawn close
up)Hmin(mm
258 274 347 444 486 616 700 1000
Effort required to lift
max.load(N)
221 304 343 294 343 382 392 392
No.of coluns of load
chain
1 1 1 1 2 2 4 8
Load chain dia.(mm 6 6 8 8 8 10 10 10
Dimensions(
mm)
A 125 147 183 215 183 215 360.5 585
B 111 126 141 163 141 163 163 191
C 24 28 34 38 38 48 64 82
D 134 154 192 224 192 224 224 224
Net weight(kg) 8 10 16 27 24 36 68 156
