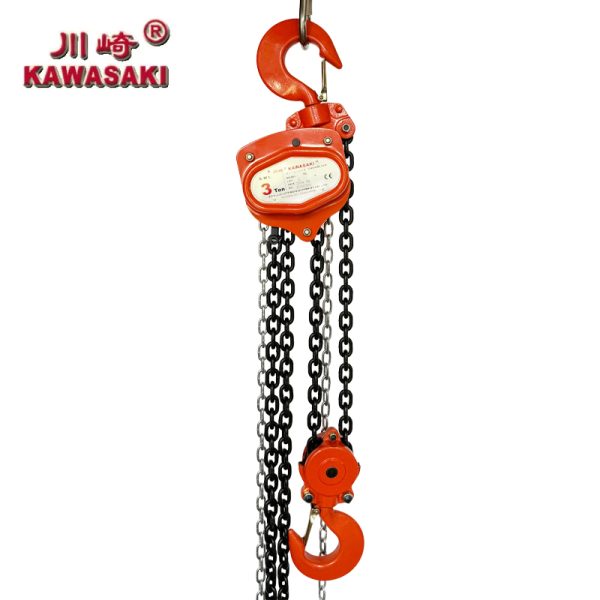

KAWASAKI MANUAL HOIST CHAIN HOIST TD 3T

Brand customization: OEM, appearance color, logo, etc.
Material customization: chain T80 T100, copper alloy, stainless steel, aluminum alloy
Function customization: 360° operation, stage upside down hoist, load limiting function, with electronic scale, riot-proof, rust-proof
Chain customization: polished and oiled, electro-galvanized, nickel-plated, blackened, Dacromet
Packaging customization: Customized according to customer needs such as: yellow board cartons, color boxes, wooden boxes
Customized minimum order quantity: 100

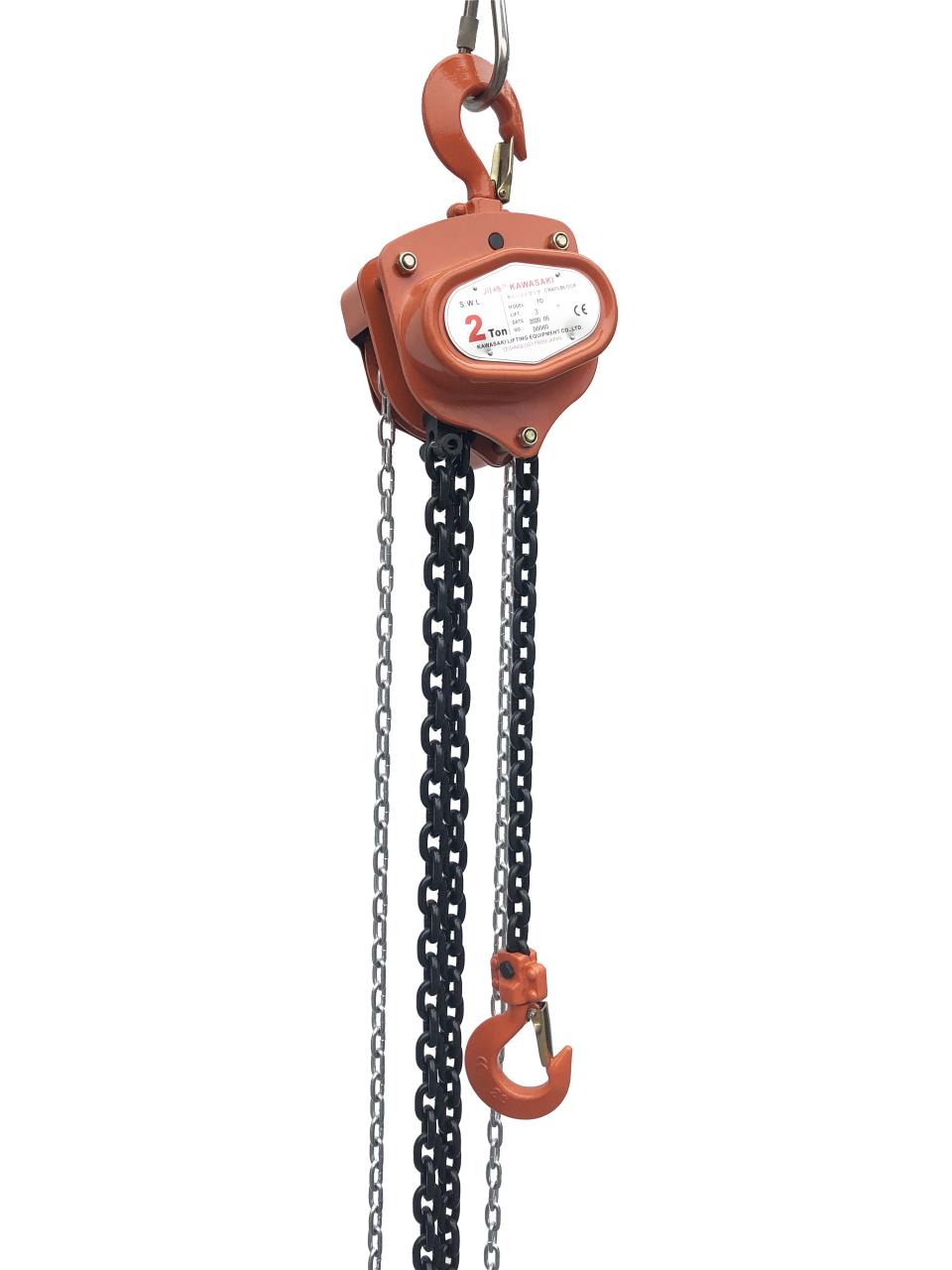

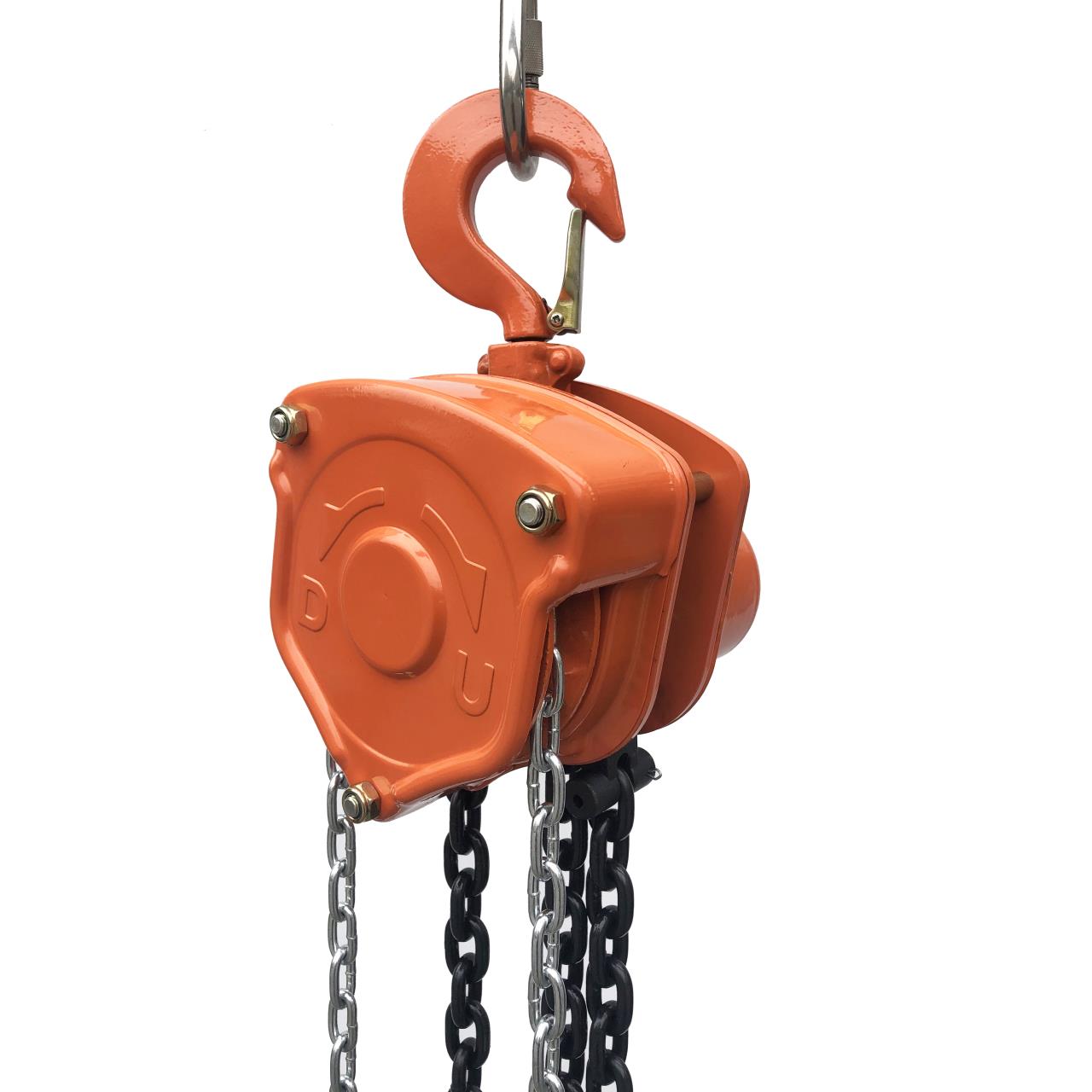

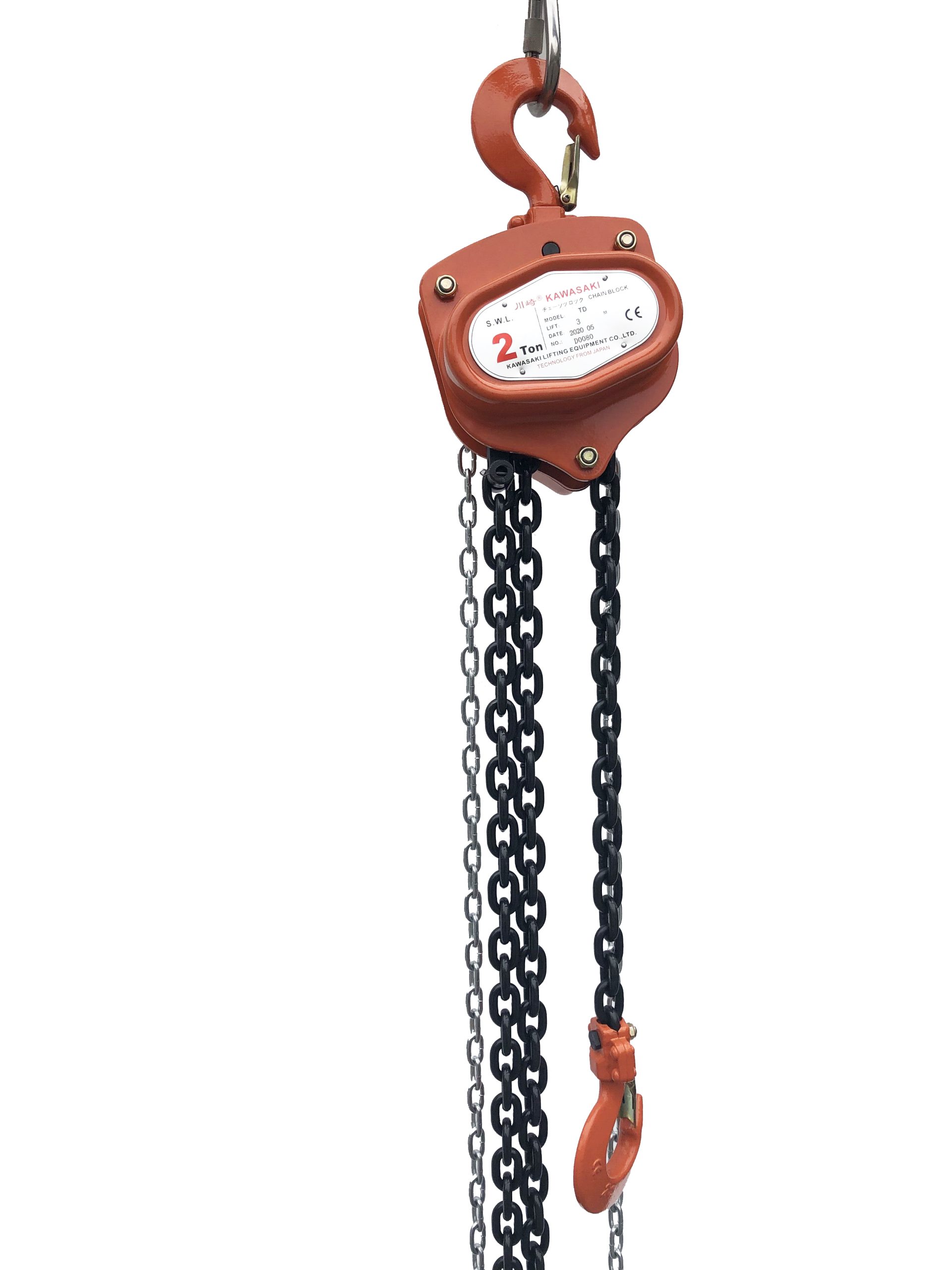

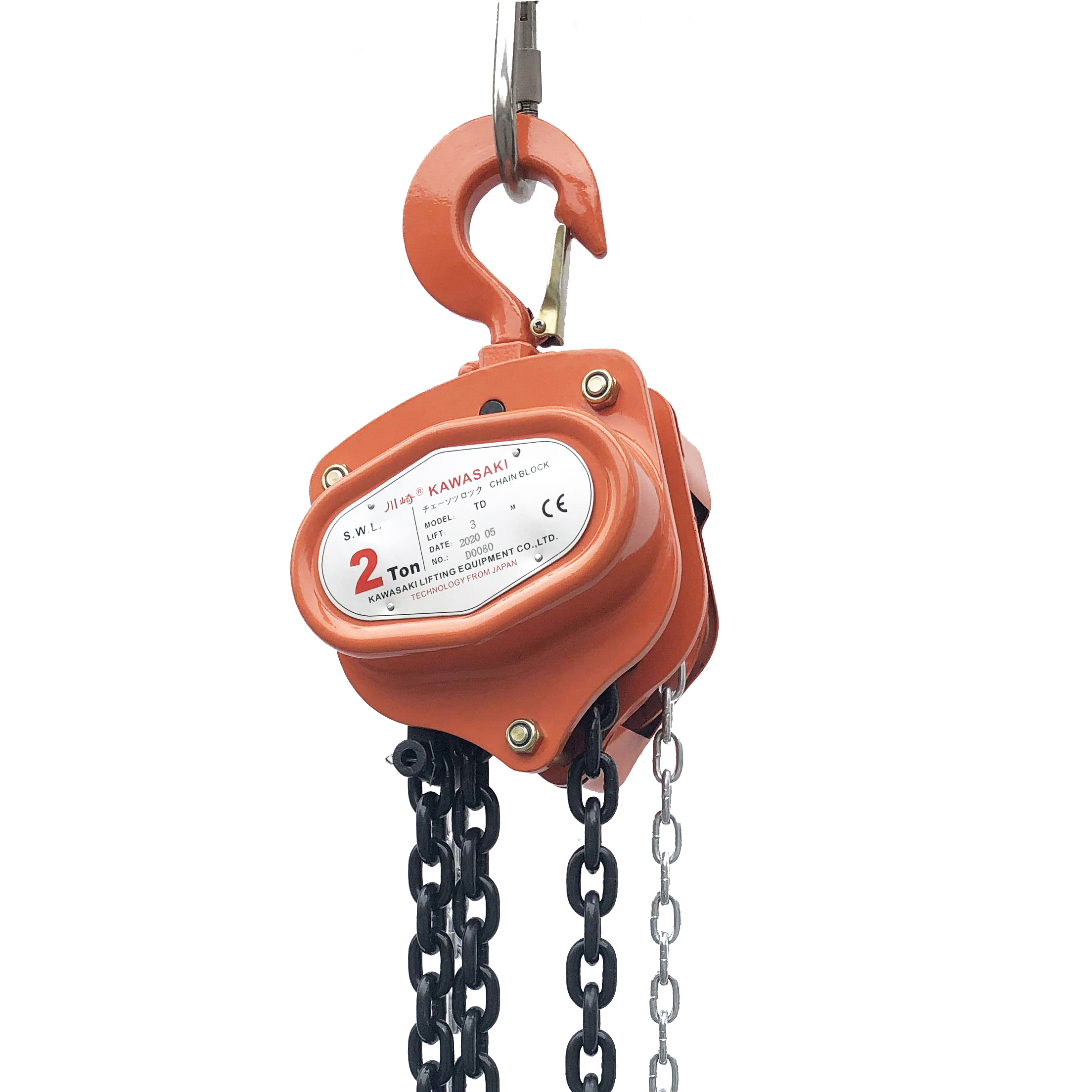

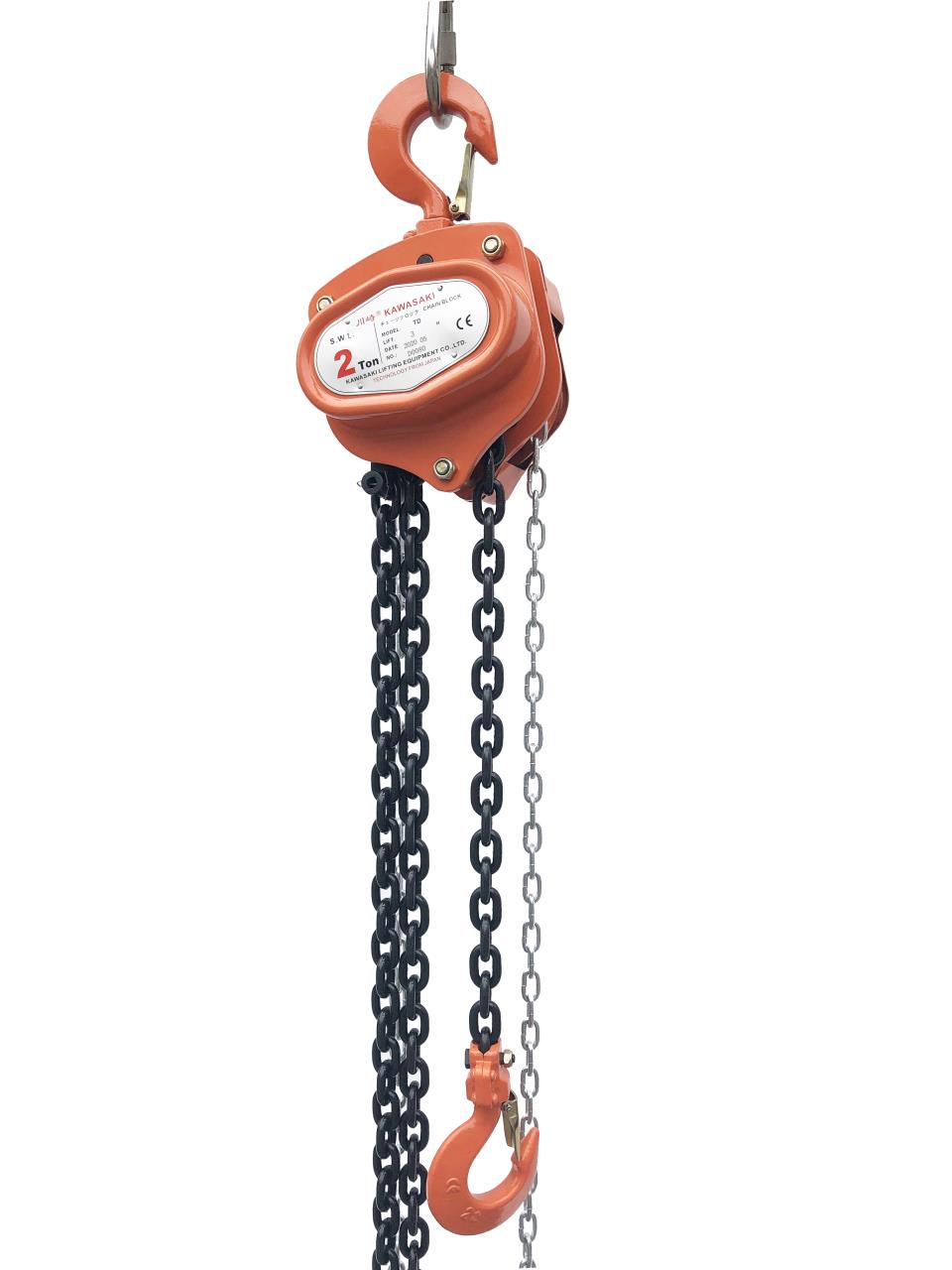

KAWASAKI MANUAL HOIST CHAIN HOIST TD 3T

Brand customization: OEM, appearance color, logo, etc.
Material customization: chain T80 T100, copper alloy, stainless steel, aluminum alloy
Function customization: 360° operation, stage upside down hoist, load limiting function, with electronic scale, riot-proof, rust-proof
Chain customization: polished and oiled, electro-galvanized, nickel-plated, blackened, Dacromet
Packaging customization: Customized according to customer needs such as: yellow board cartons, color boxes, wooden boxes
Customized minimum order quantity: 100

Product details

Product details

The TD Series Chain Hoist is a portable lifting device operated by hand chain. It is suitable for use in factories, mines, farms,construction sites, wharves,docks and warehouses for installation of equipment, as well as for loading and unloading goods. It is specially advantageous for lifting work in the open air and places where no power supply is available. The chain hoist can be attached to a trolly of any type as a traveling chain houst. It is suitable to monorail overhead conveying system,hand travelling crane and jib crane.

• Safe,reliable in operation with minimum maintenance
• High efficiency and small handpull
• Double-pawl brake system desigend for safety and reliable
•Roll-edge han wheel cover and two hand chain guides ensure smooth operation of the hand chain
•Double enclosure of the brake mechanism to keep out rain water and dust
•Safety factor:4 to 1
• Standard: EN 13157
• Fatigue tested at 1.5 times of working load limit to 2000 cycles



Model Capacity
(T)
Standard Lift
(m)
Running test
(T)
Effort required to lift
max load (N)
No.of falls of
load chain
Load chain
diameter(mm)
Dimension(mm) Net weight
(kg)
A B D H
TD-0.5T 0.5 2.5 0.75 300 1 6 137 137.5 35 270 8.4
TD-1T 1 2.5 1.5 330 1 6 162 146.5 35.5 317 11
TD-1.5T 1.5 2.5 2.25 360 1 8 183 170 45 399 16.2
TD-2T 2 3 3 365 1 8 194 170 42.5 414 18.5
TD-3T 3 3 4.5 385 2 8 220 170 50 465 25.6
TD-5T 5 3 7.5 435 2 10 288 191 64 618 42.8
TD-10T 10 3 15 435 4 10 384 195 85 798 79.5
TD-20T 20 3 30 435*2 8 10 625 209 110 890 193
TD-30T 30 3 45 435*2 12 10 691 312 110 1380 220
TD-50T 50 3 75 435*2 22 10 958 496 170 2578 1092
