KAWASAKI MANUAL HOIST CHAIN HOIST VC

Brand customization: OEM, appearance color, logo, etc.
Material customization: chain T80 T100, copper alloy, stainless steel, aluminum alloy
Function customization: 360° operation, stage upside down hoist, load limiting function, with electronic scale, riot-proof, rust-proof
Chain customization: polished and oiled, electro-galvanized, nickel-plated, blackened, Dacromet
Packaging customization: Customized according to customer needs such as: yellow board cartons, color boxes, wooden boxes
Customized minimum order quantity: 100

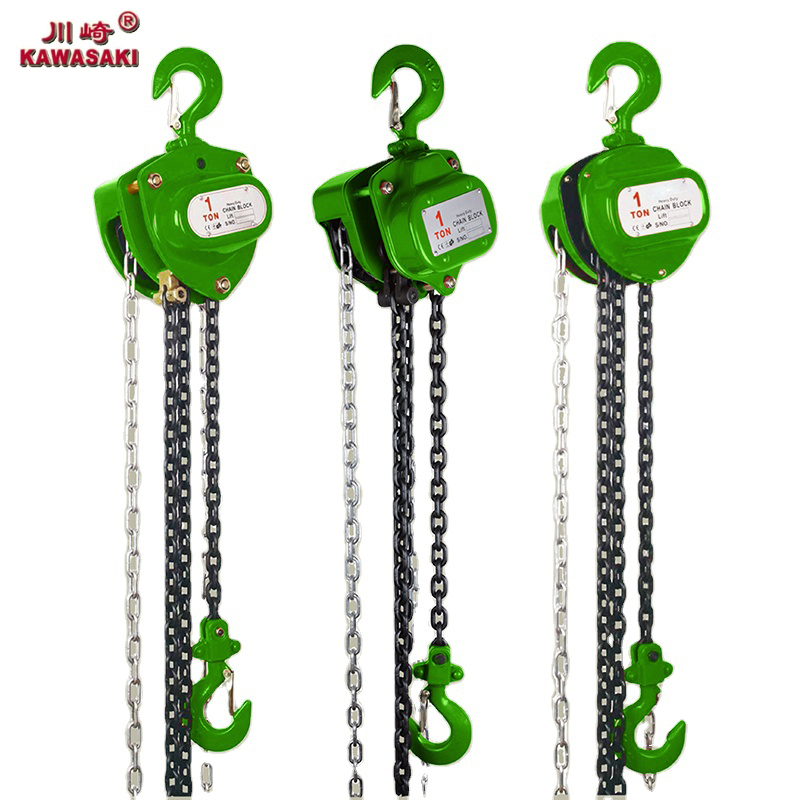

KAWASAKI MANUAL HOIST CHAIN HOIST VC

Brand customization: OEM, appearance color, logo, etc.
Material customization: chain T80 T100, copper alloy, stainless steel, aluminum alloy
Function customization: 360° operation, stage upside down hoist, load limiting function, with electronic scale, riot-proof, rust-proof
Chain customization: polished and oiled, electro-galvanized, nickel-plated, blackened, Dacromet
Packaging customization: Customized according to customer needs such as: yellow board cartons, color boxes, wooden boxes
Customized minimum order quantity: 100

Product details

Product details

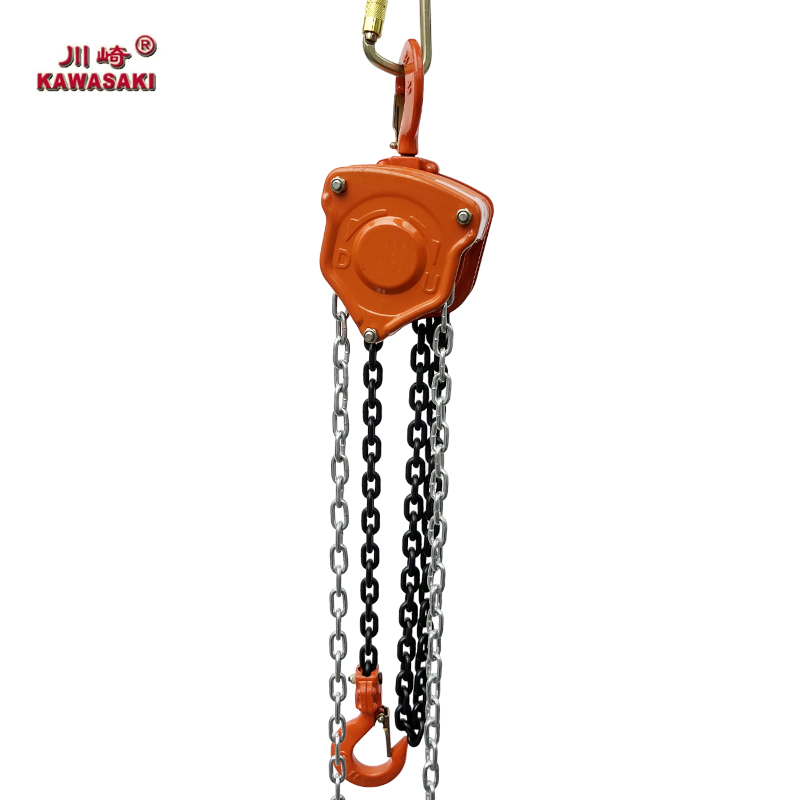

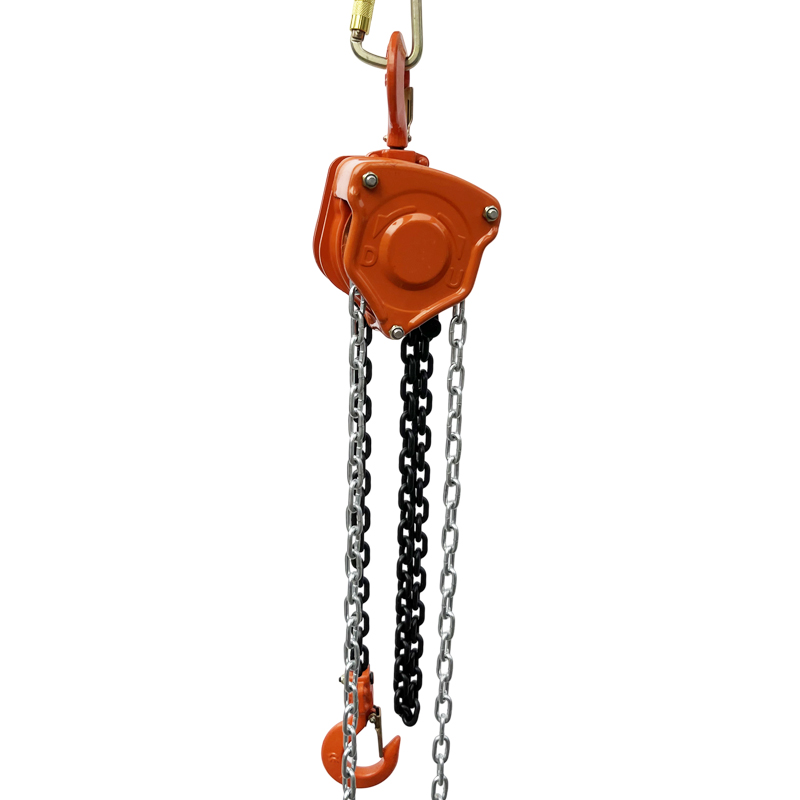

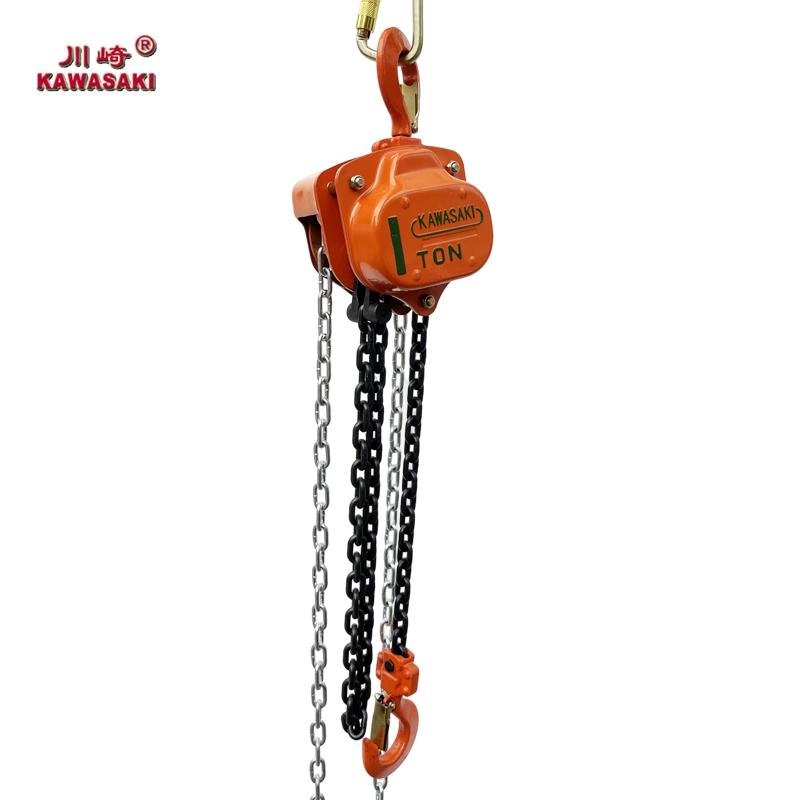

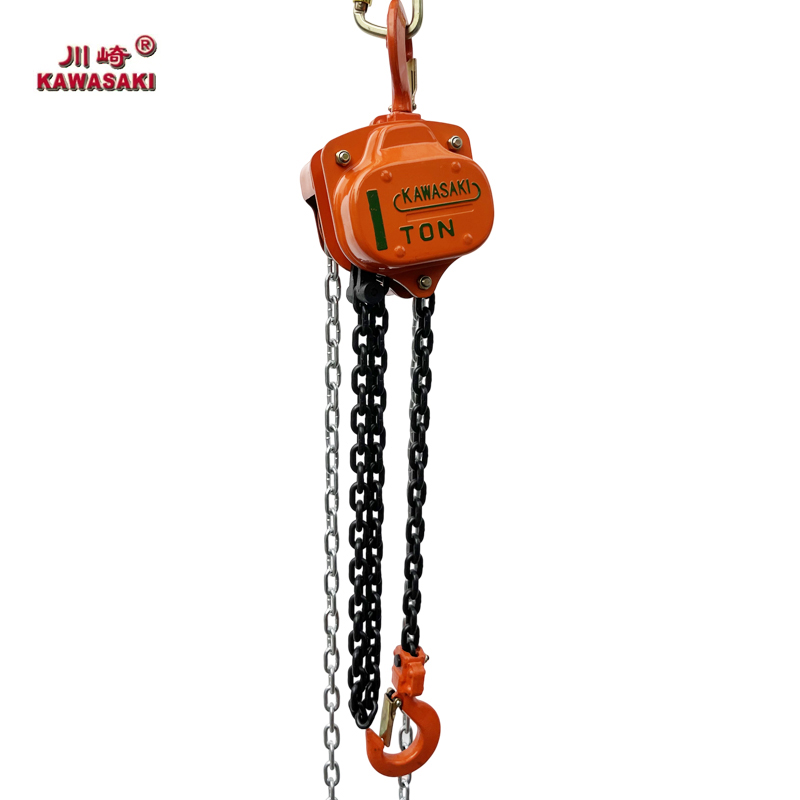

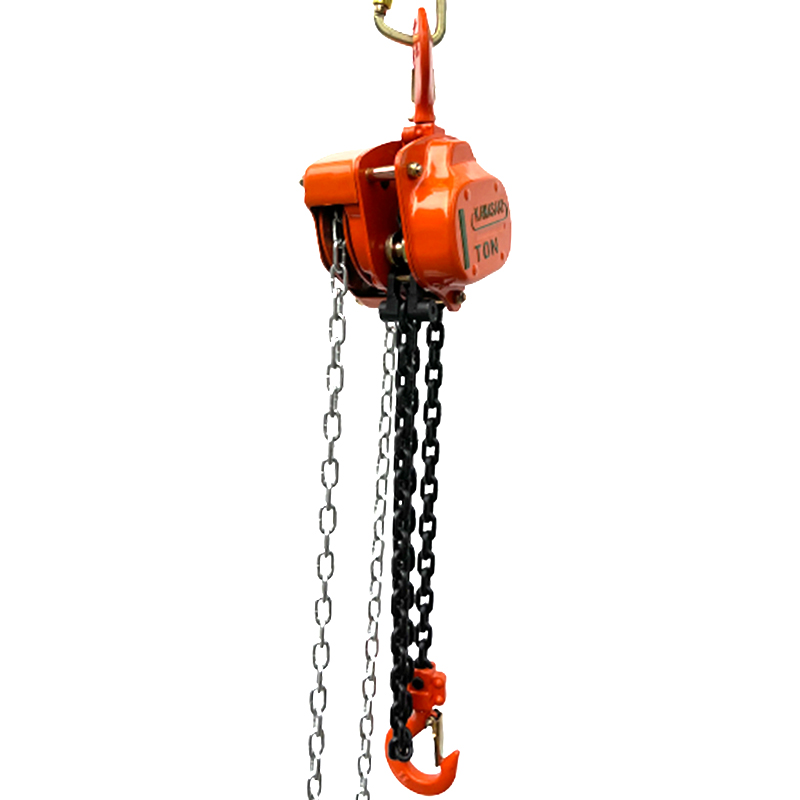

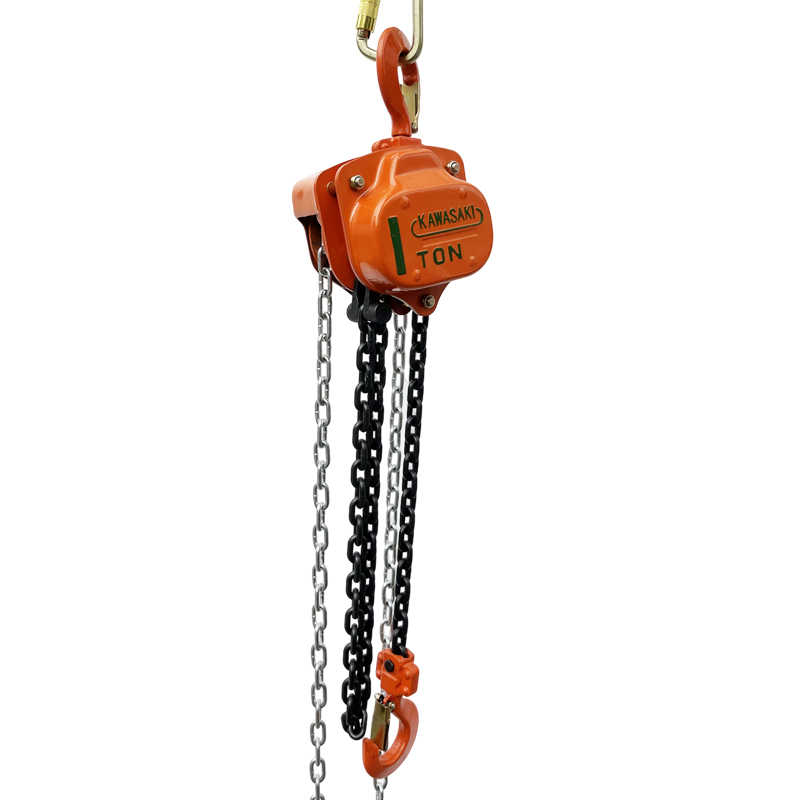

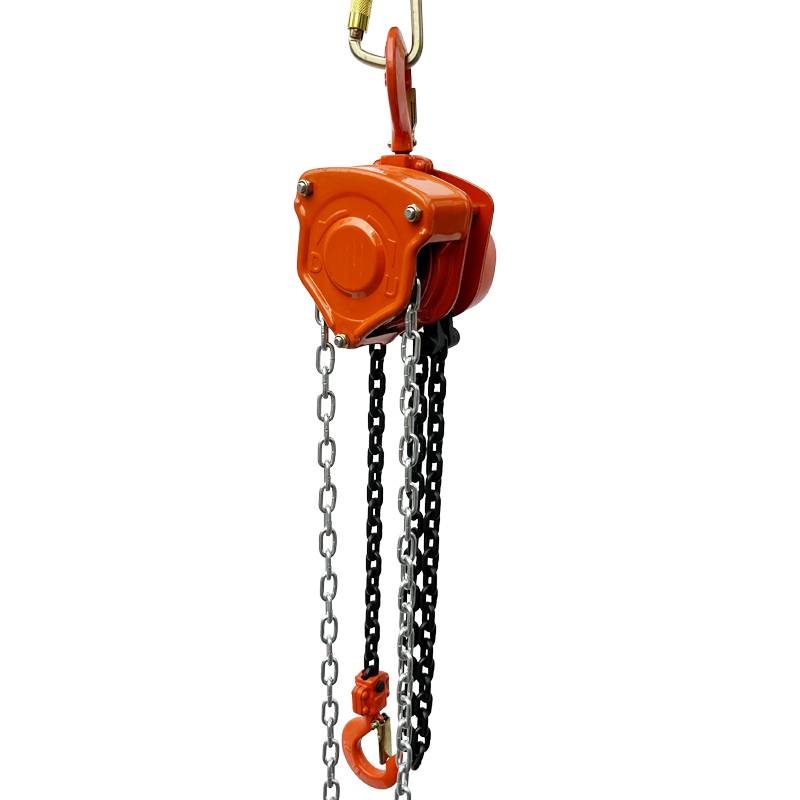

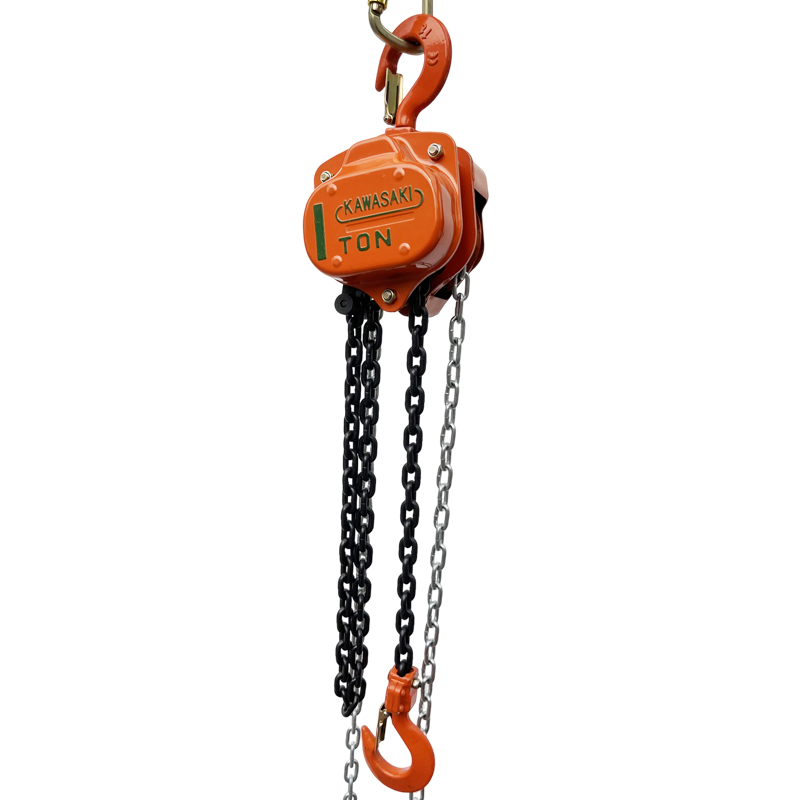

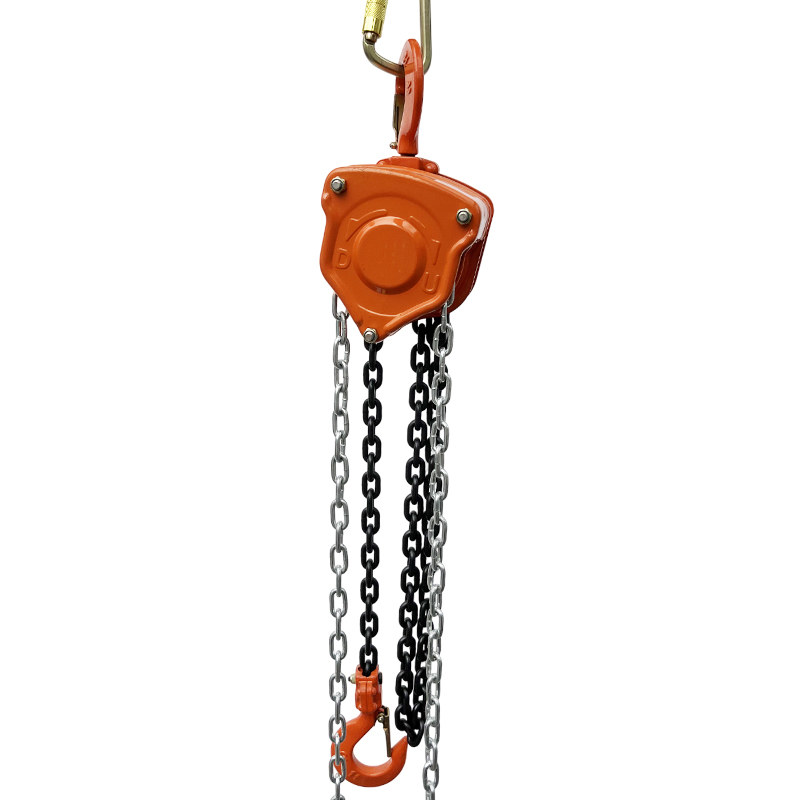

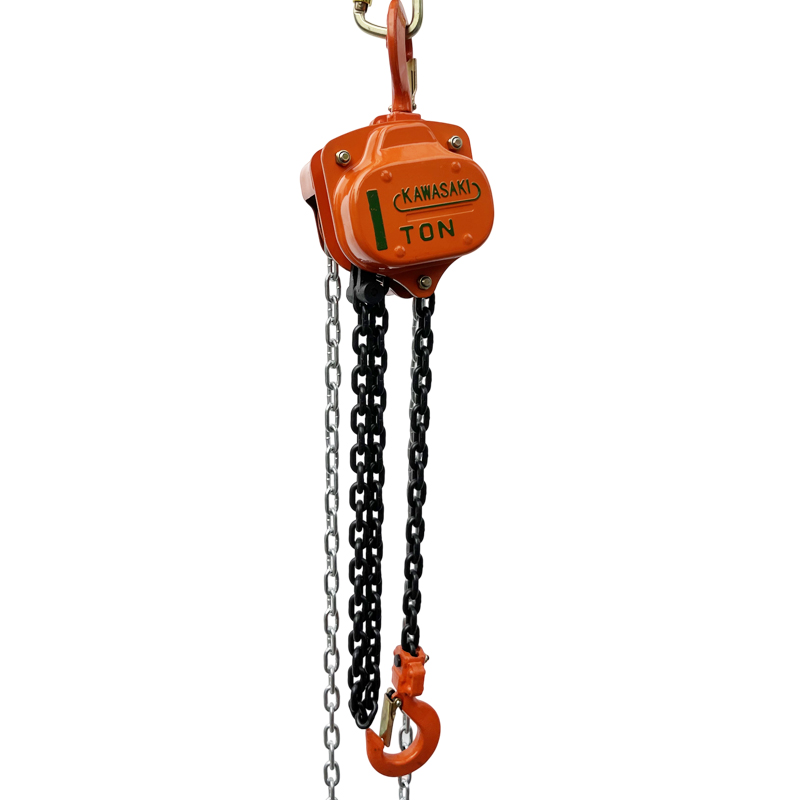

The VC Series Chain Hoist is a portable lifting device operated by hand chain. It is suitable for use in factories, mines, farms,construction sites, wharves,docks and warehouses for installation of equipment, as well as for loading and unloading goods. It is specially advantageous for lifting work in the open air and places where no power supply is available. The chain hoist can be attached to a trolly of any type as a traveling chain houst. It is suitable to monorail overhead conveying system,hand travelling crane and jib crane.
• Safe,reliable in operation with minimum maintenance
• High efficiency and small handpull
• Double-pawl brake system desigend for safety and reliable
•Heat treated steel plates,gears and shafts for enhanced strength; Forget upper,lower hooks with forged steel safety latches; High Tensile Alloy Steel Chain.
•Safety factor: 4 to 1
• Fatigue tested at 1.5 times of working load limit to 2000 cycles
• Standard: EN 13157

Model Capacity
(T)
Standard Lift
(m)
Running
test (T)
Effort required
to lift max load(N)
No.of falls of
load chain
Load chain
diameter(mm)
 Dimension(mm Net weight
(kg)
Packing
(L*W*H)(cm)
A B  D H
VC-0.5T 0.5 2.5 0.75 350 1 5 126 145  28 285 8.4 22*14*15
VC-1T 1 2.5 1.5 330 1 6.3 151 159  32 315 12 25*19*16
VC-1.5T 1.5 2.5 2.25 348 1 7.1 151 178  36 340 16.2 33*24*16
VC-2T 2 3 3 365 1 8 183 205  36 380 20 33*24*19
VC-3T 3 3 4.5 360 2 7.1 151 208  46 475 24 34.5*24*16
VC-5T 5 3 7.5 410 2 9 183 264  46 600 41 40*30*19
VC-10T 10 3 15 410 4 9 188 398  57 720 79 48*42*18.5
VC-15T 15 3 22.5 435 6 9 190 580  75 870 120 69*56*20
VC-20T 20 3 30 435*2 8 9 192 630  82 890 193 78*68*20
VC-30T 30 3 45 435*2 12 9 330 670  106 1000 220 85*67*30
VC-50T 50 3 75 435*2 22 9 410 900  130 1950 1092 110*100*130
