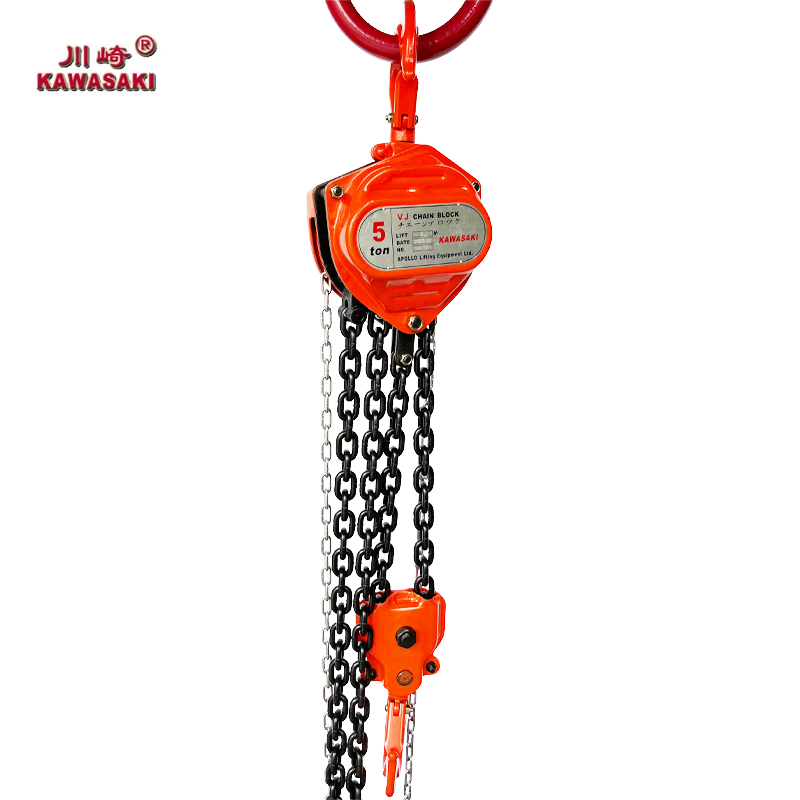

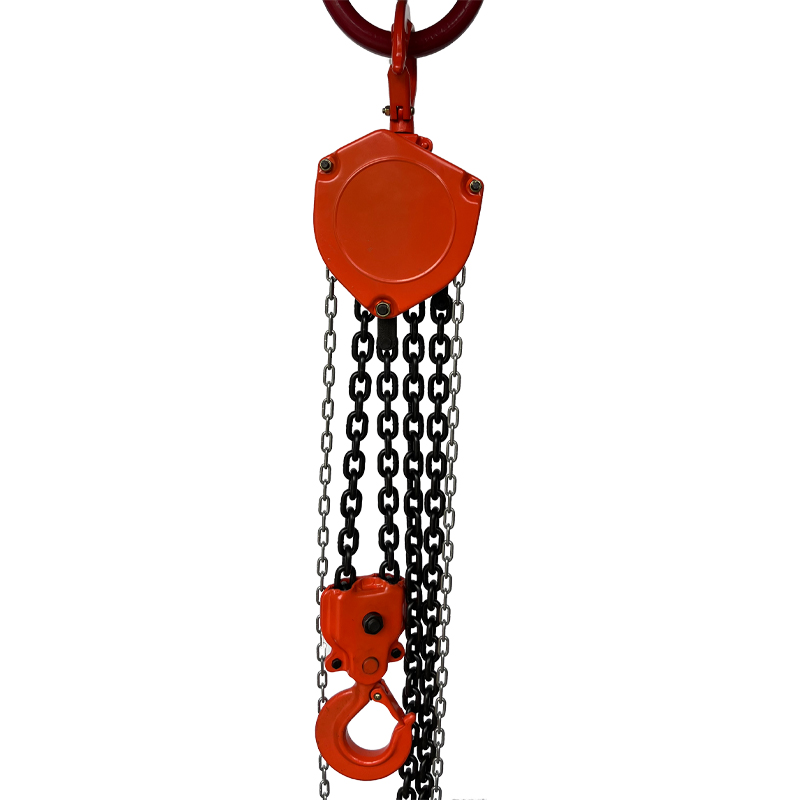

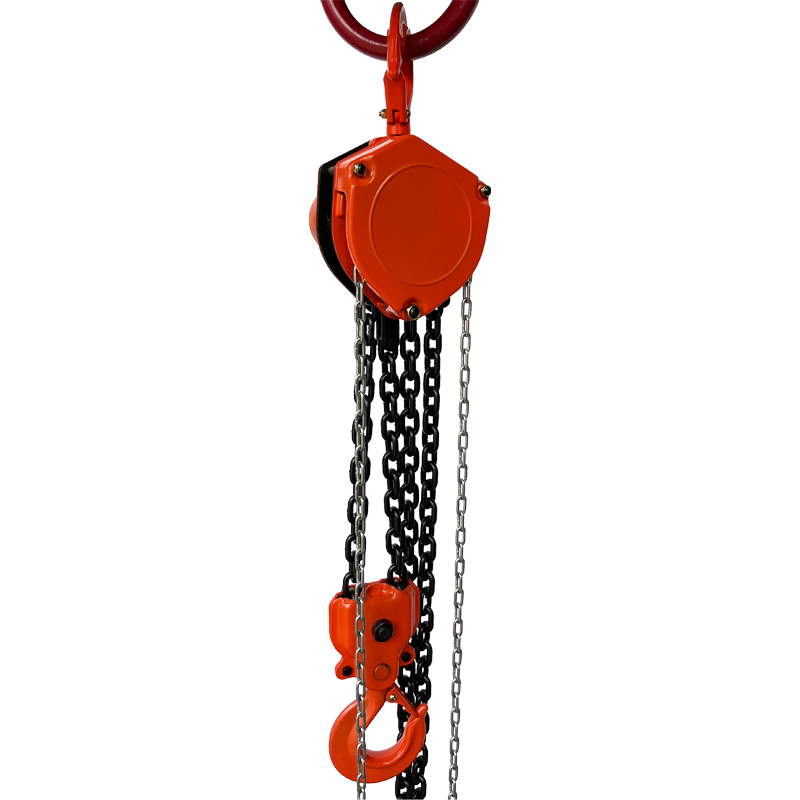

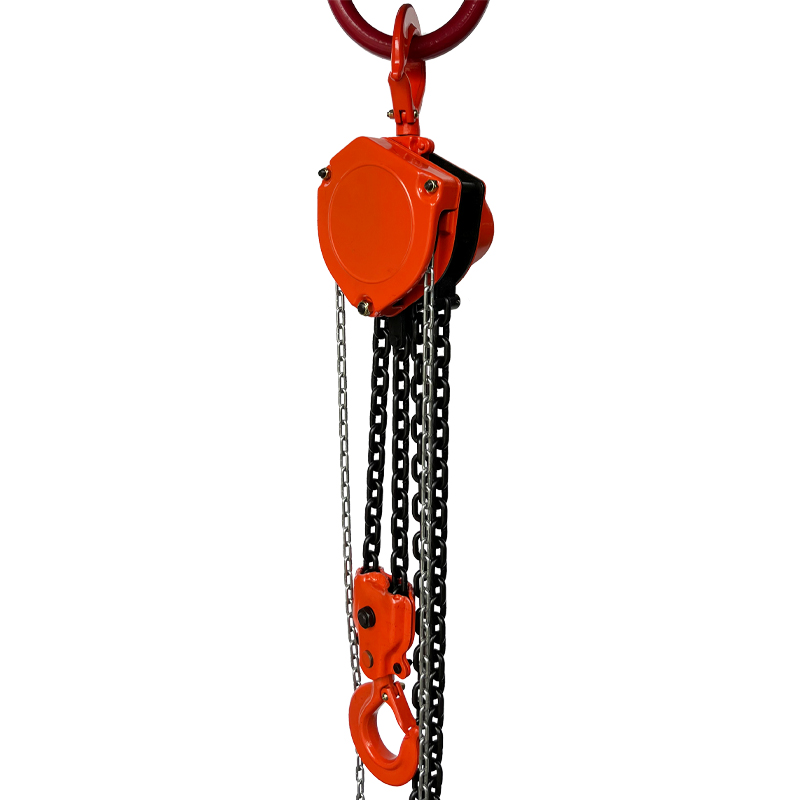

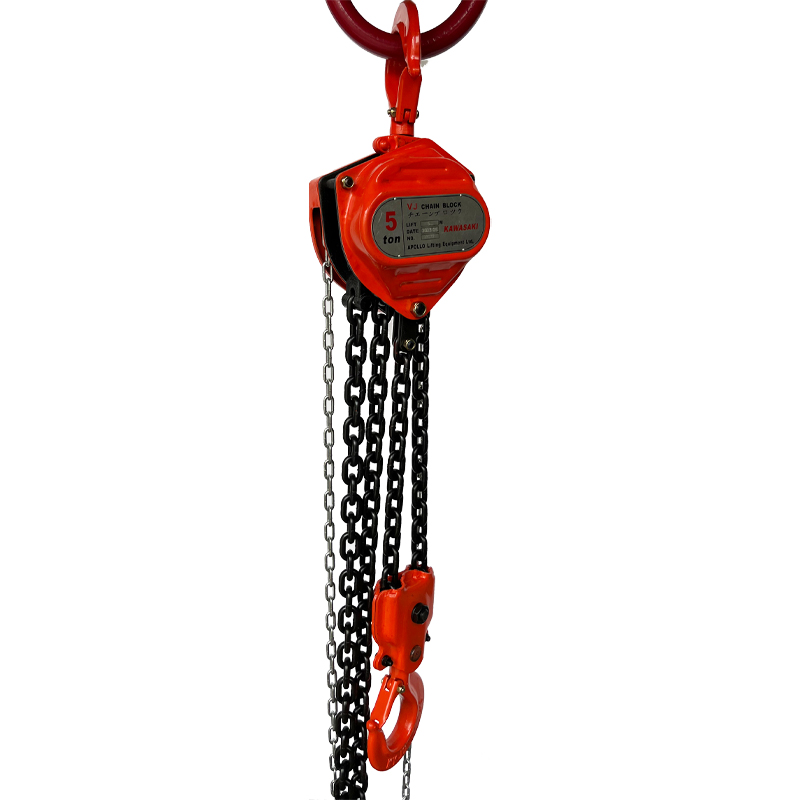

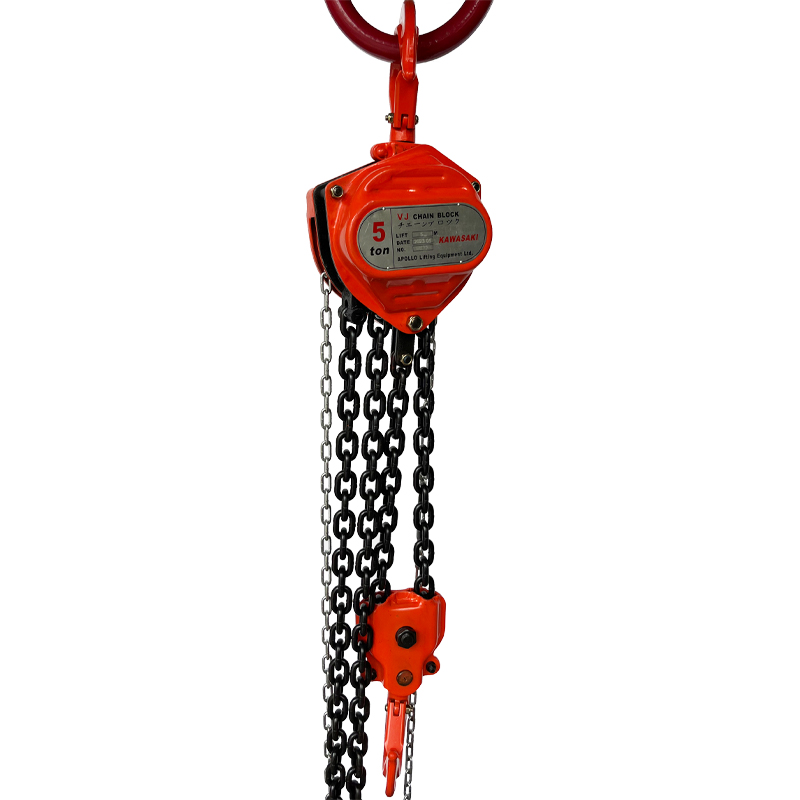

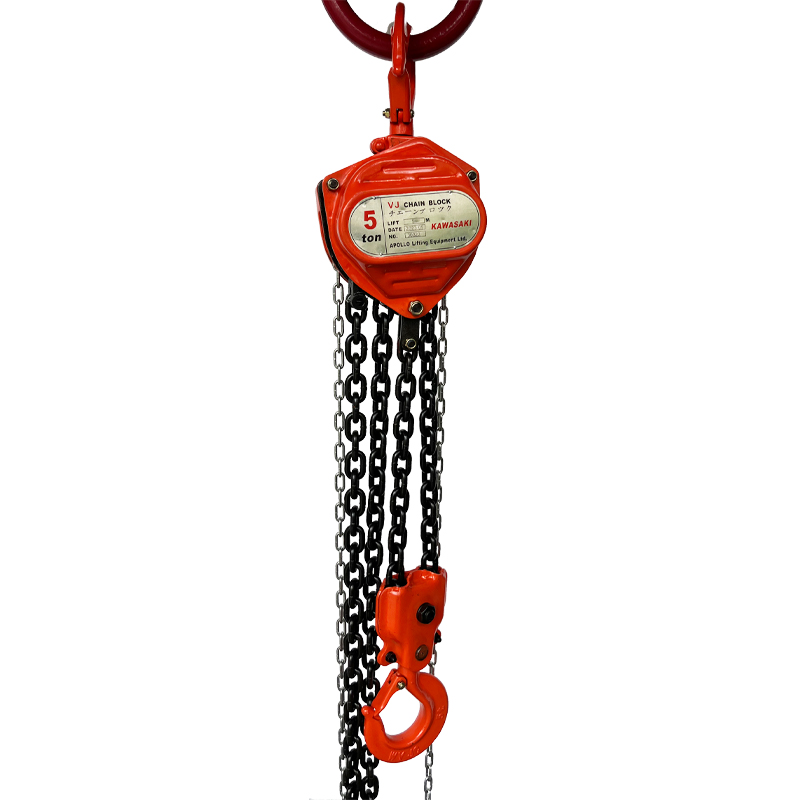

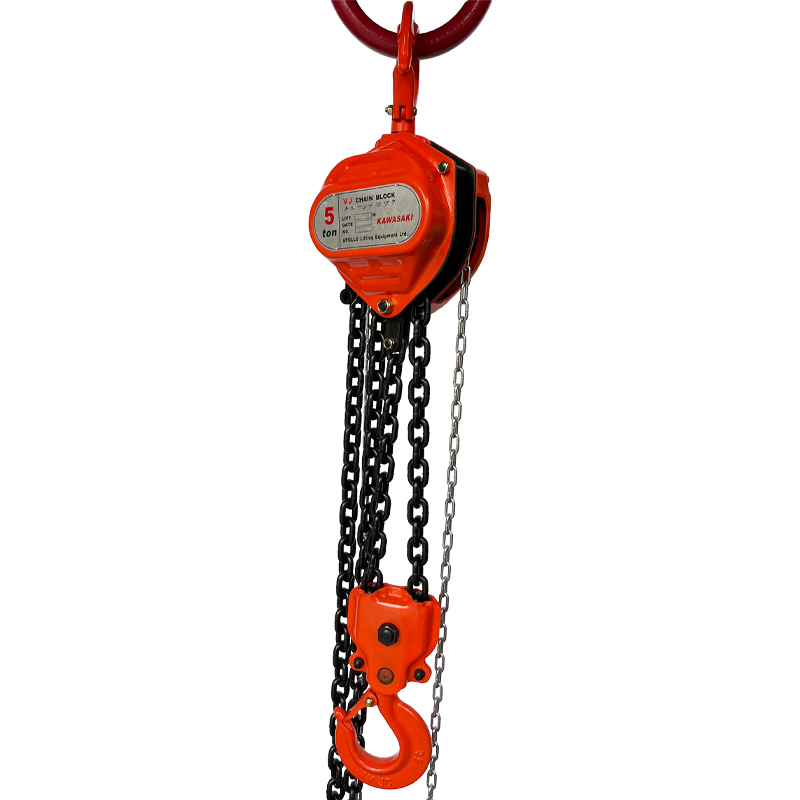

KAWASAKI MANUAL HOIST CHAIN HOIST VJ 5T

Brand customization: OEM, appearance color, logo, etc.
Material customization: chain T80 T100, copper alloy, stainless steel, aluminum alloy
Function customization: 360° operation, stage upside down hoist, load limiting function, with electronic scale, riot-proof, rust-proof
Chain customization: polished and oiled, electro-galvanized, nickel-plated, blackened, Dacromet
Packaging customization: Customized according to customer needs such as: yellow board cartons, color boxes, wooden boxes
Customized minimum order quantity: 100

KAWASAKI MANUAL HOIST CHAIN HOIST VJ 5T

Brand customization: OEM, appearance color, logo, etc.
Material customization: chain T80 T100, copper alloy, stainless steel, aluminum alloy
Function customization: 360° operation, stage upside down hoist, load limiting function, with electronic scale, riot-proof, rust-proof
Chain customization: polished and oiled, electro-galvanized, nickel-plated, blackened, Dacromet
Packaging customization: Customized according to customer needs such as: yellow board cartons, color boxes, wooden boxes
Customized minimum order quantity: 100

Product details

Product details

The VJ Series Chain Hoist is a portable lifting device operated by hand chain. It is suitable for use in factories, mines, farms,construction sites, wharves,docks and warehouses for installation of equipment, as well as for loading and unloading goods. It is specially advantageous for lifting work in the open air and places where no power supply is available. The chain hoist can be attached to a trolly of any type as a traveling chain houst. It is suitable to monorail overhead conveying system,hand travelling crane and jib crane.
• Safe,reliable in operation with minimum maintenance
• High efficiency and small handpull
• Double-pawl brake system desigend for safety and reliable
•Roll-edge han wheel cover and two hand chain guides ensure smooth operation of the hand chain
•Double enclosure of the brake mechanism to keep out rain water and dust
•Safety factor:4 to 1
• Standard: EN 13157
• Fatigue tested at 1.5 times of working load limit to 2000 cycles

Model Capacity
(T)
Standard
Lift(m)
Running
test  (T)
Effort required tolift
max load (N)
No.of falls of
load chain
Load chain
diameter(mm)
Dimension(mm) Net welght
(kg)
Packing
(L*W*H)(cm)
A B C H
VJ-0.5T 0.5 2.5 0.75 240 1 5 132 148 28 345 11 24*19*18
VJ-1T 1 2.5 1.5 250 1 6 151 172 32 376 12.5 28*21*21
VJ-1.5T 1.5 2.5 2.25 265 1 7.1 173 196 36 442 17.8 34*26*20
VJ-2T 2 3 3 335 1 8 175 210 36 470 19.5 34*26*20
VJ-3I 3 3 4.5 363 1 10 176 230 46 565 29 34*26*20
VJ-5T 5 3 7.5 360 2 9 189 280 46 688 41.3 41*32*24
VJ-10T 10 3 15 380 4 9 189 463 57 765 78.5 48*42*18.5
