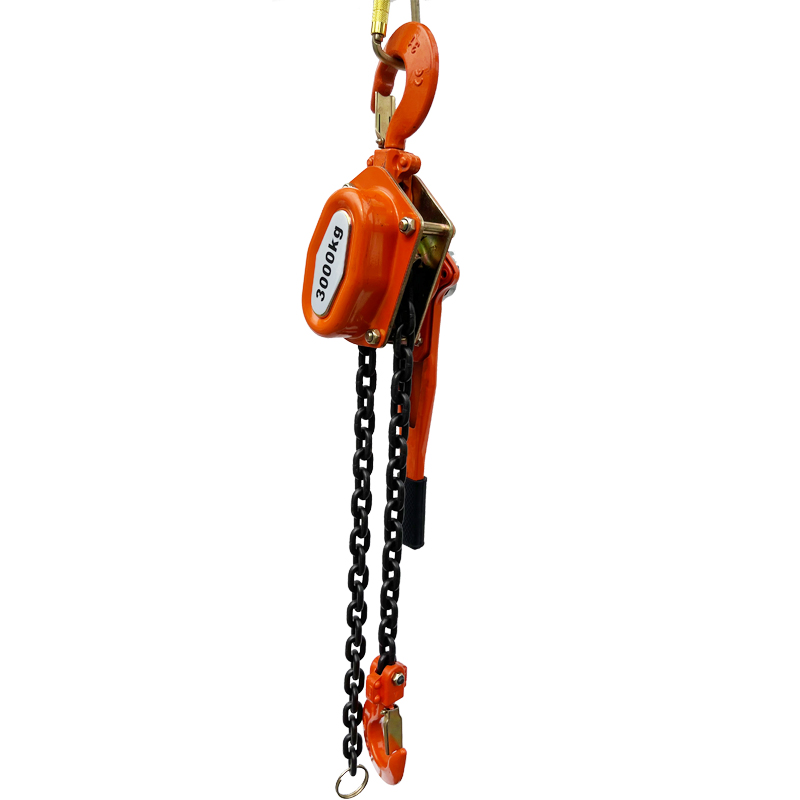

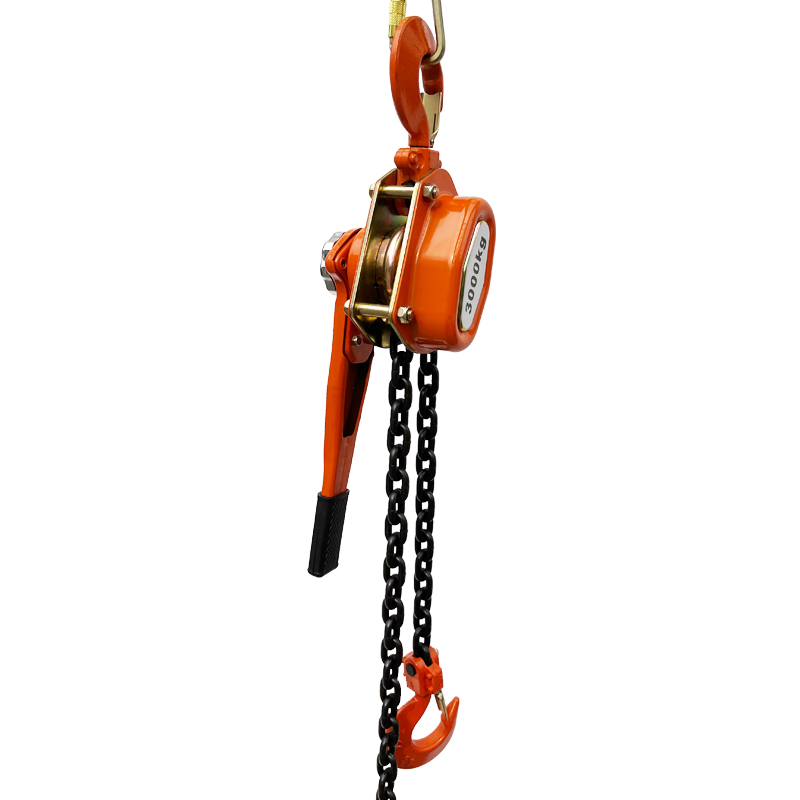

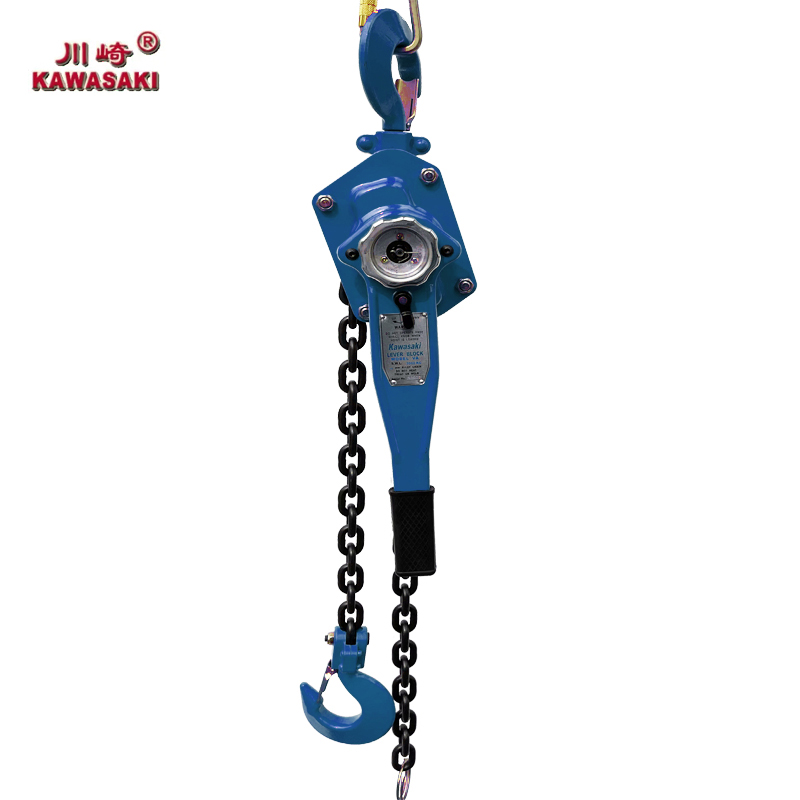

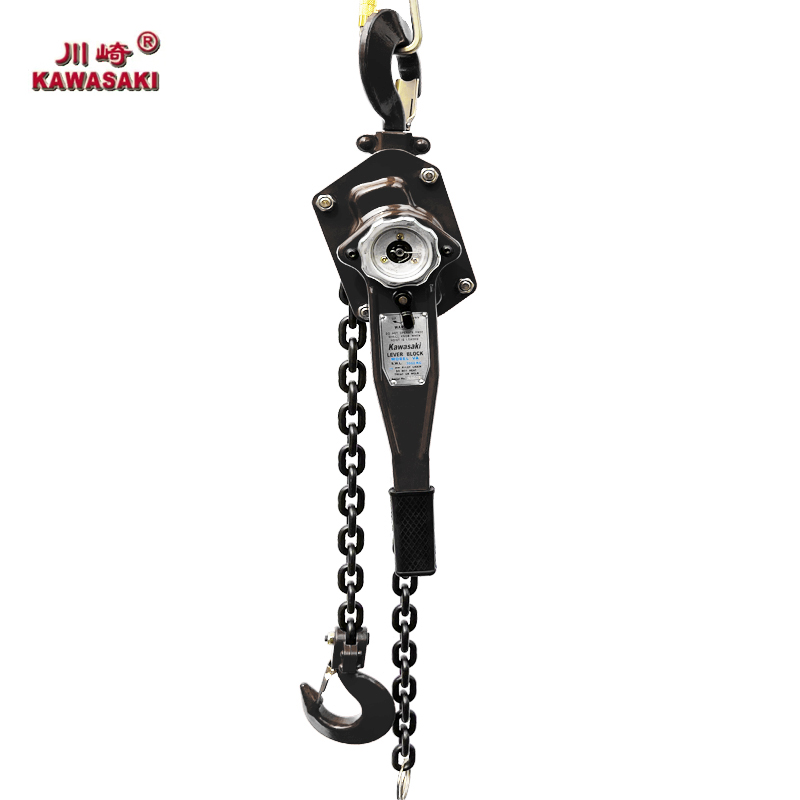

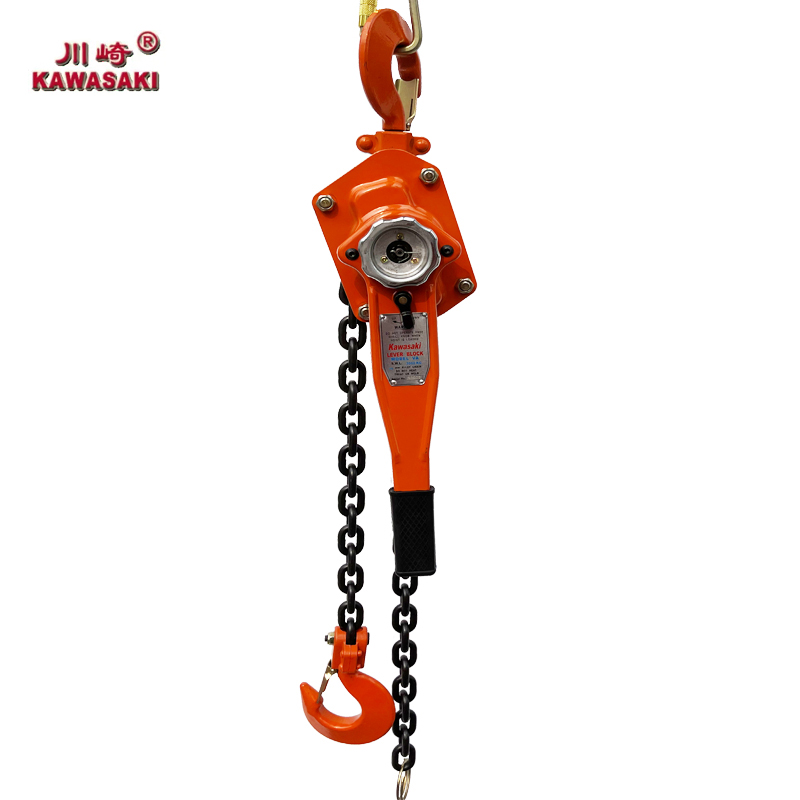

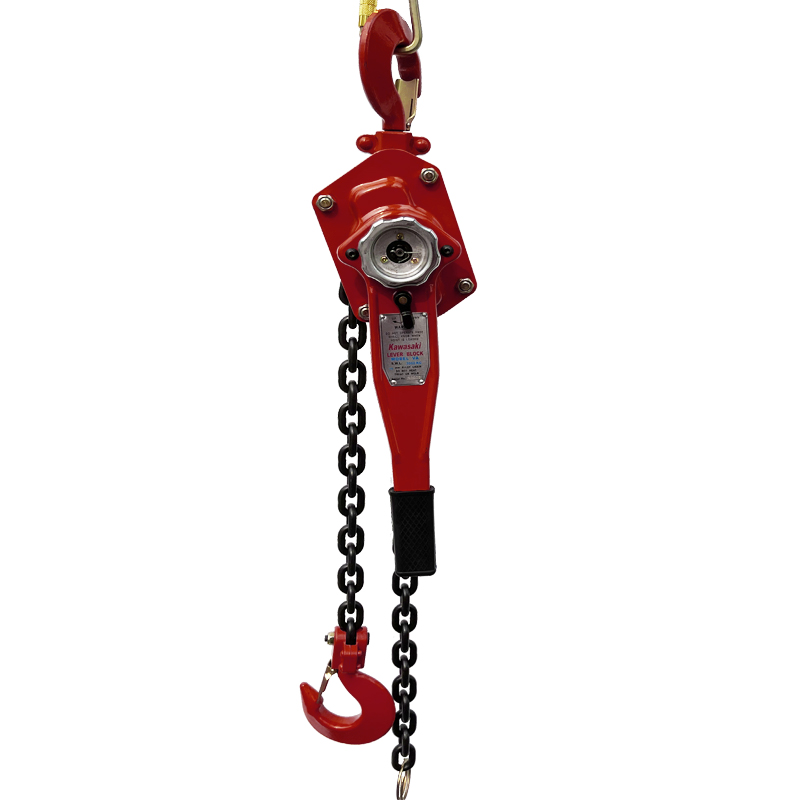

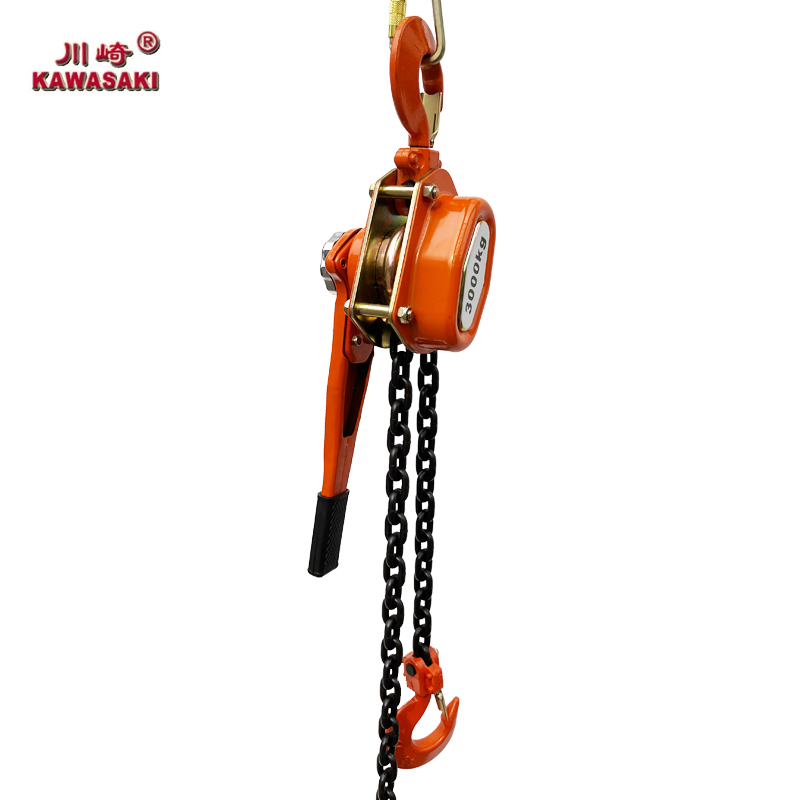

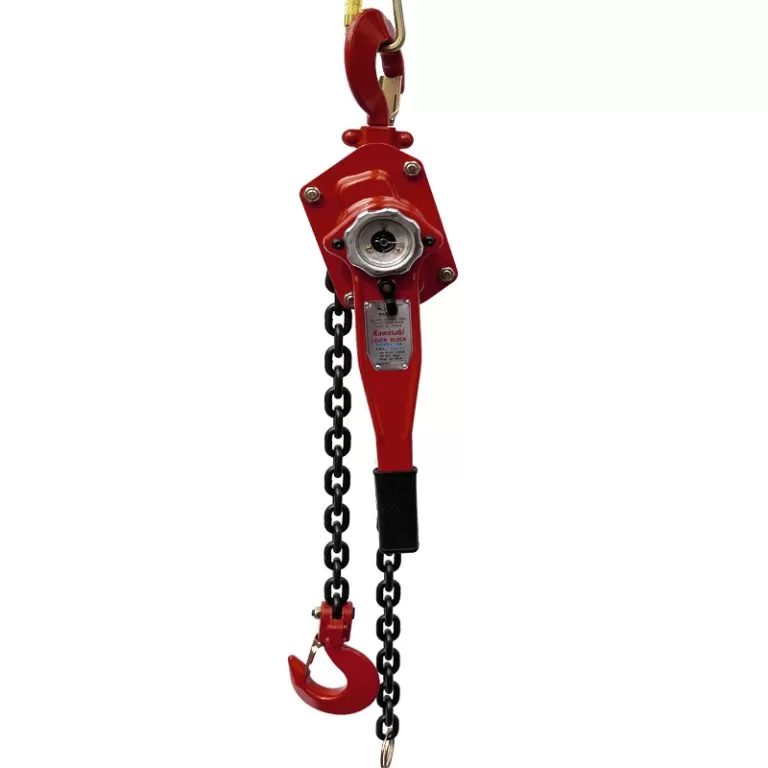

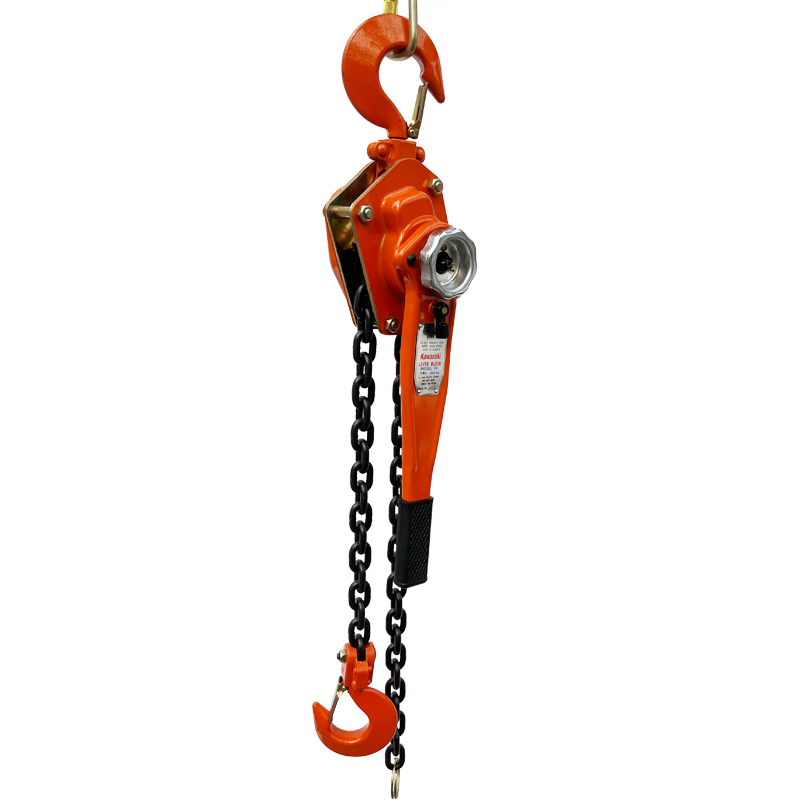

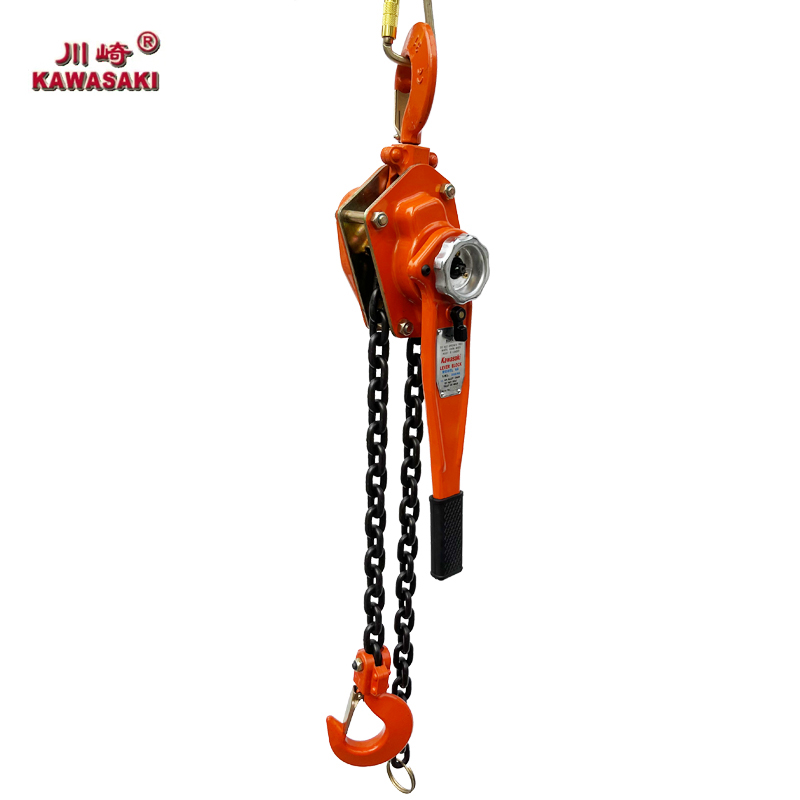

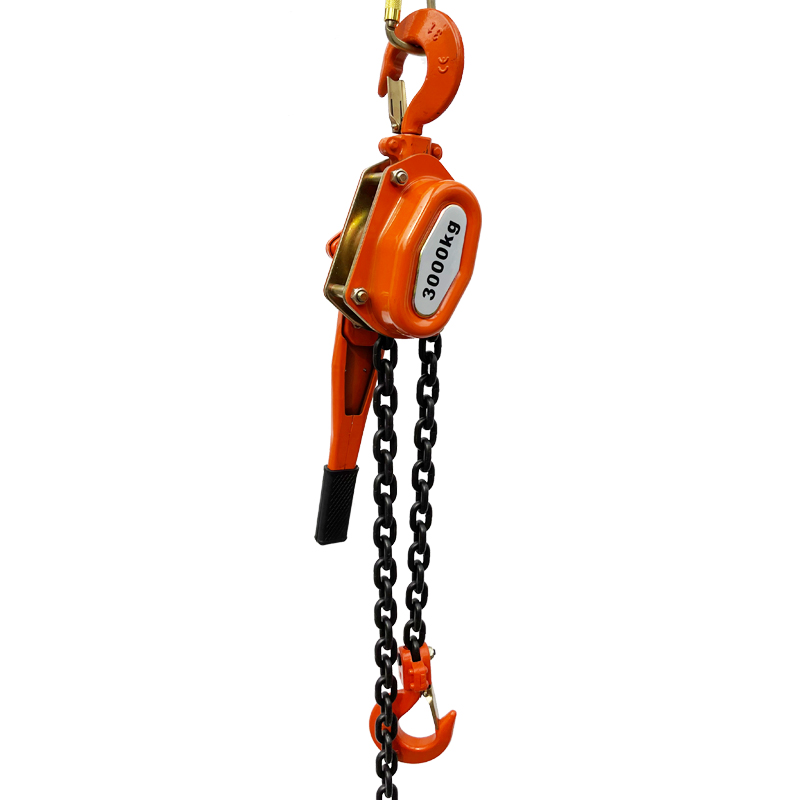

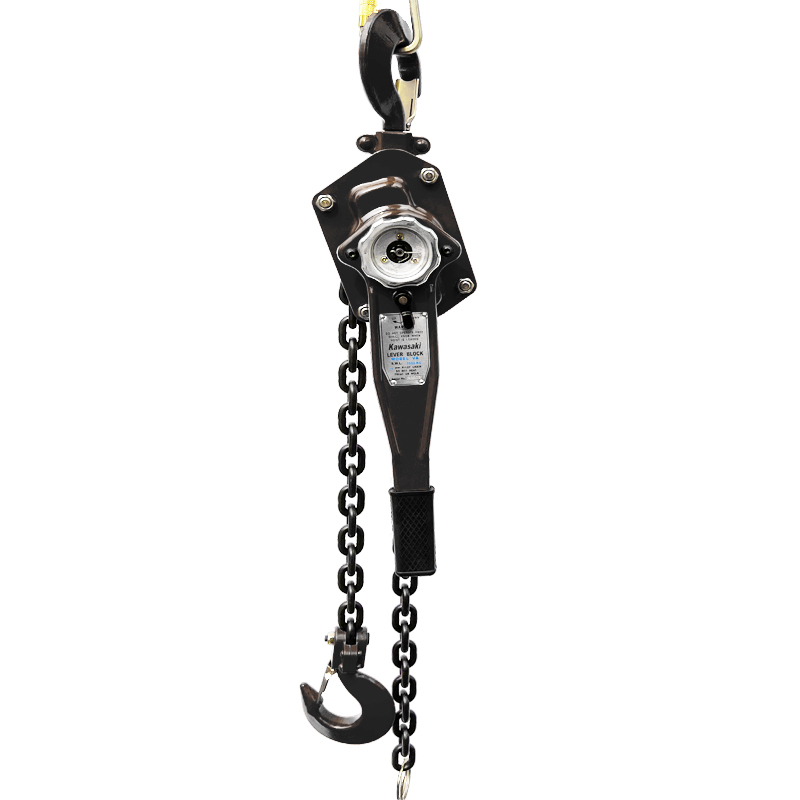

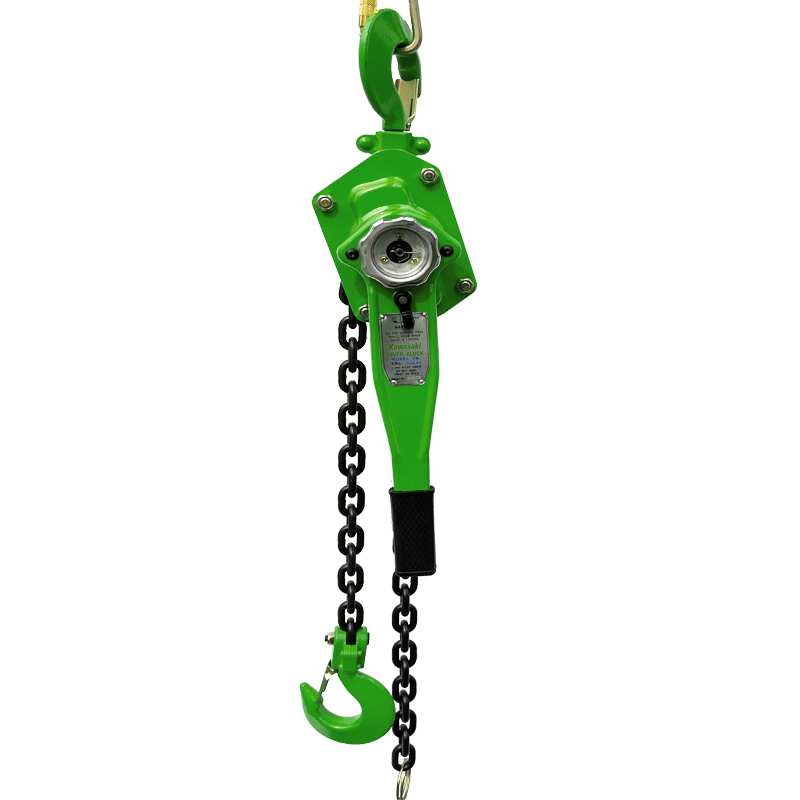

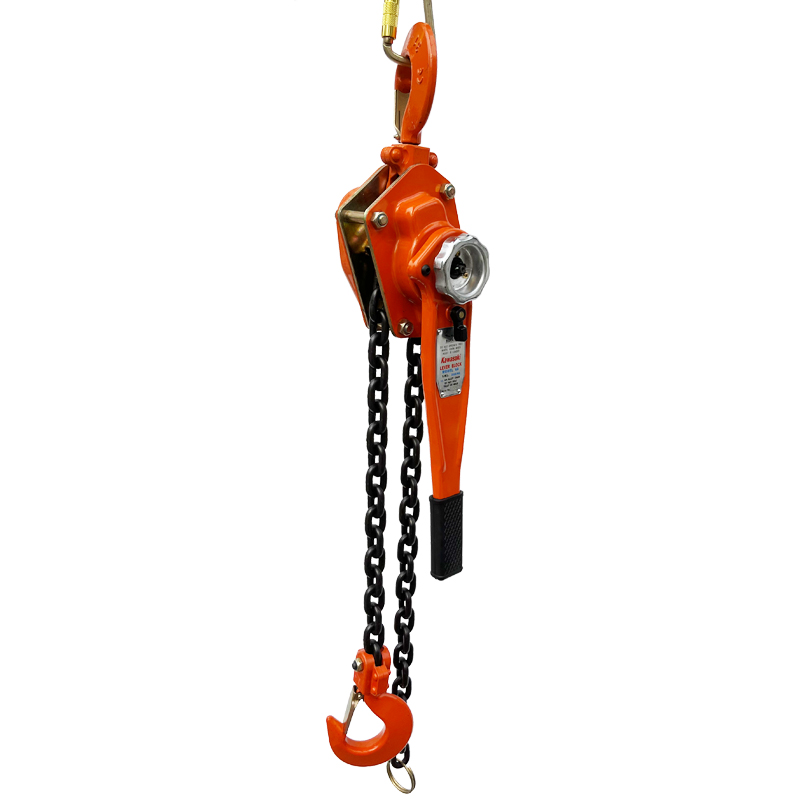

KAWASAKI MANUAL HOIST LEVER HOIST VA 3T

Brand customization: OEM, appearance color, logo, etc.
Material customization: chain T80 T100, copper alloy, stainless steel, aluminum alloy
Function customization: 360° operation, stage upside down hoist, load limiting function, with electronic scale, riot-proof, rust-proof
Chain customization: polished and oiled, electro-galvanized, nickel-plated, blackened, Dacromet
Packaging customization: Customized according to customer needs such as: yellow board cartons, color boxes, wooden boxes
Customized minimum order quantity: 100

KAWASAKI MANUAL HOIST LEVER HOIST VA 3T

Brand customization: OEM, appearance color, logo, etc.
Material customization: chain T80 T100, copper alloy, stainless steel, aluminum alloy
Function customization: 360° operation, stage upside down hoist, load limiting function, with electronic scale, riot-proof, rust-proof
Chain customization: polished and oiled, electro-galvanized, nickel-plated, blackened, Dacromet
Packaging customization: Customized according to customer needs such as: yellow board cartons, color boxes, wooden boxes
Customized minimum order quantity: 100

Product details

Product details

The VA Series Lever Hoist can be widely used for equipment installation, lifting and tightening goods,dragging loads in factories, mines,construction sites,power plants,boat manufacturing etc. It is an ideal device especially in narrow space, open air and overhead places for pulling and stretching at angle.
• Compact, light yet durable
•Double-pawl brake system desigend for safety and reliabilty
•Heat treated steel plates,gears and shafts for enhanced strength;Forget upper, lower hooks with forged steel safety latches; High Tensile Alloy Steel Chain
•Free-wheeling mechanism for quick chain adjustments
•Weston style automatic load brake with doble pawl load reduction
•360° rotating handle of ease of use in confined spacen
•Idling mechanism to allow fast adjustment of load chain
• Safety factor: 4 to 1
• Fatigue tested at 1.5 times of working load limit to 2000 cycles
• Standard: EN 13157

Model Capacity
()
Standard
Lift
(m)
Running
test (T)
Effort required
tolift max load
(N)
No.of falls of
load chain
Load chain
diameter(mm)
Dimension(mm) Net weight
(kg)
Packing
(L*W*H)(cm)
A  B C D L H
VA-0.5T 0.5 1.5 0.75 140 1 5 102  80 95 3.5 33.5*12.5*9
VA-0.75T 0.75 1.5 1.125 140 1 6 148  88 135 32 290 320 7 37*14*17
VA-1T 1 1.5 1.5 140 1 6 148  88 135 32 290 320 7.5 37*14*17
VA-1.5T 1.5 1.5 2.25 240 1 8 176 102 155 36 415 380 11 52*14*18
VA-2T 2 1.5 3 240 1 8 176 102 155 36 415 380 11.5 52*14*18
VA-3T 3 1.5 4.5 320 1 10 195 109 211 46 415 480 19 55*16*21
VA-6T 6 1.5 7.5 340 2 10 195 109 254 46 415 600 32 55*16*21
VA-9T 9 1.5 11.25 360 3 10 195 109 319 57 415 700 47 62*48.5*26
