Enterprise Certificate of Honor

KAWASAKI NORMAL OPERATION ELECTRIC CHAIN HOIST KKBB

Electric hoist
Brand customization: OEM
Function customization: such as explosion-proof, dust-proof, rain-proof, frequency conversion, two-speed, etc.
Appearance customization: Customize the appearance color, logo, etc. of the electric hoist according to the customer’s preferences.
Material customization: customized chain T80 T100
Voltage customization: single phase three phase 110V-575V
Surface treatment customization: According to customer needs, the surface of the electric hoist is treated differently, such as spray painting, electroplating, oxidation, etc. The chain can be customized with galvanized, nickel plated, and blackened.
Packaging customization: Customize the packaging method of electric hoist according to customer needs
Customized minimum order quantity: 50

Supply capacity: 5,000 units of chain hoists a month
500 electric hoists per month

KAWASAKI NORMAL OPERATION ELECTRIC CHAIN HOIST KKBB

Electric hoist
Brand customization: OEM
Function customization: such as explosion-proof, dust-proof, rain-proof, frequency conversion, two-speed, etc.
Appearance customization: Customize the appearance color, logo, etc. of the electric hoist according to the customer’s preferences.
Material customization: customized chain T80 T100
Voltage customization: single phase three phase 110V-575V
Surface treatment customization: According to customer needs, the surface of the electric hoist is treated differently, such as spray painting, electroplating, oxidation, etc. The chain can be customized with galvanized, nickel plated, and blackened.
Packaging customization: Customize the packaging method of electric hoist according to customer needs
Customized minimum order quantity: 50

Supply capacity: 5,000 units of chain hoists a month
500 electric hoists per month

Product details

Product details

>>mechanical braked Dual braking system is safe and reliable
>>Limit switch:
The limit switch device is installed where the weight is lifted on and off to make the motor to
stop automatically so as to prohibit the chains from exceeding for safety
>>Support frame:
The loading support frame consists of two steel plates,which is extremely sturdy
>>Shell: It is made of light aluminum alloy shell, light but hard. The cooling fin is specially designed to ensure quick heat dissipation with the rate up to 40% and continuous service. The integral enclosed structure is applicable to places like
chemical plant and electroplate factor
>>Push button:
Waterproof push button is applied. It is light and durable
>>Hook:
It is hot forging with perfect strength that is hard to break. The operation safety of the
lower hook is ensured by its 360 degree rotation and safety tongue piece
>>Chain:
The chain shall adopt the imported FEC80 ultra heat-treatable aluminum alloy chain. It can be
safely used in poor environments such as rein sea water and chemicals.

Model Capacity (t) Lifting Speed (m/min) Lifting motor Operating motor
Power ( kw) Rotation speed (r/min) Phases Voltage (v) Frequency (Hz/s) Power ( kw) Rotation speed (r/min) Operating speed (m/min) Phases Voltage (v) Frequency (Hz/s) I-beam(mm)
KKBB0.5-01 0.3 7.8 1.1 1440 3 220-440 50/60 0.12 1440 24 3 220-440 50/60 68-130
KKBB0.5-01 0.5 7.8 1.1 1440 3 220-440 50/60 0.12 1440 24 3 220-440 50/60 68-130
KKBB01-01 1 6.8 1.5 1440 3 220-440 50/60 0.4 1440 11/21 3 220-440 50/60 68-130
KKBB01-02 1 3.9 1.1 1440 3 220-440 50/60 0.4 1440 11/21 3 220-440 50/60 68-130
KKBB1.5-01 1.5 8.8 3 1440 3 220-440 50/60 0.4 1440 11/21 3 220-440 50/60 82-153
KKBB02-01 2 6.6 3 1440 3 220-440 50/60 0.4 1440 11/21 3 220-440 50/60 82-153
KKBB02-02 2 3.4 1.5 1440 3 220-440 50/60 0.4 1440 11/21 3 220-440 50/60 82-153
KKBB2.5-01 2.5 5.6 3 1440 3 220-440 50/60 0.75 1440 11/21 3 220-440 50/60 82-153
KKBB03-01 3 5.6 3 1440 3 220-440 50/60 0.75 1440 11/21 3 220-440 50/60 82-153
KKBB03-02 3 4.4 3 1440 3 220-440 50/60 0.75 1440 11/21 3 220-440 50/60 82-153
KKBB05-02 5 2.8 3 1440 3 220-440 50/60 0.75 1440 11/21 3 220-440 50/60 100-178

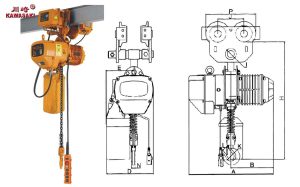

Model Capacity (t) Dimensions(mm)
H A B D E K L N I J P chain
KKBB0.5-01 0.3 580 455 230 240 155 Φ31 29 20 Φ27 91 163 Φ6.3
KKBB0.5-01 0.5 580 455 230 240 155 Φ31 29 20 Φ27 91 163 Φ6.3
KKBB01-01 1 650 520 260 300 176 Φ42 32 24 Φ31 115 221 Φ7.1
KKBB01-02 1 680 455 230 240 155 Φ42 32 24 Φ31 115 221 Φ6.3
KKBB1.5-01 1.5 800 615 295 430 265 Φ49 40 30 Φ36 138 265 Φ10.0
KKBB02-01 2 800 615 295 430 265 Φ49 40 30 Φ36 138 265 Φ10.0
KKBB02-02 2 835 520 260 300 236 Φ49 40 30 Φ36 138 265 Φ7.1
KKBB2.5-01 2.5 845 615 295 430 265 Φ59 48 35 Φ43 157 277 Φ11.2
KKBB03-01 3 845 615 295 430 265 Φ59 48 35 Φ43 157 277 Φ11.2
KKBB03-02 3 950 615 295 430 320 Φ59 48 35 Φ43 157 277 Φ10.0
KKBB05-02 5 1030 615 295 430 325 Φ60 48 43 Φ45 178 332 Φ11.2
