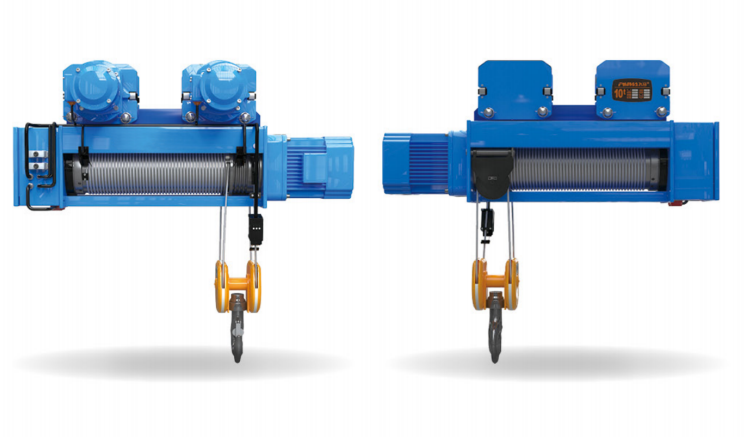

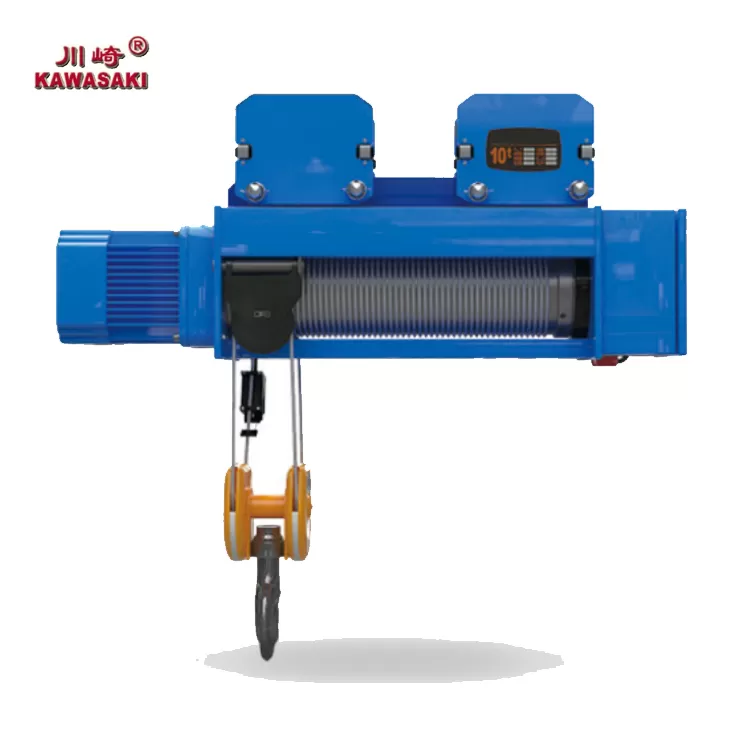

KAWASAKI PLANETARY TYPE WIRE ROPE ELECTRIC HOIST M4(FOH/FOHS) M5(FOHSS)

KAWASAKI PLANETARY TYPE WIRE ROPE ELECTRIC HOIST M4(FOH/FOHS) M5(FOHSS)

Product details

Product details

  • High efficiency due to 20% longer service life
  • Optimum utilisation of space thanks to its compact design
  • High availability thanks to low maintenance requirement
  • Fast handling thanks to high hoist speeds
  • Good value for money thanks to comprehensive series features
  • Low-vibration motor for quiet operation
  • Fast-acting brake
  • Gearbox lubricated for life
  • User-friendly bottom block: guard for improved safety
  • Precision geared limit switch
  • Overload protection
lifting capacity t 2 3 5 10 16 20 32
Lifting height m 6-30 6-30 6-30 6-30 9-24 9-24 9-24
Pulley magnification 1/2 1/2 1/2 1/2 1/4 1/4 1/6
Lifting speed m/min 10
10/3.3
10
10/3.3
8
8/2.6
8
8/2.6
4
4/1
3.5
3.5/1
2
2/0.67
Lifting power kw 3.0 4.5 7.5 13 13 13 18.5
Running speed m/min 20 20 20 20 20 20 20
Operating power kw 0.4 0.4 0.75 0.75*2 0.75*2 1.5*2 1.5*4
Control mode Handle / remote control Handle / remote control Handle / remote control Handle / remote control Handle / remote control Handle / remote control Handle / remote control
Working level M3/M4 M3/M4 M3/M4 M3/M4 M3/M4 M3/M4 M3/M4
Power supply 3P 380V 50Hz 3P 380V 50Hz 3P 380V 50Hz 3P 380V 50Hz 3P 380V 50Hz 3P 380V 50Hz 3P 380V 50Hz
