A. Durable powder coat finish.
B. Heavy-duty permits to perform under extreme condition.
C. Rated loads is from 2MT to 85MT.
D. Safety factor: 4 times.
E. 200% over load capacity test one by one before package .
F. Manufactured according to ISO9001 quality standard.
G. CE approved.
H. One year guarantee.

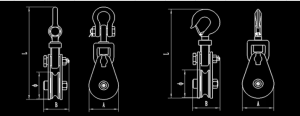

| SWL/Ton | Rope diameter | Φ | L | A | B | |
| 3” | 2 | 3/8″ | 75 | 240 | 79 | 68 |
| 4½“ | 4 | 1/2″ | 104 | 365 | 108 | 91 |
| 6“ | 8 | 3/4″ | 150 | 460 | 152 | 7 |
| 8″ | 8 | 3/4″ | 200 | 548 | 203 | 107 |
| 6″ | 12 | 7/8″ | 152 | 538 | 152 | 132 |
| 8″ | 15 | 7/8″ | 198 | 628 | 203 | 132 |
| 10″ | 15 | 7/8″ | 250 | 652 | 254 | 132 |
| 8″ | 20 | 1’1/8″ | 198 | 782 | 203 | 151 |
| 10″ | 20 | 1’1/8″ | 248 | 788 | 254 | 151 |
| 12″ | 20 | 1’1/8″ | 300 | 885 | 306 | 151 |
| 14″ | 20 | 1’1/8″ | 350 | 945 | 356 | 151 |
| SWL/Ton | Rope diameter | Φ | L | A | B | |
| 3″ | 2 | 3/8″ | 75 | 253 | 79 | 68 |
| 44″ | 4 | 1/2″ | 4 | 360 | 108 | 91 |
| 6″ | 8 | 3/4″ | 150 | 465 | 152 | 107 |
| 8″ | 8 | 3/4″ | 200 | 553 | 203 | 107 |
| 6* | 12 | 7/8″ | 152 | 548 | 152 | 132 |
| 8″ | 15 | 7/8″ | 198 | 608 | 203 | 132 |
| 10” | 15 | 7/8″ | 250 | 661 | 254 | 132 |
| 8″ | 20 | 1’1/8″ | 198 | 698 | 203 | 151 |
| 10″ | 20 | 1’1/8″ | 248 | 703 | 254 | 151 |
| 12″ | 20 | 1’1/8″ | 300 | 800.5 | 306 | 151 |
| 14″ | 20 | 1’1/8″ | 350 | 860. 5 | 356 | 151 |
