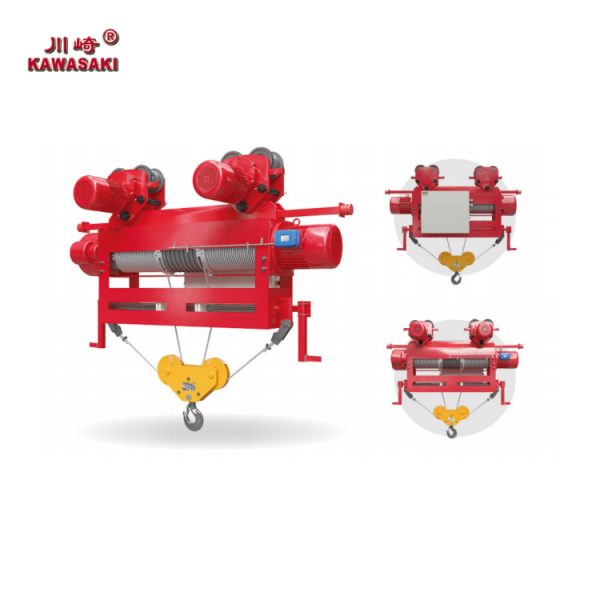

KAWASAKI SQUARE BOX TYPE PICKLING AND GALVANIZING STEEL WIRE ROPE ELECTRIC HOIST M3(CD/MD) M4(FMCD/FMMD))

KAWASAKI SQUARE BOX TYPE PICKLING AND GALVANIZING STEEL WIRE ROPE ELECTRIC HOIST M3(CD/MD) M4(FMCD/FMMD))

Product details

Product details

  • High efficiency due to 20% longer service life
  • Optimum utilisation of space thanks to its compact design
  • High availability thanks to low maintenance requirement
  • Fast handling thanks to high hoist speeds
  • Good value for money thanks to comprehensive series features
  • Low-vibration motor for quiet operation
  • Fast-acting brake
  • Gearbox lubricated for life
  • User-friendly bottom block: guard for improved safety
  • Precision geared limit switch
  • Overload protection
Lifting capacity t 2 3 5 10
Lifting height m 6-12 6-12 6-12 6-12
Parallel straight rope like manner 1/2
2/4
1/2
2/4
1/2
2/4
1/2
2/4
Lifting speed m/min 8(0.8/8) 8(0.8/8) 8(0.8/8) 7(0.7/7)
Lifting power kw 3.0 4.5 7.5 13
Running speed m/min 0-20
0-30
0-20
0-30
0-20
0-30
0-20
0-30
Operating power kw 0.4*2 0.4*2 0.8*2 0.8*2
A wire rope IWR IWR IWR IWR
Degree of protection IP44/54/55 IP44/54/55 IP44/54/55 IP44/54/55
Insulation class F F F F
Control mode remote/Fully automatic remote/Fully automatic remote/Fully automatic remote/Fully automatic
Working level M3/M4 M3/M4 M3/M4 M3/M4
Power supply 3P 380V 50Hz 3P 380V 50Hz 3P 380V 50Hz 3P 380V 50Hz
Remarks The hoist can have special anti-corrosion / acid and alkali resistance and add the function of anti-collision device / divider
