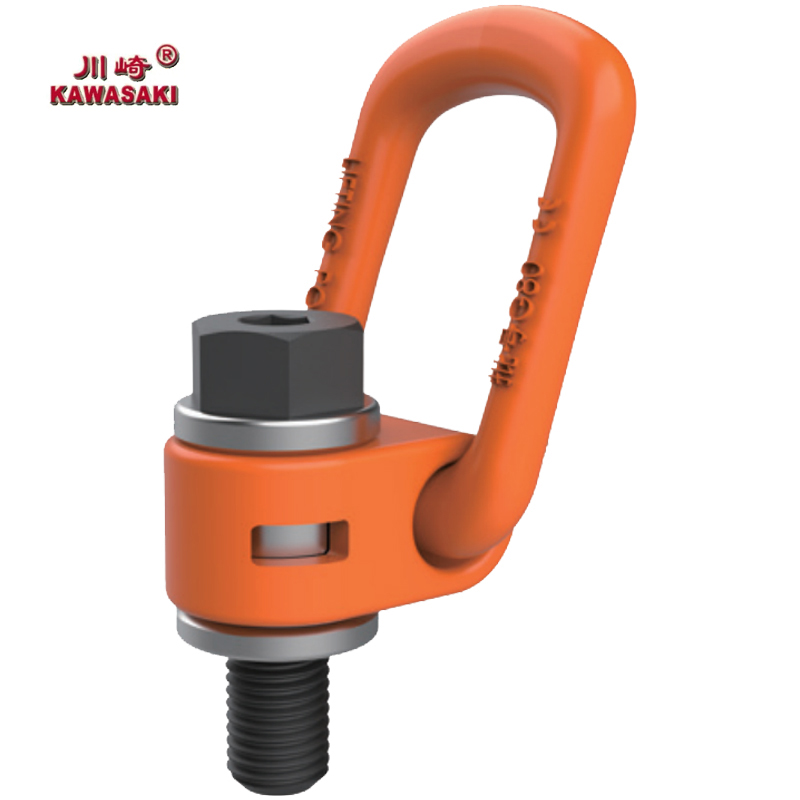

KAWASAKI SWIVEL HOIST RINGS 081

Enterprise Certificate of Honor

KAWASAKI SWIVEL HOIST RINGS 081

Product details

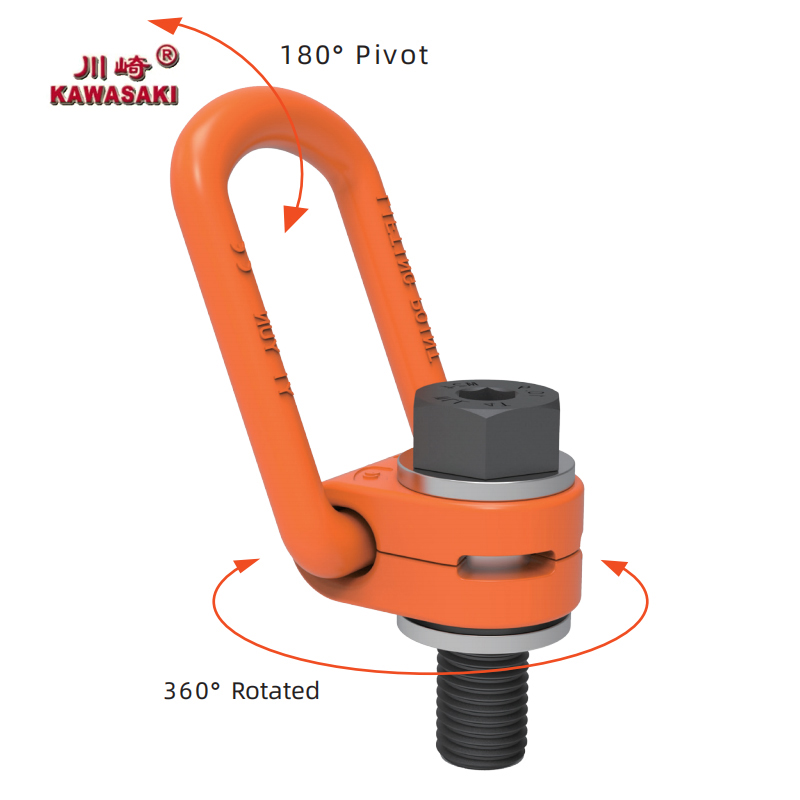

360°Rotated 180° Pivot

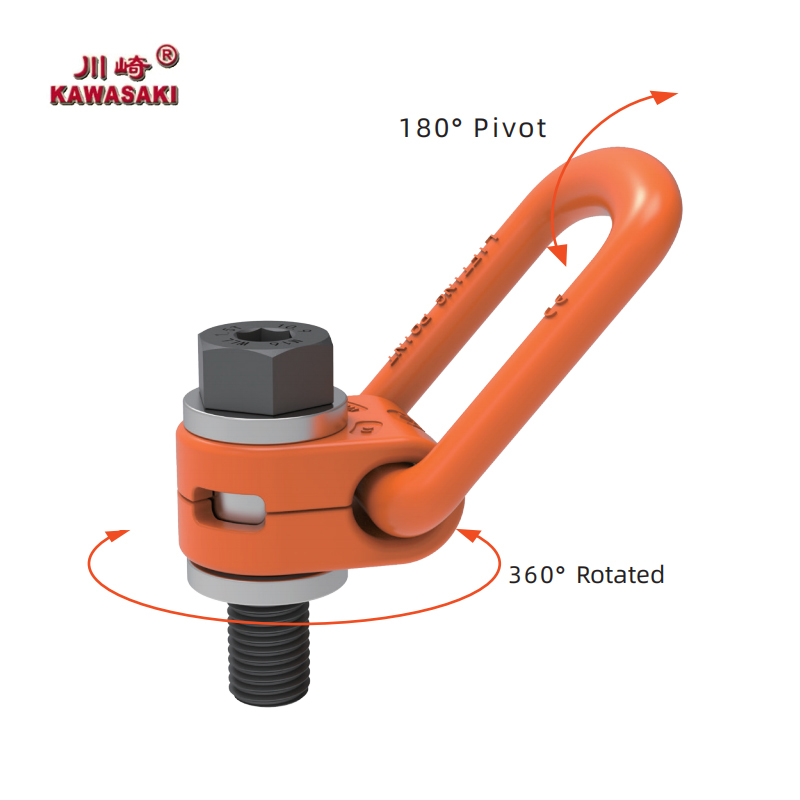

The lifting ring body can rotate in the direction of force to adjust the angle of force.

4:1 Safety Factor

The link ring can automatically adjust the force angle with the stretching direction.Working tensile is the same in any direction, safety factor is 4:1.

Complete Specifications

Different kinds of thread are available,wide range of WLL load(M8-M64,0.3T-22.5T);the available thread including:Metric thread, Metric fine thread,UNc thread,UNF thread, Bsw thread and so on.

Electrostatic Coating

Lifting points are made of alloy steel precision forging, with a tensile strength greater than 1080Mpa after quenching and tempering. The
surface of the lifting ring is electrostatic coating to improve its anti-corrosion ability.

Easy Installation

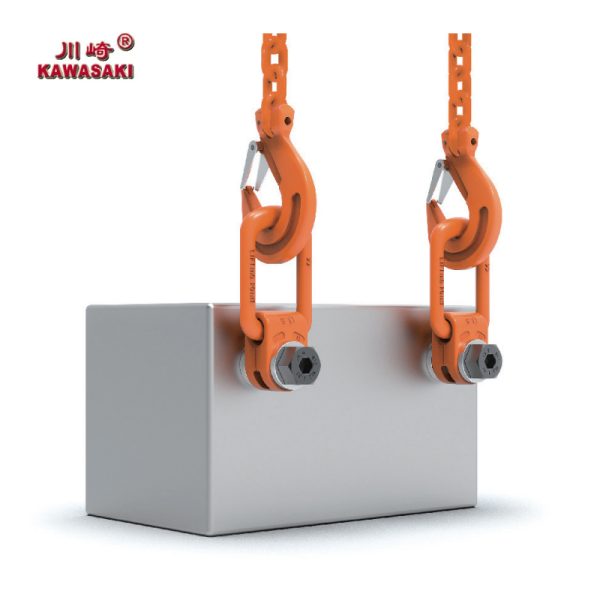

The internal space of the ring body is large and can be connected to various lifting tools and hooks. The ring body is equipped with a built-in positioning circlip device,making it more convenient to control any angle. The outer hexagonal+inner hexagonal design is convenient and fast for installation.

Go/No Go Gauge Inspection

After passing the inspection with a 6g go/no go gauge, it is suitable for precision threaded holes.

ITEM NO.	WLL/T	Thread M	Dimensions / mm											Nm	Weight Kg
ITEM NO.	WLL/T	Thread M	E	A	B	C	D	F	G	L	N		SW	Nm	Weight Kg
081-M8	0.3	M8 × 1.25	11	34	37	42	14	98.5	57	42.5	31	6	13	10-40		0.5
081-M10	0.63	M10×1.5	16	34	37	44	14	98.5	57	40.5	31	6	16	10-40		0.5
081-M12	1	M12× 1.75	18	34	37	45	14	98.5	57	39.5	31	8	18	15-40		0.5
081-M14	1.2	M14×2.0	21	34	37	48	14	98.5	57	36.5	31	10	24	30- 100		0.5
081-M16	1.5	M16×2.0	24	34	37	48	14	98.5	57	36 5	31	10	24	45-130		0.5
081-M18	2	M18×2.5	26	50	54	58	16.5	143	82	68.5	45	12	30	100-170		1.5
081-M20	2.5	M20 × 2.5	30	50	54	58	16.5	143	82	68.5	45	12	30	100-170		1.5
081-M22	3	M22 × 2.5	30	50	54	61	16.5	143	82	65.5	45	14	36	100-170		1.5
081-M24	4	M24 × 3.0	36	50	54	61	16.5	143	82	65.5	45	14	36	190-280		1.5
081-M27	4	M27 × 3.0	38	60	65	82	22	170	99	66	59	17	46	250-500		3
081 -M30	5	M30 * 3.5	48	60	65	82	22	170	99	66	59	17	46	270-600		3.5
081-M33	6	M33 × 3.5	54	60	65	85	22	170	99	63	59.5	22	55	270-600		3.5
081-M36S	7	M36 ×4.0	54	60	65	85	22	170	99	63	59.5	22	55	270-600		3.5
081-M36B	8	M36 ×4.0	62	77	85	104	27	226.5	123	95.5	69	22	55	270-600		6
081-M39	8	M39 × 4.0	62	77	85	104	27	226.5	123	95.5	69	22	55	350-800		6
081-M42S	10	M42 ×4.5	72	77	85	106	27	226.5	123	93.5	69	22	65	350-800		6.5
081-M42B	15	M42 × 4.5	63	95	104	117	36	257.5	158	104.5	98	22	65	350-800		11
081-M45	15	M45×4.5	63	95	104	117	36	257.5	158	104.5	98	22	65	350-800		11
081-M48	20	M48× 5.0	72	95	104	120	36	257.5	158	101.5	98	27	75	350-800		12
081-M52	20	M52×5.0	72	95	104	117	36	257.5	158	101.5	98	27	75	350-900		12
081-M56	22	M56×5.5	84	95	104	117	36	257.5	158	104.5	98	27	85	350-900		15
081 -M64	22.5	M64×6.0	100	114	104	138	36	266	158	92	109	32	95	500-1000		16.3

Number of pieces		1	2	1	2	2		2	3/4		3/4

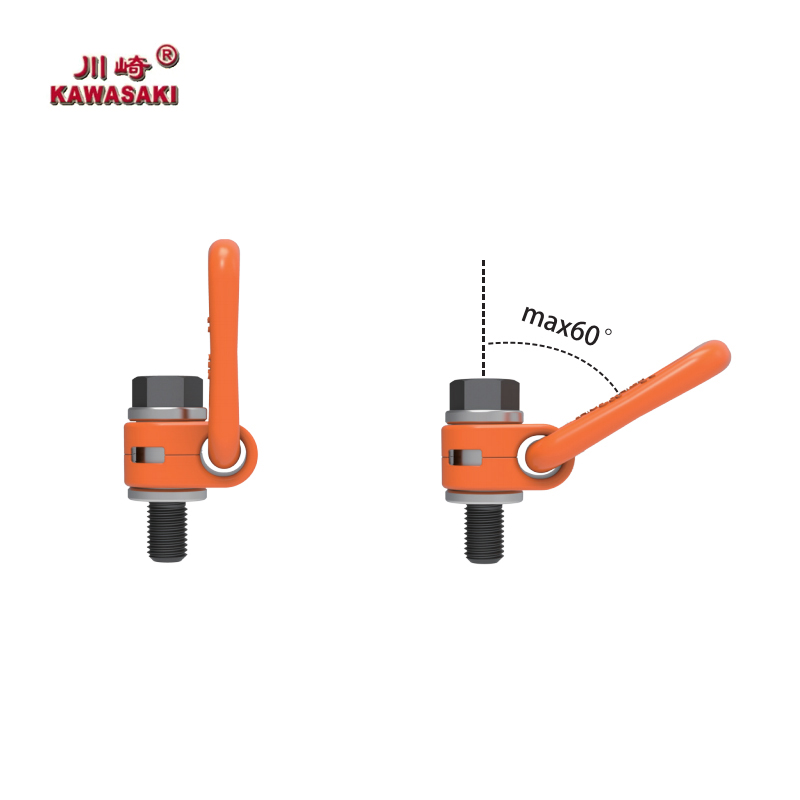

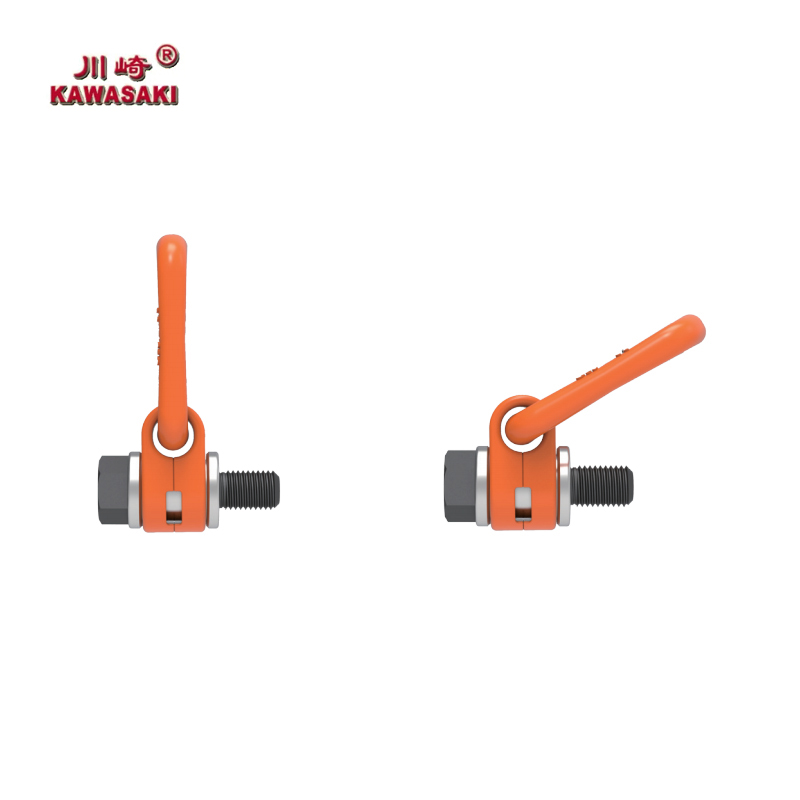

Inclination angle		0°	0°	90°	90°	0-45°	45-60°	Asymmetry	0-45°	45 -60°	Asymmetry
ITEM NO.	Thread M
081-M8	8	0.3	0.6	0.3	6	0.42	0.3	3	0.63	0.45	0.3
081-M10	10	0.63	1.26	0.43	1.26	0.88	0.43	0.63	1.32	0.95	0.63
081-M12	12	1	2	1	2	1.4	1	1	2.1	1.5	1
081-M14	14	1.2	2.4	1.2	24	1.7	1.2	1.2	2.5	1.8	1.2
081-M16	16	1.5	3	1.5	3	2.1	1.5	1.5	3.1	2.2	1.5
081-M18	18	2	4	2	4	2.8	2	2	4.2	3	2
081-M20	20	2 5	5	2.5	5	35	25	2.5	5.2	3.7	25
081-M22	22	3	6	3	6	4.2	3	3	63	4.5	3
081-M24	24	4	8	4	8	5.6	4	4	84	6	4
081-M27	27	4	8	4	8	5.6	4	4	8.4	6	4
081-M30	30	5	10	5	10	7	5	5	10.5	7.5	5
081 -M33	33	6	12	6	12	8.5	6	6	12.7	9	6
081-M36S	36	7	14	7	14	9.8	7	7	14.7	10.5	7
081-M36B	36	8	16	8	16	11.2	8	8	16.8	12	0
081 -M39	39	8	16	8	16	11.2	8	8	16.8	12	8
081-M42S	42	10	20	10	20	14	10	10	21	15	10
081-M42B	42	15	30	15	30	21	15	15	31.5	22.5	15
081-M45	45	15	30	15	30	21	15	15	31.5	22.5	15
081 -M48	48	20	40	20	40	28	20	20	42	30	20
081-M52	52	20	40	20	40	28	20	20	42	30	20
081-M56	56	22	44	22	44	30.8	22	22	46.2	33	22
081-M64	64	22.5	45	22.5	45	31.5	22.5	22.5	47.25	33.75	22.5

ITEM NO.	WLL/T	Thread		Dimensions / mm											Nm	Weight kg
ITEM NO.	WLL/T	M	TPI	E	A	B	C	D	F	G	L	N	S	SW	Nm	Weight kg
081-3/8	0.63	3/8	16	16	34	37	43	14	98.5	57	41.5	31	6	16	10-40	0.5
081-1/2	1	1/2	13	21	34	37	45	14	98.5	57	36.5	31	8	18	15-40	0.5
081-5/8	1.5	5/8	11	24	34	37	48	14	98.5	57	36.5	31	10	24	45-130	0.5
081-3/4	2.5	3/4	10	26	50	54	58	16.5	143	82	68.5	45	12	30	45-130	1.5
081-7/8	2.5	7/8	9	30	50	54	61	16.5	143	82	68.5	45	14	36	100-170 1.5	1.5
081·1	4	1	8	36	50	54	61	16.5	143	82	65.5	45	14	36	190-280 1.5	1.5
081-1·1/4	5	1-1/4	7	48	60	65	80	22	174	99	72	59.5	17	46	270-600 3.5	3.5
081-1-1/2	8	1-1/2	6	62	77	85	104	27	226.5	123	95.5	69	22	55	270-600	6
081-1-3/4	15	1-3/4	5	63	95	104	116	36	257.5	158	105.5	98	22	65	350-800	11
081-2	20	2	45	72	95	104	112	36	257.5	158	109.5	98	27	75	350-800	12

Number of pieces		1	2	1	2	2		2	3·4
Inclination angle		0°	0°	90°	90°	0-45°	45-60°	Asymmetry	0-45	45-60	Asymmetry
ITEM NO.	Thread M	WLL/T
081-3/8	3/8	0.63	1.26	0.63	1.26	0.88	0.63	0.63	1.32	0.95	0.63
081-1/2	1/2	1	2	1	2	1.4	1	1	2.1	1.5	1
081-5/8	5/8	1.5	3	1.5	3	21	1.5	1.5	3.1	2.2	1.5
081-3/4	3/4	2.5	5	2.5	5	3.5	2.5	2.5	5.2	3.7	2.5
081-7/8	7/8	2.5	5	2.5	5	3.5	2.5	25	5.2	3.7	2.5
081-1	1	4	8	4	8	56	4	4	84	6	4
081-1-1/4	1-1/4	5	10	5	10	7	5	5	10.5	7.5	5
081-1-1/2	1-1/2	8	16	8	16	11.2	8	8	168	12	8
081-1-3/4	1-3/4	15	30	15	30	21	15	15	31.5	22.5	15
081-2	2	20	40	20	40	28	20	20	42	30	20
