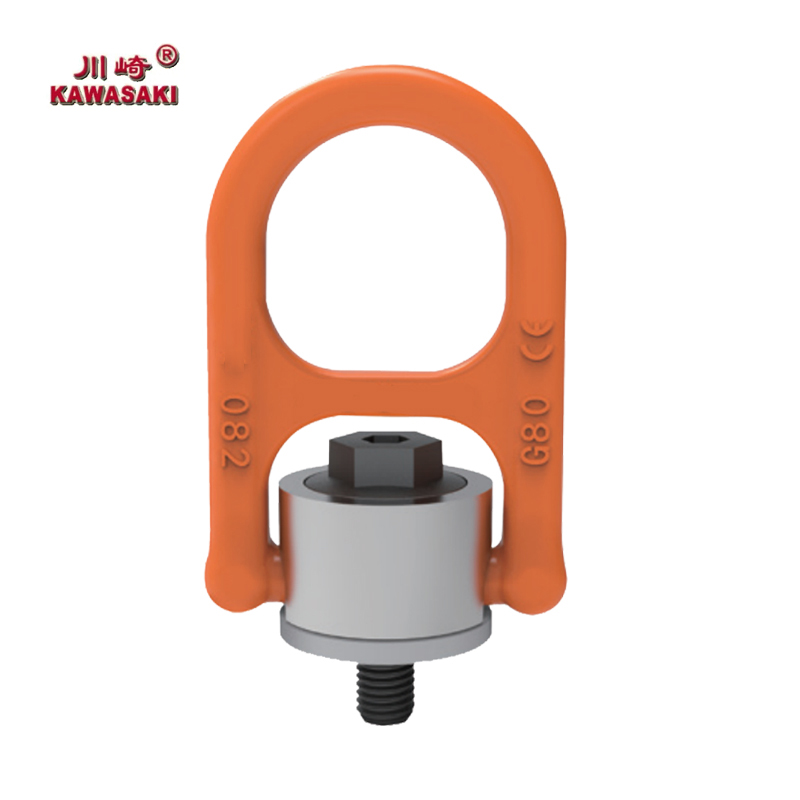

KAWASAKI SWIVEL HOIST RINGS 082

Product details

360°Rotated 180° Pivot

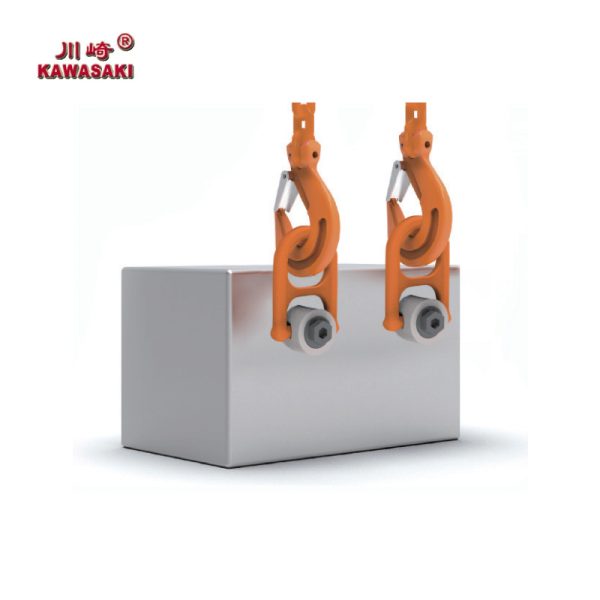

The lifting ring body can rotate in the direction of force to adjust the angle of force.

4:1 Safety Factor

The link ring can automatically adjust the force angle with the stretching direction.Working tensile is the same in any direction, safety factor is 4:1.

Complete Specifications

Different kinds of thread are available,wide range of WLL load(M8-M64,0.3T-22.5T);the available thread including:Metric thread, Metric fine thread,UNc thread,UNF thread, Bsw thread and so on.

Electrostatic Coating

Lifting points are made of alloy steel precision forging, with a tensile strength greater than 1080Mpa after quenching and tempering. The
surface of the lifting ring is electrostatic coating to improve its anti-corrosion ability.

Easy Installation

The internal space of the ring body is large and can be connected to various lifting tools and hooks. The ring body is equipped with a built-in positioning circlip device,making it more convenient to control any angle. The outer hexagonal+inner hexagonal design is convenient and fast for installation.

Go/No Go Gauge Inspection

After passing the inspection with a 6g go/no go gauge, it is suitable for precision threaded holes.

ITEM NO.	WLL/T	Thread M	Dimensions / mm											Nm	Weight Kg
ITEM NO.	WLL/T	Thread M	E	A	B	C	F	G	V	R	S	SW	K	Nm	Weight Kg
082-M8	0.5	M8× 1.25	12	33	35	30	86	56	10	17.5	6	13	10	10-40	0.3
082-M10	0.7	M10×1.5	15	33	35	30	86	56	10	17.5	6	13	10	10-40	0.3
082-M12	1	M12× 1.75	20	33	35	30	86	56	10	17.5	6	13	10	15-40	0.3
082-M14	1.5	M14×2.0	21	sO	55	46	131	85	14	27	8	18	13	30- 100	1
082-M16	2	M16×2.0	24	50	55	46	131	85	14	27	8	18	13	45- 130	1
082-M18	2.5	M18×2.5	26	65	66	57	163	109	18	34.5	10	24	16	100-170	2
082-M20	3	M20× 2.5	30	65	66	57	163	109	18	34.5	10	24	16	100-170	2
082-M24	8	M24× 3.0	36	65	66	57	163	109	18	34.5	10	24	16	190-280	2
082-M27	5.6	M27× 3.0	38	87	80	82.5	219	150	27	45.5	12	30	25	250-500	5.5
082-M30	7.8	M30 × 3.5	48	87	80	82.5	219	150	27	45.5	12	30	25	270-600	5.6
082-M36 -S	9	M36 × 4.0	54	87	80	82.5	219	150	27	45.5	12	30	25	270-600	5.7
082-M36-B	12.5	M36 × 4.0	54	109	100	98	269	187	34	57	17	41	32	270-600	10.6
082-M42	15.6	M42×4.5	63	109	100	98	269	187	34	57	17	41	32	350-800	10.8
082-M48	20	M48× 5.0	72	109	100	98	269	187	34	57	17	41	32	350-800	11
082-M56	22	M56 × 5.5	84	123	110	106	302	205	35	64.5	22	46	34	350-900	15.5
082-M64	22.5	M64×6.0	100	123	110	106	302	205	35	64.5	22	46	34	500- 1000	16.3
082-M72	22.5	M72×6.0	110	123	110	105	302	205	35	64.5	27	75	34	500-1000	17.6

Number of pieces		1	2	1	2	2		2	3-4		3-4 Asymmetry
Inclination angle		0°	0°	90°	90°	0-45°	45 -60°	Asymmetry	0-45°	45 -60°	Asymmetry
ITEM NO.	Thread M	WLL /T
082-M8	8	0.8	1.6	5	1	0.7	5	0.5	1.05	0.75	0.5
082-M10	10	1.2	2.4	7	14	0 98	7	0.7	1.47	1.05	0.7
082-M12	12	2	4	1	2	14	1	1	2.1	1.5	1
082-M14	14	2.4	4.8	1.5	3	2.1	1.5	1.5	3.15	2.25	1.5
082-M16	16	3.2	6.4	2	4	28	2	2	4.2	3	2
082-M18	18	5	10	2.5	5	3.5	2.5	2.5	5.25	3.75	2.5
082-M20	20	5.6	11.2	3	6	4.2	3	3	6.3	45	3
082-M24	24	9.2	18.4	5	10	7	5	5	10.5	7.5	5
082-M27	27	9.5	19	56	11.2	7.84	56	56	11.76	84	5.6
082-M30	30	12	24	7.8	15.6	10.92	7.8	7.8	16.38	11.7	7.8
082-M36·S	365	12.5	25	9	18	12.6	9	9	18.9	13.5	9
082-M36-B	36B	14	28	12.5	25	17.5	12.5	12.5	26.25	18.75	12.5
082-M42	42	16	32	15.6	31.2	21.84	15.6	15.6	32.76	23.4	15.6
082-M48	48	20	40	20	40	28	20	20	42	30	20
082-M56	56	22	44	22	44	30.8	22	22	46.2	33	22
082 -M64	64	22.5	45	22.5	45	31.5	22.5	22.5	47.25	33.75	22.5
082 -M72	72	22.5	45	22.5	45	31.5	22.5	22.5	47.25	33.75	22.5

ITEM NO.	WLL/T	Thread		Dimensions / mm											Nm	Weight kg
ITEM NO.	WLL/T	M	TPI	E	A	B	C	F	G	V	R	S	SW	K	Nm	Weight kg
082-1/2	0.8	1/2	13	20	33	35	30	86	56	10	17.5	6	13	10	15-40	0.3
082-5/8	1.6	5/8	11	24	50	55	46	131	85	14	27	8	18	13	45·130	1
082-3/4	2.4	3/4	10	30	5O	55	46	131	85	14	27	8	18	13	45·130	1
082-7/8	3	7/8	9	36	65	66	57	163	109	18	34.5	10	24	16	100-170	2
082-1	4	1	8	36	65	66	57	163	109	18	34.5	10	24	16	190-280	2
082-1 1/4	6.25	1-1/4	7	48	87	80	82.5	219	150	27	45.5	12	30	25	270-600	5.6
082-1 1/2	10	1-1/2	6	54	109	100	98	269	187	34	57	17	41	32	270-600	10.6
082-2	16	2	4.5	84	123	110	106	302	205	35	64.5	22	46	34	350-900	15.5

Number of pieces		1	2	1	2	2		2	3-4		3-4 Asymmetry
Inclination angle		0°	0°	90°	90°	0-45°	45-60°	Asymmetry	0-45°	45-60°	3-4 Asymmetry
ITEM NO.	Thread M	WLL /T
082-1/2	1/2	1.6	3.2	0.8	16	1.12	8	0.8	1.68	1.2	0.8
082-5/8	5/8	2.6	5.2	1.6	3.2	2.24	1.6	1.6	3.36	2.4	1.6
082-3/4	3/4	4	8	2.4	4.8	3.36	24	24	5.04	3.6	2.4
082-7/8	7/8	4.5	9	3	6	4.2	3	3	6.3	4.5	3
082-1	1	7.4	14.8	4	8	5.6	4	4	8.4	6	4
082-1 1/4	1-1/4	9.6	19.2	6.25	12.5	8.75	6.25	6.25	13.13	9.375	6.25
082-1 1/2	1-1/2	11	22	10	20	14	10	10	21	15	10
082-2	2	16	32	16	32	22.4	16	16	33.6	24	16

Number of pieces		1	2	1	2	2		2	3-4		3-4 Asymmetry
Inclination angle		0°	0°	90°	90°	0-45°	45 -60°	Asymmetry	0-45°	45-60°	3-4 Asymmetry
ITEM NO.	Thread M					WLL /T
082-1/2	1/2	1.6	3.2	0.8	16	1.12	8	0.8	1.68	1.2	0.8
082-5/8	5/8	2.6	5.2	1.6	3.2	2.24	1.6	1.6	3.36	2.4	1.6
082-3/4	3/4	4	8	2.4	4.8	3.36	24	24	5.04	3.6	2.4
082-7/8	7/8	4.5	9	3	6	4.2	3	3	6.3	4.5	3
082-1	1	7.4	14.8	4	8	5.6	4	4	8.4	6	4
082-1 1/4	1-1/4	9.6	19.2	6.25	12.5	8.75	6.25	6.25	13.13	9.375	6.25
082-1 1/2	1-1/2	11	22	10	20	14	10	10	21	15	10
082-2	2	16	32	16	32	22.4	16	16	33.6	24	16
