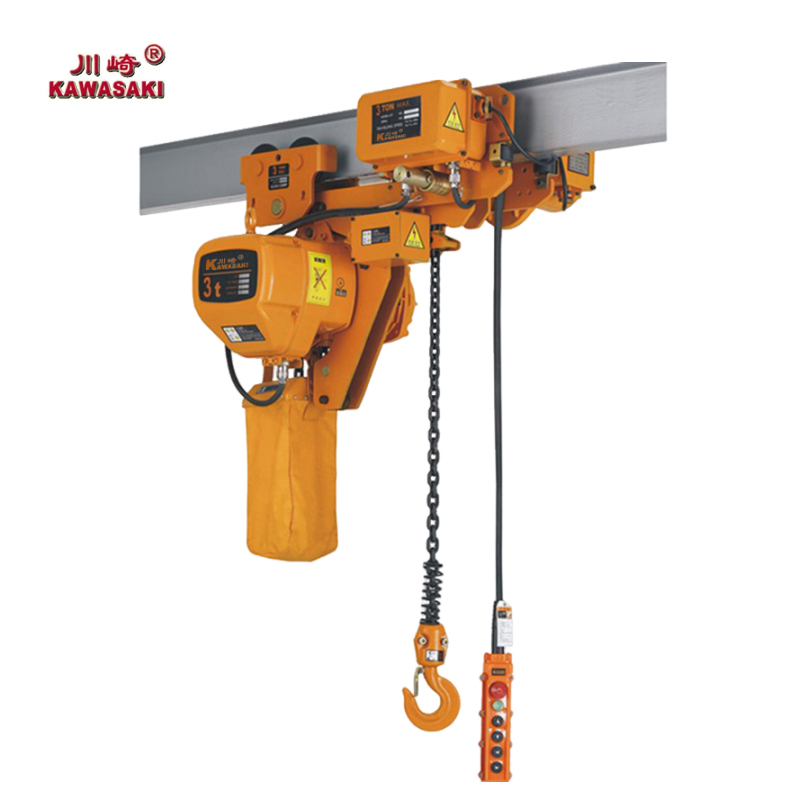

KAWASAKI ULTRA LOW RUNNING ELECTRIC CHAIN HOIST KKBB

Electric hoist
Brand customization: OEM
Function customization: such as explosion-proof, dust-proof, rain-proof, frequency conversion, two-speed, etc.
Appearance customization: Customize the appearance color, logo, etc. of the electric hoist according to the customer’s preferences.
Material customization: customized chain T80 T100
Voltage customization: single phase three phase 110V-575V
Surface treatment customization: According to customer needs, the surface of the electric hoist is treated differently, such as spray painting, electroplating, oxidation, etc. The chain can be customized with galvanized, nickel plated, and blackened.
Packaging customization: Customize the packaging method of electric hoist according to customer needs
Customized minimum order quantity: 50

Supply capacity: 5,000 units of chain hoists a month
500 electric hoists per month

KAWASAKI ULTRA LOW RUNNING ELECTRIC CHAIN HOIST KKBB

Electric hoist
Brand customization: OEM
Function customization: such as explosion-proof, dust-proof, rain-proof, frequency conversion, two-speed, etc.
Appearance customization: Customize the appearance color, logo, etc. of the electric hoist according to the customer’s preferences.
Material customization: customized chain T80 T100
Voltage customization: single phase three phase 110V-575V
Surface treatment customization: According to customer needs, the surface of the electric hoist is treated differently, such as spray painting, electroplating, oxidation, etc. The chain can be customized with galvanized, nickel plated, and blackened.
Packaging customization: Customize the packaging method of electric hoist according to customer needs
Customized minimum order quantity: 50

Supply capacity: 5,000 units of chain hoists a month
500 electric hoists per month

Product details

Product details

>>mechanical braked Dual braking system is safe and reliable
>>Limit switch:
The limit switch device is installed where the weight is lifted on and off to make the motor to
stop automatically so as to prohibit the chains from exceeding for safety
>>Support frame:
The loading support frame consists of two steel plates,which is extremely sturdy
>>Shell: It is made of light aluminum alloy shell, light but hard. The cooling fin is specially designed to ensure quick heat dissipation with the rate up to 40% and continuous service. The integral enclosed structure is applicable to places like
chemical plant and electroplate factor
>>Push button:
Waterproof push button is applied. It is light and durable
>>Hook:
It is hot forging with perfect strength that is hard to break. The operation safety of the
lower hook is ensured by its 360 degree rotation and safety tongue piece
>>Chain:
The chain shall adopt the imported FEC80 ultra heat-treatable aluminum alloy chain. It can be
safely used in poor environments such as rein sea water and chemicals.

Model Capacity (t) Lifting Speed (m/min) Lifting motor
Power(kw) Rotation speed (r/min) Phases Voltage(v) Frequency (Hz/s) I-beam(mm)
KKBB01-01D 1 2.3/6.9 0.6/1.8 930/2830 3 220-440 50/60 68-130
KKBB1.5-01D 1.5 2.9/8.8 1.0/3.0 930/2830 3 220-440 50/60 82-153
KKBB02-01D 2 2.2/6.6 1.0/3.0 930/2830 3 220-440 50/60 82-153
KKBB02-02D 2 1.1/3.3 0.6/1.8 930/2830 3 220-440 50/60 82-153
KKBB2.5-01D 2.5 1.8/5.6 1.0/3.0 930/2830 3 220-440 50/60 82-153
KKBB03-01D 3 1.8/5.6 1.0/3.0 930/2830 3 220-440 50/60 82-153
KKBB03-02D 3 1.5/4.5 1.0/3.0 930/2830 3 220-440 50/60 82-153
KKBB03-03D 3 0.8/2.3 0.6/1.8 930/2830 3 220-440 50/60 82-153
KKBB05-02D 5 0.9/2.8 1.0/3.0 930/2830 3 220-440 50/60 100-178
Model Capacity H A B D E I K L N W U R T Chain
KKBB01-01D 1 650 595 280 300 236 Φ31 Φ42 32 24 207 113 142 231 Φ7.1
KKBB1.5-01D 1.5 770 675 315 430 265 Φ36 Φ49 40 30 237 127 142 231 Φ10.0
KKBB02-01D 2 770 675 315 430 265 Φ36 Φ49 40 30 237 127 142 231 Φ10.0
KKBB02-02D 2 815 595 280 300 236 Φ36 Φ49 40 30 237 127 142 231 Φ7.1
KKBB2.5-01D 2.5 830 675 315 430 265 Φ43 Φ59 48 35 265 140 142 231 Φ11.2
KKBB03-01D 3 830 675 315 430 265 Φ43 Φ59 48 35 265 140 142 231 Φ11.2
KKBB03-02D 3 930 675 315 430 320 Φ43 Φ59 48 35 265 140 142 231 Φ10.0
KKBB03-03D 3 1015 595 280 430 176 Φ43 Φ59 48 35 265 140 142 231 Φ7.1
KKBB05-02D 5 1015 675 315 430 325 Φ54 Φ60 48 43 296 156 142 231 Φ11.2
