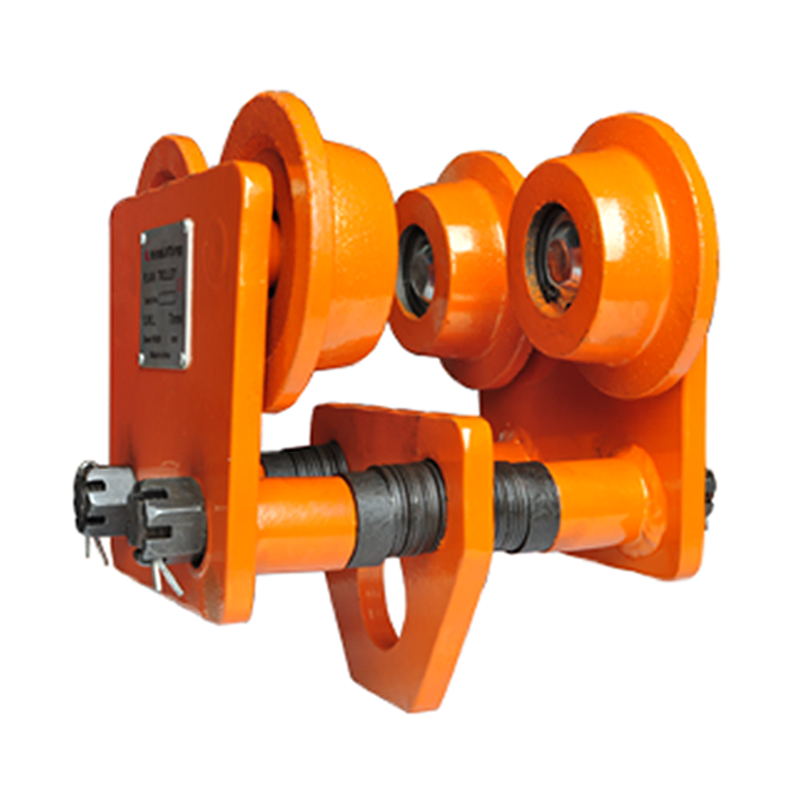

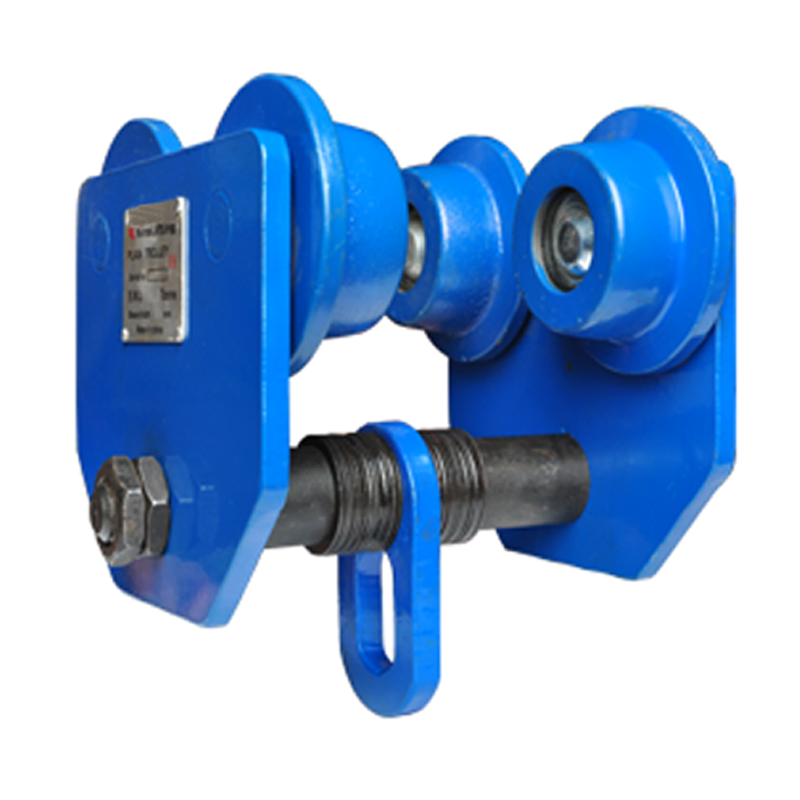

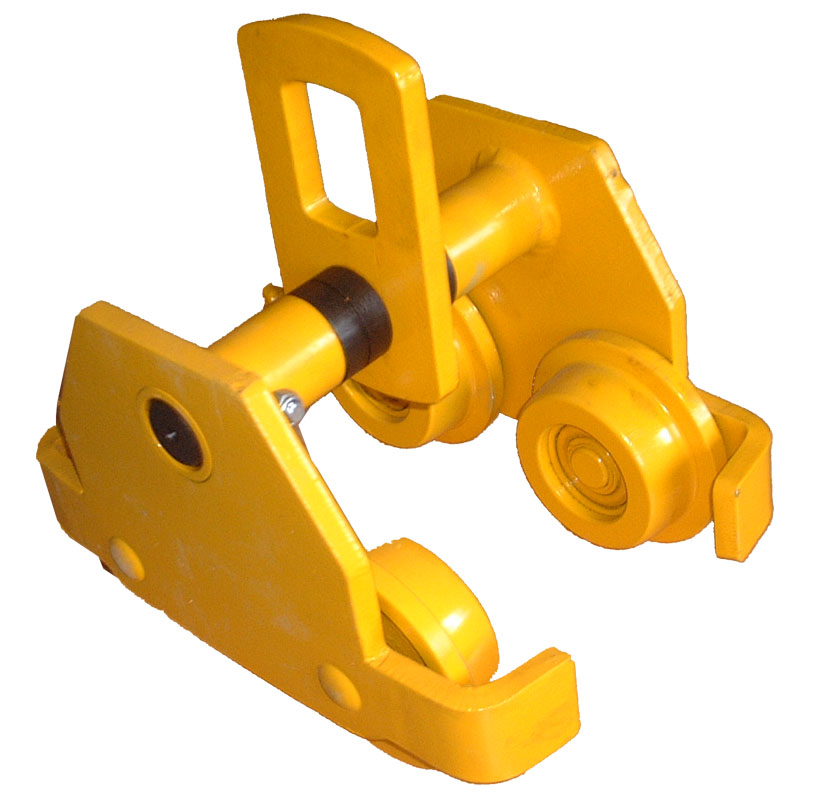

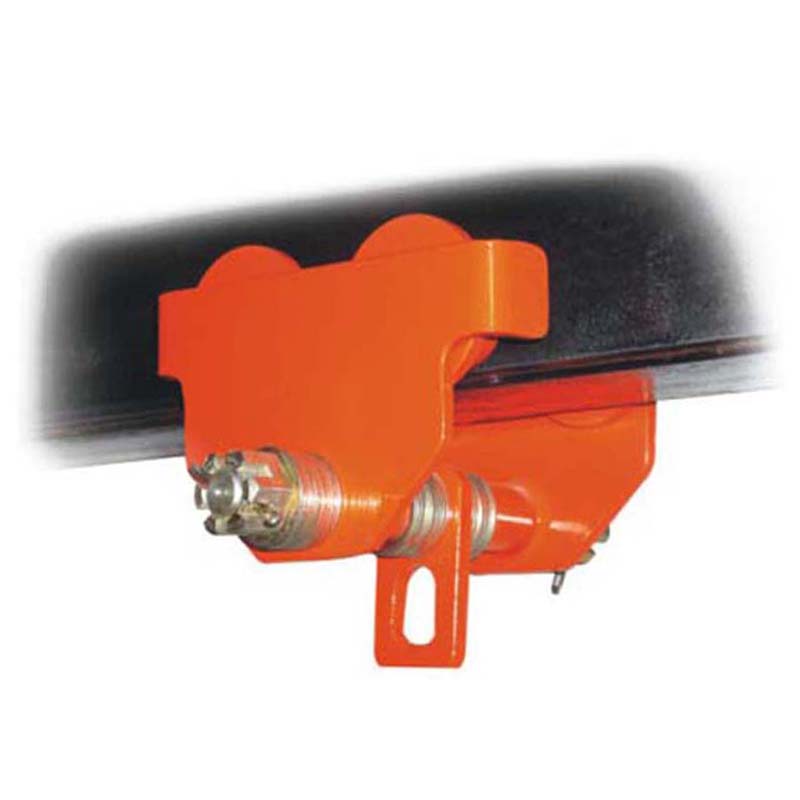

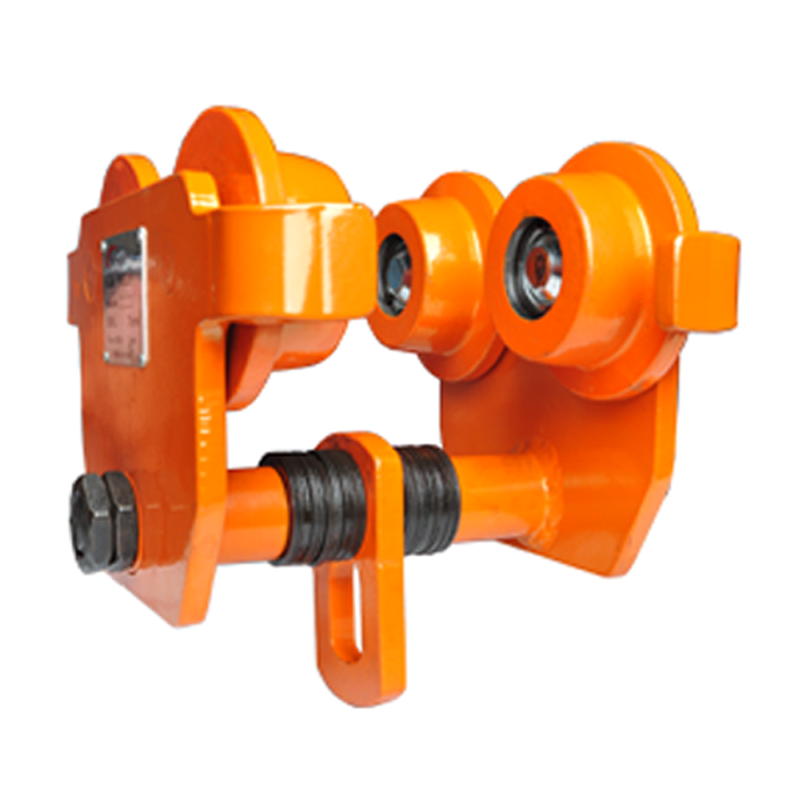

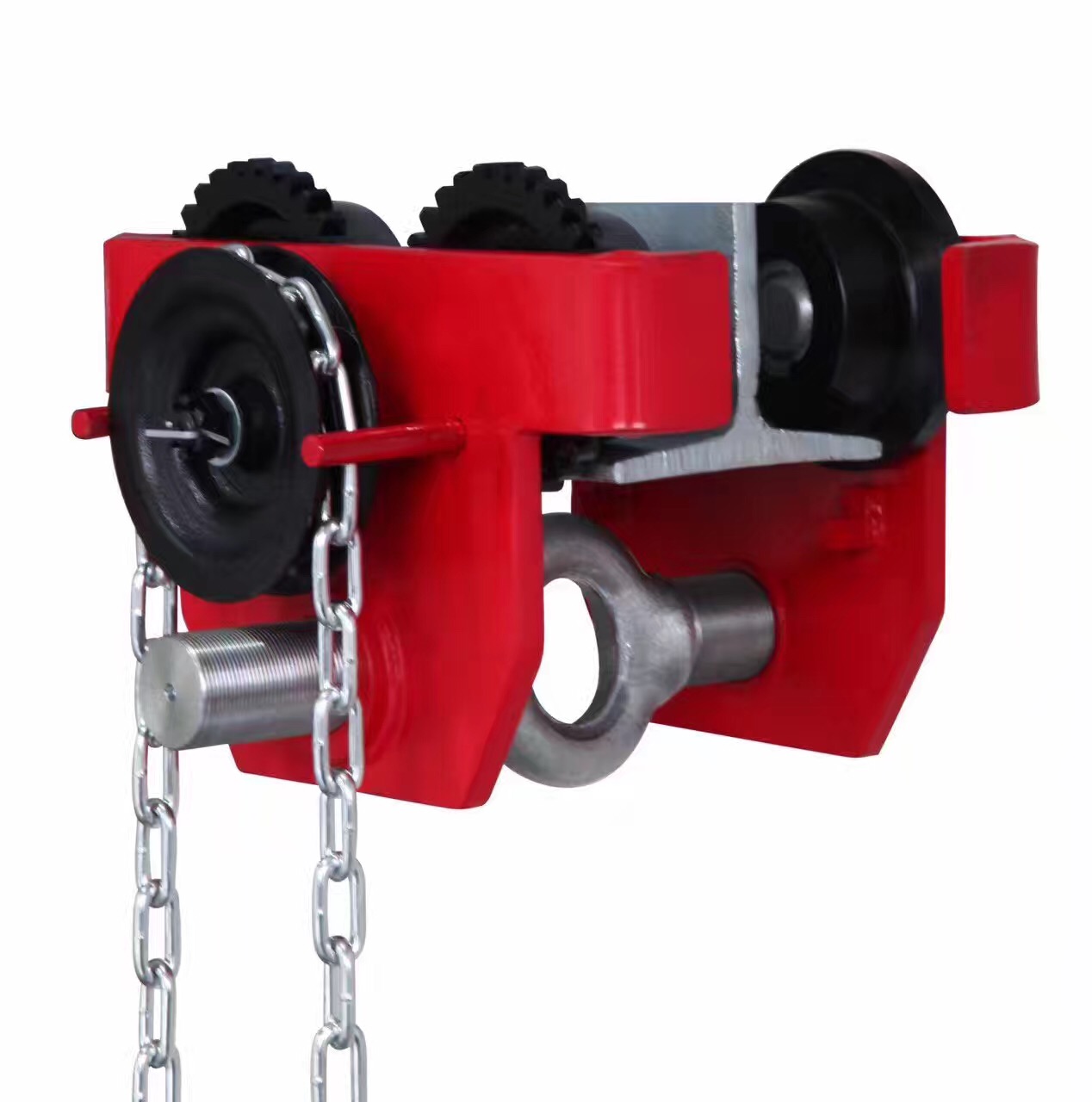

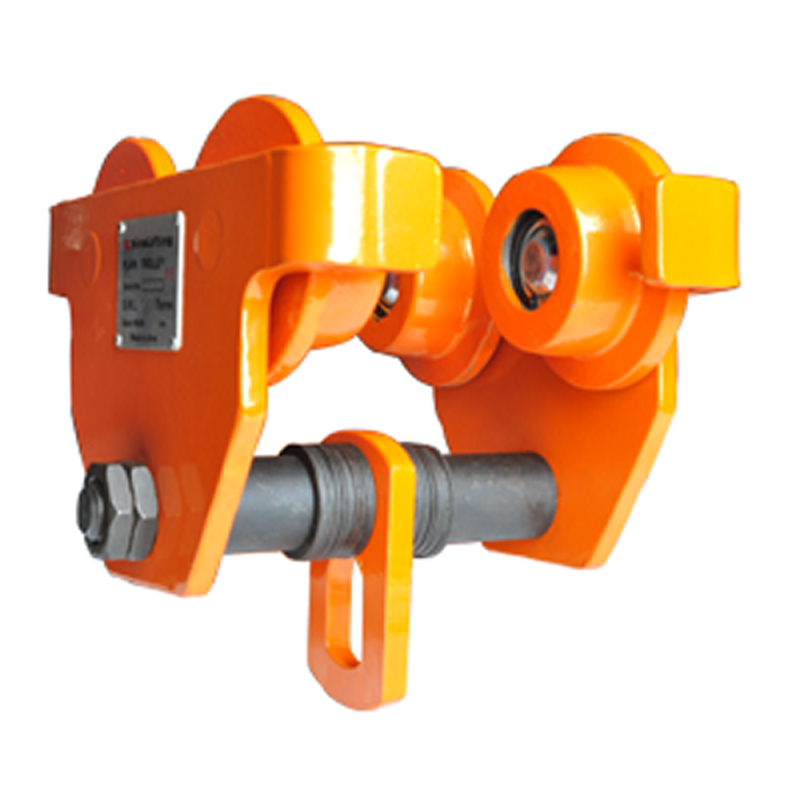

KAWASAKI BEAM TROLLEY GCT

Chat Now

Product details

GCT is widely used in factories, mines, docks, warehouses, construction sites, etc.
GCT is used for installing machinery and equipment, lifting goods, and are particularly suitable for operations in locations without power supply
The trolley is safe to use and easy to maintain.
The single track trolley has a compact structure and small installation size.
The distance adjustment between the wheels of the monorail trolley is convenient and suitable for various I-beams.
The left and right wall panels of the monorail car are hinged together, and under the action of gravity, the height can be adjusted by itself to ensure that the four wheels are evenly stressed.
Trolley has high transmission efficiency and low manual pulling force.
And can drive on curves with smaller turning radii

型号Model		GCT-A0.5	GCT-A1	GCT-A1.5	GCT-A2	GCT-A3	GCT-A5	GCT-A10	GCT-A20
Capacity(t)		0.5	1	1.5	2	3	5	10	20
Runningtestload(kN)		7.35	14.71	22.06	29.42	44.13	61.29	122.58	245.7
Minradiusofcurve(m)		0.8	0.9	1	1	1.2	1.3	2	3.5
Dimensions(mm)	A	186-236	263-303	245-310	260-317	284-333	322-355	525	600
	B1	174	206	219	233	276	302
	B2	194	236	250	268	322	362	424	555
	C	176	208	225	247	295	342	396	498
	H	95	111	121	134	157	185	190	233
	F	1.5-3						2-3.5
I-beamcommended(mm)		50-152	64-203	74-203	88-203	100-203	114-203	124-305	136-305
NetWeight(kg)		5	9	11.5	14	24	37
