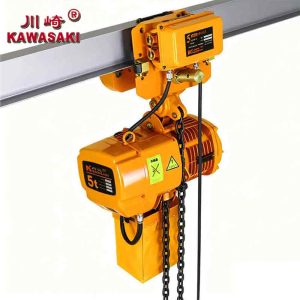

Diagnosing and Fixing Unresponsive Controls and Limit Switch Failures in Electric Hoists

Introduction: The Critical Nature of Hoist Control and Safety

In the high-stakes environments of modern industry—whether a bustling warehouse, a demanding mining operation, or a precision machine shop—the overhead lifting equipment is the circulatory system of productivity. When an electric chain hoist or wire rope hoist becomes unresponsive to its controls, or when it ignores its mechanical limits and crashes into its end stops, productivity doesn’t just slow down; it stops entirely. More critically, safety is immediately compromised.

As leading electric hoist suppliers and hoist manufacturers and suppliers, Hangzhou Apollo Lifting Equipment Co., Ltd. understands that downtime is your greatest enemy and safety is your highest priority. Two of the most common yet misunderstood issues we encounter in the field are control button malfunctions and limit switch  failures. These problems can stem from simple wear and tear to complex electrical faults.

This guide provides a systematic, professional approach to diagnosing and resolving these specific issues. We will move beyond generic advice to offer a deep dive into the root causes, troubleshooting methodologies, and best practices for maintenance, helping your team restore safe, reliable heavy lifting solutions with confidence.

Part 1: Understanding the Anatomy of the Problem

Before reaching for a multimeter or a screwdriver, it is crucial to understand the “why” behind the symptom. This foundational knowledge separates guesswork from effective diagnosis.

1.1 The Unresponsive Control Button (The “Dead Man’s” Handle)

When you press the “Up” button and nothing happens, the fault lies somewhere in the command chain. This chain begins with your finger and ends with the motor’s contactor.

• The Pendant Station: The handheld device is the most abused component in any lifting system. It is dragged, dropped, and exposed to dust, moisture, and chemicals. Internally, the issue is often physical wear of the momentary contact switches or broken conductors within the pendant’s connecting cable.

• The Control Circuit: The signal from the pendant travels through the cable to the hoist’s control panel. Here, the issue could be a blown fuse in the control circuit transformer, a tripped overload relay, or a failed contactor coil that refuses to pull in.

• The Motor and Brake: If the control circuit is working (you hear the contactor click), but the motor doesn’t move, the problem could be a seized motor, a failed brake that won’t release, or a blown motor phase.

1.2 The Limit Switch That Doesn’t Limit

Limit switches are your hoist’s most critical mechanical safety devices. They are designed to prevent the load block from over-traveling and damaging the hoist, wire rope, or surrounding structure. When they fail, the consequences can be catastrophic.

• Mechanical Failure: The most common cause for wire rope hoist suppliers to see is a direct mechanical break. The lever arm on the switch can be bent by an errant load, or the internal spring mechanism can corrode and seize.

• Mis-adjustment: In hoists with a multi-turn limit switch (a worm-driven mechanism that counts rotations of the drum), the switch must be precisely set for the length of rope. If it is set for too much travel, the block will hit the housing before the switch activates.

• Electrical Failure: Like the push button, the limit switch contains electrical contacts. These contacts can weld shut due to arcing, or they can become oxidized and fail to close the circuit, making the hoist unable to move in the “down” direction if the upper limit is stuck.

Part 2: Systematic Diagnosis: A Step-by-Step Guide

Armed with an understanding of potential failure points, we can now apply a logical, safety-first diagnostic process.

Safety Protocol:

1. Lockout/Tagout (LOTO): Before any inspection or testing, de-energize the hoist. Isolate the main power supply and apply a personal lock.

2. Visual Inspection: Before touching anything, look. Check for obvious damage to the pendant, cable, and limit switch assembly.

Phase 1: Diagnosing the Unresponsive Pendant

1. The Obvious Check: Inspect the emergency stop button. Is it pushed in? If so, twist to release. Check the main disconnect switch.

2. The “Click” Test: Re-energize the hoist. Press the “Up” button and listen carefully. Do you hear a distinct “clunk” from the hoist’s control panel?

   • If YES (you hear a click): The control circuit and contactor are working. The problem is likely in the power circuit—a tripped motor overload, a failed motor brake, or a blown main line fuse. Check the power supply to the motor terminals.

   • If NO (you don’t hear a click): The fault is in the control circuit. This is where the pendant diagnosis begins.

3. Isolate the Pendant: The most efficient test for a suspected faulty pendant is to bypass it temporarily (if a test pendant is available) or to test for continuity.

   • Using a Multimeter: Disconnect the pendant from the hoist’s control board. Refer to the wiring diagram. Use the continuity setting on your multimeter to test each function switch. Place the probes on the common wire and the function wire (e.g., “Up”) for that button. When you press the button, the meter should beep/show near-zero resistance. If it doesn’t, the button or its internal wiring is faulty.

4. Check the Pendant Cable: While performing the continuity test, wiggle the cable near the strain relief of the pendant and where it enters the hoist. A break in a conductor will cause the continuity to come and go. This is a classic sign of a broken wire inside the insulation.

Phase 2: Diagnosing the Limit Switch

Note: This procedure requires the hoist to be powered, so extreme caution is necessary. Follow all LOTO procedures when connecting/disconnecting components.

1. Visual & Mechanical Check: Examine the physical switch. For a lever-arm style switch, gently actuate the arm by hand. You should feel a distinct “click” and it should spring back. If it is loose, stuck, or bent, replacement is necessary. For a Geared Limit Switch, ensure the drive gear from the drum is engaging properly and hasn’t stripped.

2. Electrical Continuity Check (De-energized):

   • Disconnect the two wires leading to the limit switch.

   • Set your multimeter to continuity.

   • Place the probes on the two terminals of the limit switch.

   • For a Normally Closed (NC) limit switch (most common for “Up” limits), the meter should show continuity when the switch is in its normal, un-actuated state.

   • Manually actuate the switch. The continuity should break (open circuit).

   • If the switch shows no continuity in its normal state, or if actuating it doesn’t break continuity, the switch is faulty.

3. The “Jumping” Test (For Skilled Professionals Only – To Verify Wiring):

   • With the hoist de-energized and LOTO applied, temporarily and carefully bypass the limit switch terminals in the control panel using a piece of wire (jumper).

   • Remove LOTO, stand clear, and attempt to run the hoist in the direction that was being blocked (e.g., “Up”).

   • If the hoist now runs: The limit switch itself is faulty, or there is a wiring issue to the switch.

   • If the hoist still does not run: The problem is elsewhere in the control circuit (e.g., a faulty relay, wire break in the panel).

   • CRITICAL: Remove the jumper wire immediately after the test. Never operate a hoist with a safety limit switch bypassed for anything other than this momentary diagnostic test.

Part 3: Repair and Remediation: From Diagnosis to Solution

Once you have isolated the faulty component, the path to repair is clear. As experienced chain hoist manufacturers, we advocate for precision over patching.

• For Faulty Pendants: Repair is rarely cost-effective or safe. The constant flexing and environmental exposure mean that if one button has failed, others are likely near the end of their life. Recommendation: Replace the entire pendant station with a high-quality, IP-rated (Ingress Protection) unit. Ensure the replacement is mechanically and electrically compatible with your hoist’s control voltage.

• For Broken Pendant Cables: In some industrial-grade hoists, the cable is a separate, replaceable component. This is a viable repair. However, if the cable is molded into the pendant, the entire assembly must be replaced.

• For Failed Limit Switches: Always replace with an OEM or manufacturer-recommended part. The actuation force and electrical ratings are critical for safety. A “universal” switch from a hardware store may not be rated for the control voltage or the mechanical stresses of a vibrating electric hoist for mining operations.

• For Mis-adjusted Geared Limit Switches:

  1. Run the hoist (slowly and carefully) to bring the hook to the desired highest point of travel, leaving a safe distance from the hoist body.

  2. Refer to the hoist’s manual for the specific adjustment procedure. Typically, this involves turning a setscrew on the limit switch gear until you hear it “click” into the tripped position.

  3. Run the hoist down. The switch should reset automatically.

  4. Test the function by running the hoist up slowly to ensure it stops at the new set point.

Part 4: Prevention and Best Practice: The Apollo Approach

At Hangzhou Apollo Lifting Equipment Co., Ltd., we don’t just manufacture equipment; we engineer reliability. Moving from reactive repair to proactive management is the hallmark of a world-class operation.

1. Implement a Scheduled Inspection Regime:
The top hoist manufacturers know that regular inspection is non-negotiable.

• Daily: Operators should perform a visual check of the pendant, cable, and hook before first use. Test all functions, including the limit switch, without a load.

• Monthly/Quarterly: A more thorough inspection by a qualified technician should include checking the pendant strain relief, verifying the tension of all cable connections in the control panel, and functionally testing the limit switches under no-load conditions.

2. Environmental Protection is Key:
Harsh environments kill electrical components.

• For dusty environments like cement plants or grain mills, ensure your pendant has a high IP rating and that all control panel entries are sealed with proper cable glands.

• For wet or washdown environments, consider pendants with membrane keypads instead of mechanical buttons, and ensure the hoist itself has a suitable ingress protection rating. As specialized crane hoist manufacturers, we can advise on the correct enclosure ratings.

3. Operator Training:
The most sophisticated heavy lifting hoist suppliers can attest that human error causes the majority of failures. Train operators to:

• Never “slack” the wire rope and jerk the load, which can snap limit switch mechanisms.

• Avoid using the pendant as a dragging tool.

• Handle the pendant with care and store it properly when not in use.

4. Choose Quality Components from the Start:
Ultimately, the reliability of your system is determined by the quality of its components. When sourcing new equipment or replacement parts, partnering with reputable electric hoist manufacturers like Hangzhou Apollo ensures that your wire rope hoist suppliers provide components built to withstand the rigors of industrial life. Our commitment to stringent quality control means that every pendant, every contactor, and every limit switch is tested to perform under pressure.

Part 5: The Future of Hoist Control: Smart Monitoring

As a forward-thinking industrial crane manufacturers, we are witnessing a shift in the industry. The future of troubleshooting issues like unresponsive controls and limit switch failures lies in predictive analytics.

Modern electric chain hoist suppliers are beginning to integrate smart technology directly into the hoist. Imagine a system where the control pendant itself communicates its health status to a central maintenance computer. Where the limit switch doesn’t just trip, but reports its cycle count and warns of impending mechanical wear.

This evolution towards the Industrial Internet of Things (IIoT) means that the days of reactive troubleshooting are numbered. Instead of waiting for a button to fail, facility managers will receive an alert: “Pendant Function ‘Up’ has increased resistance. Schedule maintenance within 30 days.” This is the next frontier in heavy lifting solutions, minimizing downtime and maximizing safety through intelligent design.

Conclusion: Partnering for Performance

Diagnosing and repairing control and limit switch issues doesn’t have to be a mystery. By applying a systematic approach—from understanding the control circuit to using a multimeter for continuity checks—your team can quickly restore functionality and safety to your overhead lifting operations.

However, the most effective strategy is a preventative one, built on a foundation of high-quality equipment and rigorous maintenance. Whether you require a robust electric chain hoist for a demanding application, a specialized industrial hand winch for manual control, or a complete overhead crane system, the expertise of your supplier matters.

At Hangzhou Apollo Lifting Equipment Co., Ltd., we bring decades of manufacturing excellence and global service experience to every project. We don’t just provide equipment; we provide peace of mind. By choosing us as your partner, you are investing in crane hoist manufacturers dedicated to your uptime, your safety, and your operational success.

Contact Hangzhou Apollo Lifting Equipment Co., Ltd. today to discuss your heavy lifting needs or to schedule a consultation on optimizing your maintenance programs.
