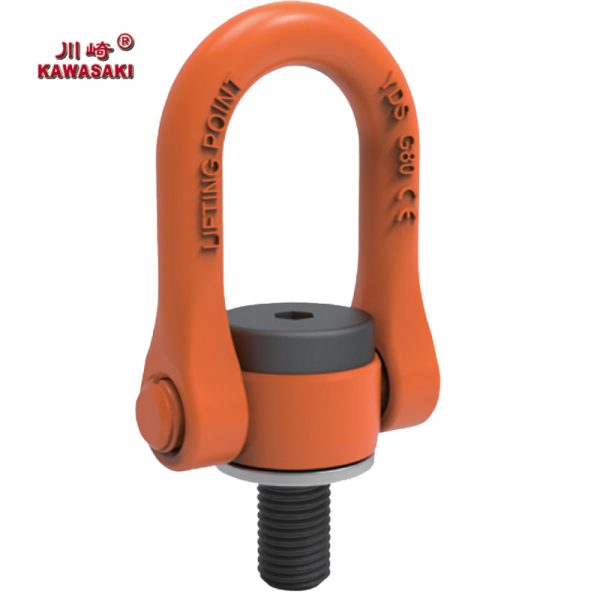

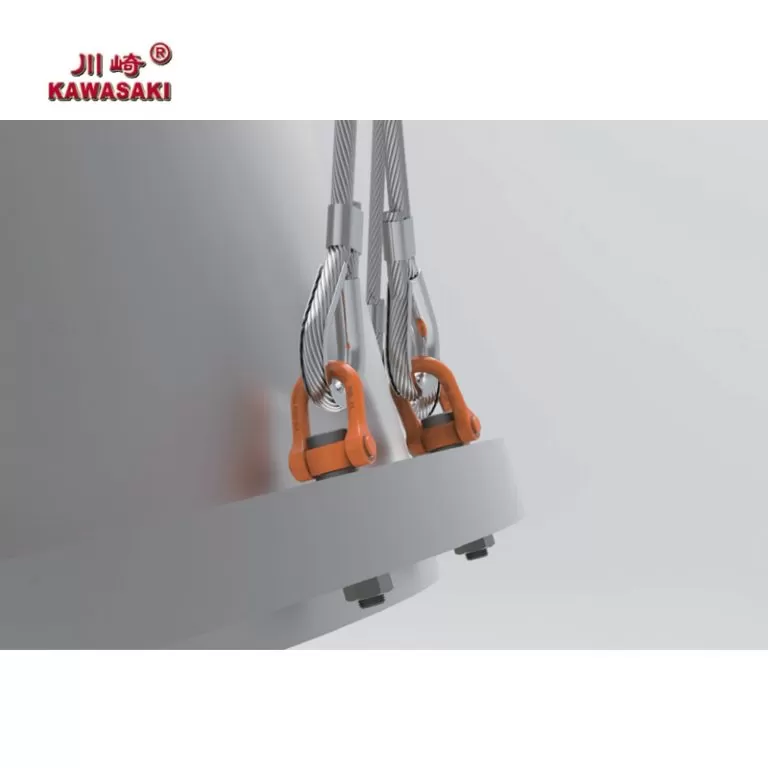

KAWASAKI SWIVEL HOIST RINGS YDS

KAWASAKI SWIVEL HOIST RINGS YDS

Product details

Product details

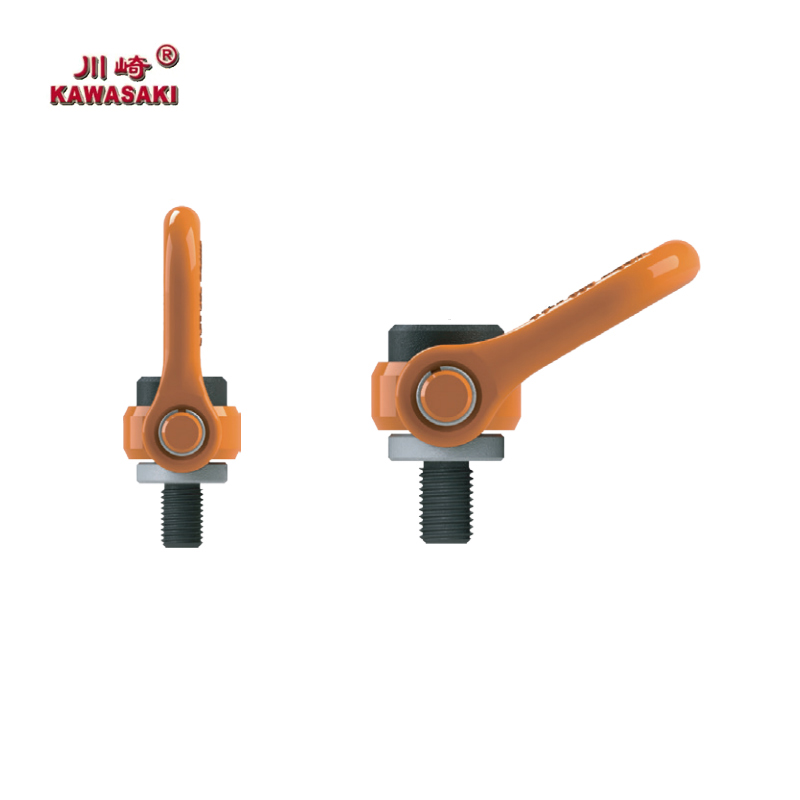

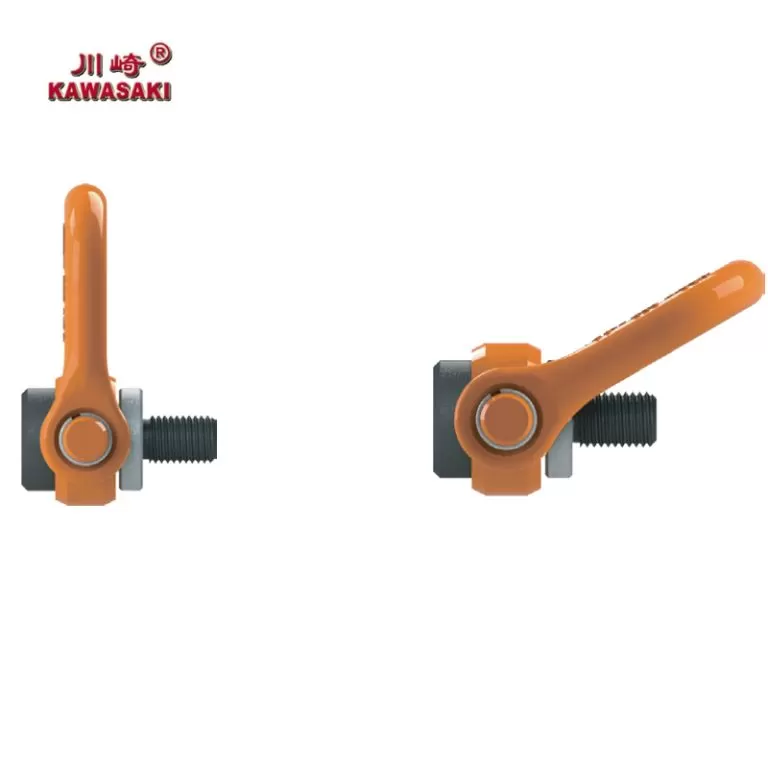

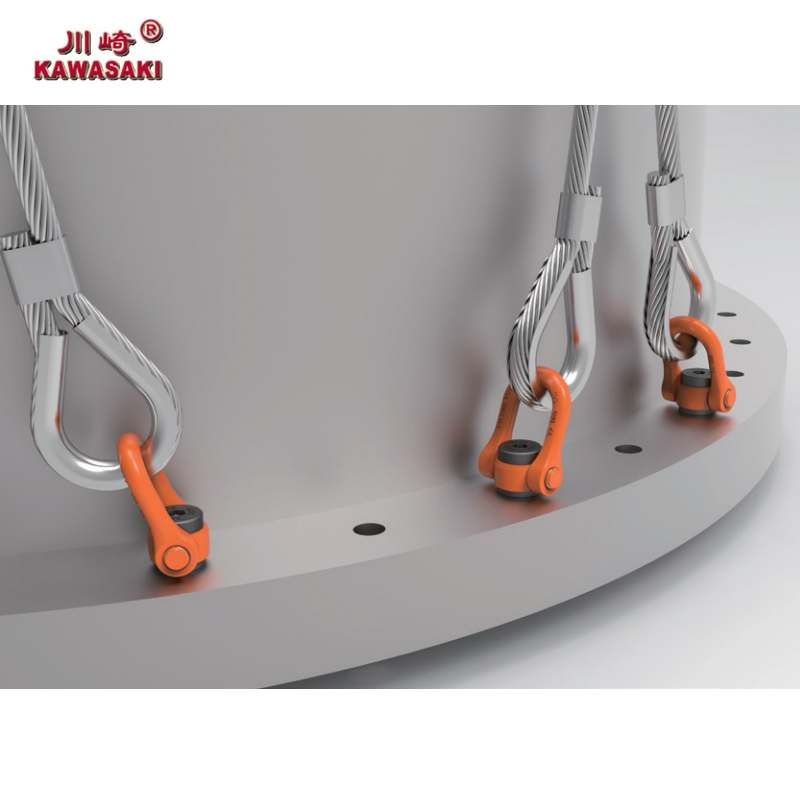

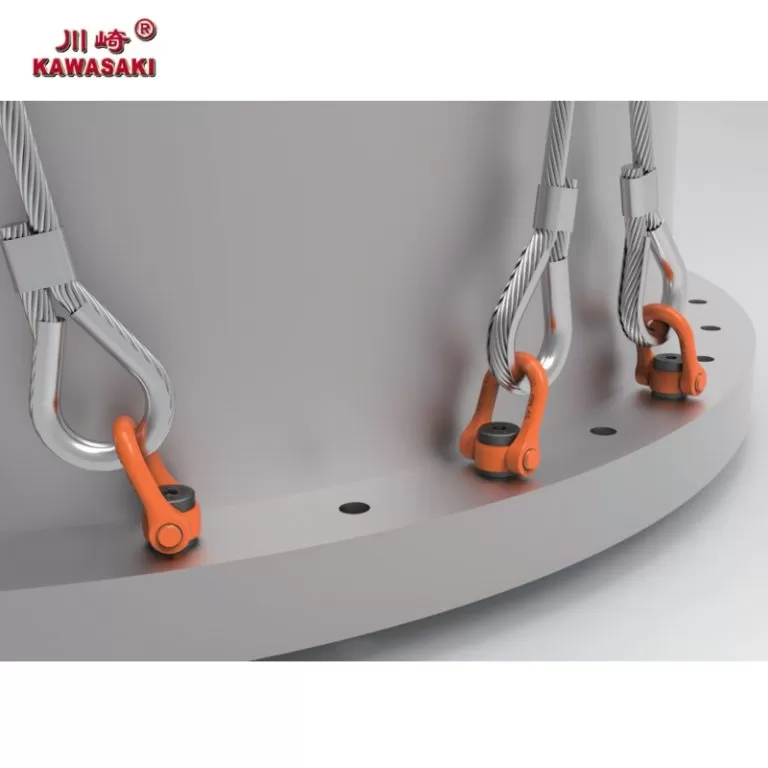

  • 360°Rotated 180° Pivot

The lifting ring body can rotate in the direction of force to adjust the angle of force.

  • 4:1 Safety Factor

The link ring can automatically adjust the force angle with the stretching direction.Working tensile is the same in any direction, safety factor is 4:1.

  • Complete Specifications

Different kinds of thread are available,wide range of WLL load(M8-M100,0.5T-50T);the available thread including:Metric thread, Metric fine thread,UNc thread,UNF thread, Bsw thread and so on.

  • High Strength

Lifting points are made of alloy steel precision forging, with a tensile strength greater than 1080Mpa after quenching and tempering. The rotating base adopts an integrated design,forged as a whole, and has high strength.

  • Go/No Go Gauge Inspection

After passing the inspection with a 6g go/no go gauge, it is suitable for precision threaded holes.

ITEM NO. WLL/T Thread M Dimensions / mm Nm Weight Kg
E A±3  B±3 C D F K±3 H C
YDS-M8 0.5 M 8× 1.25 12 50.5 37 76 14 101.5 49.5 38 8 10-40 0.8
YDS-M10 0.7 M10×1.5 16 50.5 37 76 14 101.5 49.5 38 8 10-40 0.8
YDS-M12 1 M12× 1.75 18 50.5 37 76 14 101.5 49.5 38 8 15-40 0.8
YDS-M14 1.5 M14×2.0 21 50.5 37 76 14 101.5 49.5 38 8 30-100 0.8
YDS-M16 2 M16×2.0 24 50.5 37 76 14 101.5 49.5 38 8 45-130 0.8
YDS-M18 2.5 M18×2.5 40 74.5 54 105 20 145 77 48 12 100-170 1.9
YDS-M20 3 M20× 2.5 40 74.5 54 105 20 145 77 48 12 100-170 2
YDS-M22 3 M22 × 2.5 40 74.5 54 105 20 145 77 48 12 100-170 2.1
YDS-M24 4.5 M24 × 3.0 40 74.5 54 105 20 145 77 48 12 190-280 2.5
YDS-M27 5 M27× 3.0 40 96.5 73 146 30 201.5 103.5 68 17 250-500 5.5
YDS-M30 7.3 M30 * 3.5 45 98.5 73 146 30 201.5 103.5 68 17 270-600 5.5
YDS-M33 8 M33× 3.5 5O 98.5 73 146 30 201.5 103.5 68 17 270-600 5.5
YDS-M36 10 M36 × 4.0 54 98.5 73 146 30 201.5 103.5 68 17 270-600 5.5
YDS-M39 10 M39 × 4.0 58 98.5 73 146 30 201.5 103.5 68 17 350-800 6
YDS-M42 12.5 M42 * 4.5 63 98.5 73 146 30 201.5 103.5 68 17 350-800 6
YDS-M45 15 M45×4.5 63 98.5 73 146 30 201.5 103.5 68 17 350-800 6
YDS-M48S 16 M48 × 5.0 63 96.5 73 146 30 201.5 101.5 70 17 350-800 6.5
YDS-M48B 20 M48×5.0 68 120 93 182 36 249 125 84 19 350-800 11.5
YDS-M52 20 M52 × 5.0 68 120 93 182 36 249 125 84 19 350-900 12
YDS-M56 25 M56 × 5.5 78 120 93 182 36 249 125 84 19 350-900 12
YDS-M60 25 M60×5.5 90 120 93 182 36 253 125 88 19 350-600 13
YDS-M64S 32 M64×6.0 90 120 93 182 36 253 125 88 19 500-1000 13
YDS-M64B 33 M64x6.0 100 185 144 280 58 395 195 136 36 500-1000 42
YDS-M72×4 35 M72×4.0 110 185 144 280 58 395 195 136 36 500-1200 43
YDS-M72×6 35 M72×6.0 110 185 144 280 58 395 195 136 36 500-1200 43
YDS-M80 40 MB0 × 6.0 120 185 144 280 58 395 195 136 36 500-1200 44.5 44.5
YDS-M90 45 M90× 6.0 135 185 144 280 58 395 195 136 36 500-1500 46.5
YDS -M100 50 M100×6.0 150 185 144 280 58 395 195 136 36 500-1700 49
Number of pieces 1 2 1 2 2 2
Inclination angle 90° 90° 0-45° 45-60° Asymmetry 0-45° 45-60° Asymmetry
ITEM NO. Thread M WLL /T
YDS-M8 8 0.5 1 0.5 1 0.7 0.5 0.5 1.1 0.8 0.5
YDS-M10 10 0.7 1.4 0.7 1.4 1 0.7 0.7 1.5 1.1 0.7
YDS-M12 12 1 2 1 2 1.4 1 1 2.1 1.5 1
YDS -M14 14 1.5 3 1.5 3 2.1 1.5 1.5 3.15 2.3 1.5
YDS-M16 16 2 4 2 4 2.8 2 2 4.2 3 2
YDS-M18 18 2.5 5 2.5 5 3.5 2.5 2.5 5.25 3.75 2.5
YDS-M20 20 3 6 3 6 4.2 3 3 6.3 4.5 3
YDS-M22 22 3 6 3 6 4.2 3 3 6.3 4.5 3
YDS-M24 24 4.5 9 4.5 9 6.3 4.5 4.5 9.45 6.8 4.5
YDS-M27 27 5 10 5 10 7 5 5 10.5 7.5 5
YDS-M30 30 7.3 14.6 7.3 14.6 10.2 7.3 7.3 15.3 11 7.3
YDS-M33 33 8 16 8 16 11.2 8 8 16.8 12 8
YDS-M36 36 10 20 10 20 14 10 10 21 15 10
YDS-M39 39 10 20 10 20 14 10 10 21 15 10
YDS-M42 42 12.5 25 12.5 25 17.5 12.5 12.5 26 3 18.8 12.5
YDS-M45 45 15 30 15 30 21 15 15 31.5 22.5 15
YDS-M48S 48 16 32 16 32 22.4 16 16 33.5 24 16
YDS-M48B 48 20 40 20 40 28 20 20 42 30 20
YDS-M52 52 20 40 20 40 28 20 20 42 30 20
YDS-M56 56 25 5O 25 50 35 25 25 53 37.5 25
YDS-M60 60 25 50 25 50 35 25 25 52.5 37.5 25
YDS-M64S 64 32 64 32 64 45 32 32 67 48 32
YDS -M64B 64 33 66 33 66 46.2 33 33 69.3 49.5 33
YDS-M72X4 72 35 70 35 70 49 35 35 73.5 52.5 35
YDS-M72X6 72 35 70 35 70 49 35 35 73.5 52.5 35
YDS-M80 80 40 80 40 80 56 40 40 84 60 40
YDS-M90 90 45 90 45 90 63 45 45 94.5 67.5 45
YDS-M100 100 50 100 50 100 70 50 50 105 75 50
ITEM NO. WLL/T Thread Dimensions / mm Nm Weight Kg
M TPI E A±3 B±3 C D F K±3 H C
YDS-3/8 0.7 3/8 16 16 50.5 37 76 14 101.5 49.5 38 8 10-40 0.8
YDS-1/2 1.5 1/2 13 21 50.5 37 76 14 101.5 49.5 38 8 15-40 0.8
YDS-5/8 2 5/8 11 24 50.5 37 76 14 101.5 49.5 38 8 45-130 0.8
YDS-3/4 3 3/4 10 40 74.5 54 105 20 145 77 48 12 45-130 2
YDS-7/8 3 7/8 9 40 74.5 54 105 20 145 77 48 12 100-170 2.1
YDS- 1 4.5 1 8 40 74.5 54 105 20 145 77 48 12 190-280 2.5
YDS- 1- 1/4 8 1-1/4 7 45 96.5 73 146 30 201.5 103.5 68 17 270-600 5.5
YDS-1-1/2 10 1-1/2 6 54 98.5 73 146 30 201.5 103.5 68 17 270·600 5.5
YDS-1-3/4 15 1-3/4 5 63 96.5 73 146 30 201.5 103.5 68 17 350-800 6
YDS-2 20 2 4.5 68 120 93 182 36 249 125 84 19 350-800 12
YDS-2-1/4 25 2-1/4 45 78 120 93 182 36 249 125 84 19 350-900 12
YDS-2-1/2 32 2-1/2 4 90 120 93 182 36 253 125 88 19 500-1400 13
YDS-2-3/4 33 2-3/4 4 110 185 144 280 58 395 195 136 36 500- 1400 42.5
YDS-3 35 3-4 4 120 185 144 280 58 395 195 136 36 7000 43.5
Number of pieces 1 2 1 2 2 3-4 3-4 Asymmetry
Inclination angle 90° 90° 0-45° 45-60° Asymmetry 0-45° 45-60° Asymmetry
ITEM NO. Thread M WLL /T
YDS-3/8 3/8 0.7 1.4 0.7 1.4 1 0.7 0.7 1.5 1.1 0.7
YDS-1/2 1/2 1.5 3 1.5 3 2.1 1.5 1.5 3.15 2.3 1.5
YDS-5/8 5/8 2 4 2 4 2.8 2 2 4.2 3 2
YDS-3/4 3/4 3 6 3 6 4.2 3 3 6.3 4.5 3
YDS-7/8 7/8 3 6 3 6 4.2 3 3 63 4.5 3
YDS-1 1 4.5 9 4.5 9 6.3 4.5 4.5 9.45 6.8 4.5
YDS-1-1/4 1-1/4 8 16 8 16 11.2 8 8 16.8 12 8
YDS-1-1/2 1-1/2 10 20 10 20 14 10 10 21 15 10
YDS-1-3/4 1-3/4 15 30 15 30 21 15 15 31.5 22.5 15
YDS-2 2 20 40 20 40 28 20 20 42 30 20
YDS-2-1/4 2-1/4 25 50 25 50 35 25 25 53 37.5 25
YDS-2-1/2 2-1/2 32 64 32 64 45 32 32 67 48 32
YDS -2-3/4 2-3/4 33 66 33 66 46.2 33 33 69.3 49.5 33
YDS-3 3 35 70 35 70 49 35 35 73.5 52.5 35
